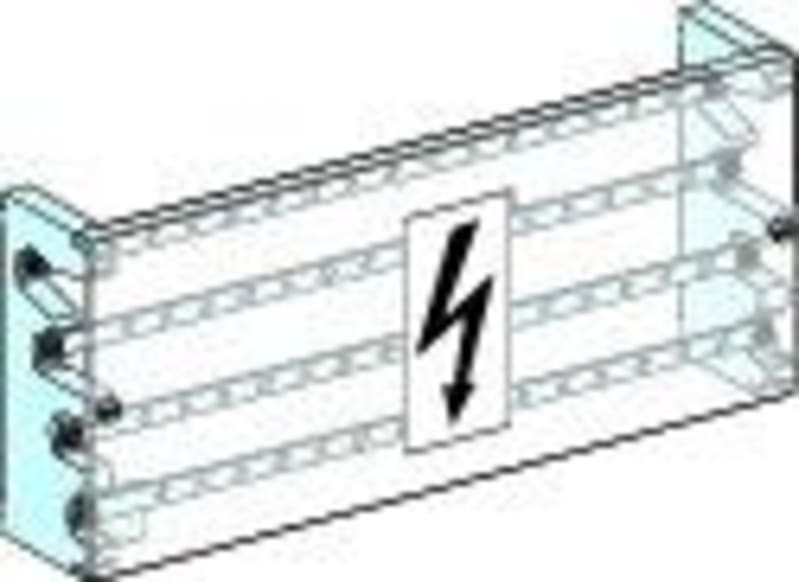

Busbar Linergy BS 250 A G/P
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric LVS04053 — LINERGY BS 4P MULTISTAGE BB 250A 52HOLES.
Technical Specifications
- Manufacturer part number (MPN)
- LVS04053
- EAN / GTIN
- 3606481870926
- Sales unit
- pcs
- Rated current
- 250 A
- Range
- Linergy
- Range of product
- Linergy
- Product or component type
- Multi-stage distribution block
- Product name
- Linergy BS
- Range compatibility
- PrismaSeT PrismaSeT G enclosure; PrismaSeT PrismaSeT P enclosure
- Product compatibility
- Spacial enclosures
- IP degree of protection
- IPxx B
- Mounting support
- Plain backplate; Prisma upright
- mounting mode
- Horizontal; Vertical
- Poles description
- 4P
- [Ue] rated operational voltage
- 440 V AC
- [Ui] rated insulation voltage
- 750 V AC
- [Uimp] rated impulse withstand voltage
- 8 kV
- [Ie] rated operational current
- 250 A
- [In] rated current
- 250 A at 40 °C
- [Icw] rated short-time withstand current
- 13 kA for 1 s
- [Ipk] rated peak withstand current
- 30 kA
- I²t on activation
- 169000000 A².s
- Busbar cross section
- 20 x 5 mm
- Connections - terminals
- Supply: crimped lug50 mm²; Supply: flexible bars, 20 x 3 mm; Distribution: M6 holes (phase) , 13 x 16…50 mm²
- Height
- 235 mm
- Width
- 470 mm
- Depth
- 115 mm
- Product weight
- 3.2 kg
- Standards
- IEC 61439-1, inside enclosure; IEC 61439-2, inside enclosure
- Product certifications
- ASTA
- Unit Type of Package 1
- PCE
- Number of Units in Package 1
- 1
- Package 1 Height
- 16.000 cm
- Package 1 Width
- 26.000 cm
- Package 1 Length
- 55.000 cm
- Package 1 Weight
- 3.042 kg
- Unit Type of Package 2
- P12
- Number of Units in Package 2
- 30
- Package 2 Height
- 92.000 cm
- Package 2 Width
- 80.000 cm
- Package 2 Length
- 120.000 cm
- Package 2 Weight
- 105.260 kg
- Country of origin
- FR
- Warranty (in months)
- 18
- Nominal current
- 250 A
- Mounting method
- Screw
- Connection type
- Screwing
- Number of poles
- 4
- Contact safe
- Yes
- Suitable for fine strand conductors
- No
- Suitable for solid conductors
- No
- Suitable for stranded conductors
- No
- Suitable for fine strand conductors without cable end sleeve
- No
- Suitable for extra fine-strand conductors
- No
