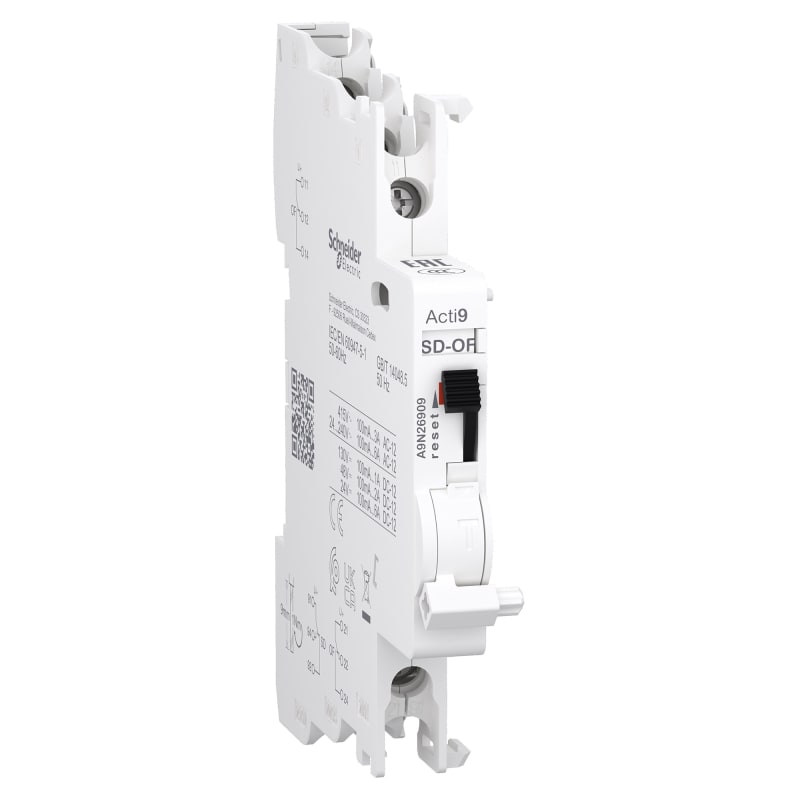

Schneider Electric Auxiliary contact, ACTI9 A9N, OF/SD+OF, 2 C/O, 100MA to 6A, 24VAC to 415VAC, 24VDC to 130VDC, top and bottom connection A9N26909

Schneider Electric A9N26909 — Auxiliary contact, Acti9 A9N, OF/SD+OF, 2 C/O, 100mA to 6A, 24VAC to 415VAC, 24VDC to 130VDC, top and bottom connection.

Manufacturer part number (MPN)

A9N26909

EAN / GTIN

3606486351796

Sales unit

pcs

Package quantity

12 pcs

range of product

Acti9

Product or component type

Double OC or fault contact

Device short name

OF and OF or OF and SD

Signal contacts composition

2 C/O

[In] rated current

0.1…6 A at 24...250 V, AC 50/60 Hz; 0.1…6 A at 24...240 V, AC 50/60 Hz; 0.1…3 A at 415 V, AC 50/60 Hz; 0.1…6 A at 24 V, DC; 0.1…2 A at 48 V, DC; 0.1…1.5 A at 60 V, DC; 0.1…1 A at 130 V, DC

9 mm pitches

1

Standards

EN/IEC 60947-5-1; GB/T 14048.5

Product certifications

CE; UKCA

Quality labels

EAC; CCC

Range compatibility

Acti9 C120; Acti9 C60H-DC; Acti9 SW60-DC; Acti9 C60PV-DC; Acti9 xC60

[Ui] rated insulation voltage

500 V

[Uimp] rated impulse withstand voltage

4 kV

Local signalling

Mechanical indicator

mounting mode

Clip-on

Mounting location

Left side of circuit-breaker

Mounting support

DIN rail

Comb busbar and distribution block compatibility

NO

Height

90 mm

Width

9 mm

Depth

68 mm

Product weight

38 g

Colour

White

Connections - terminals

Screw clamp terminal (top and bottom): 1 cable(s) 0.5…2.5 mm² - rigid; Screw clamp terminal (top and bottom): 2 cable(s) 1.5 mm² - flexible; Screw clamp terminal (top and bottom): 2 cable(s) 1.5 mm² - flexible with ferrule

Wire stripping length

9 mm

Tightening torque

1 N.m top and bottom

IP degree of protection

IP20

Pollution degree

3

Tropicalisation

2

Ambient air temperature for operation

-25…50 °C

Ambient air temperature for storage

-40…85 °C

Unit Type of Package 1

PCE

Number of Units in Package 1

1

Package 1 Height

2.800 cm

Package 1 Width

7.500 cm

Package 1 Length

9.200 cm

Package 1 Weight

45.000 g

Unit Type of Package 2

BB1

Number of Units in Package 2

12

Package 2 Height

8.500 cm

Package 2 Width

10.000 cm

Package 2 Length

23.500 cm

Package 2 Weight

597.000 g

Unit Type of Package 3

S03

Number of Units in Package 3

108

Package 3 Height

30.000 cm

Package 3 Width

30.000 cm

Package 3 Length

40.000 cm

Package 3 Weight

5.915 kg

Country of origin

BE

Warranty (in months)

18

Function

Auxiliary switch/fault-signal switch

Voltage type

AC/DC

Rated voltage

240 V

Installed at the factory

No

Width in number of modular spacings

0.5

Rated switch current

0.1 A

Number of fault-signal switches

1

Device fitting

Earth leakage circuit breaker and miniature circuit breaker (MCB)

Additional equipment

Auxiliary switch/fault-signal switch

Voltage type for actuating

AC/DC

Number of contacts as change-over contact

2

With auto test for earth leakage function

No

Suitable for max. number of poles main contact unit (total)

4

Suitable for max. current main contact unit

63 A

HS Code

8536.50
