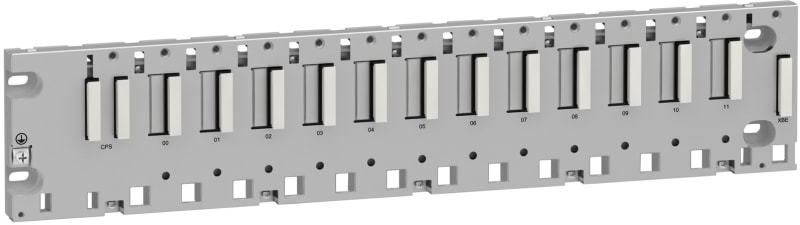

M340 rack, 12 modules
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric BMXXBP1200 — rack M340 -12 slots - panel or plate mounting.
Technical Specifications
- Manufacturer part number (MPN)
- BMXXBP1200
- EAN / GTIN
- 3595863909029
- Sales unit
- pcs
- Package quantity
- 7 pcs
- Range of product
- Modicon X80
- Product or component type
- Backplane
- Number of slots
- 12 bus X
- Product compatibility
- BMXP34 processor; BMXCPS power supply; I/O module; Specific application module
- Power consumption in W
- 0.17 W
- Electrical connection
- 1 connector (XBE) expansion module
- Fixing mode
- By 4 M4/M5/M6 screws, mounting on panel; By 4 M4/M5/M6 screws, mounting on mounting plate
- Height
- 103.7 mm
- Width
- 503.2 mm
- Depth
- 19 mm
- Product weight
- 1.27 kg
- IP degree of protection
- IP20
- Ambient air temperature for operation
- 0…60 °C
- Relative humidity
- 10…95 % without condensation
- Directives
- 2014/35/EU - low voltage directive; 2014/30/EU - electromagnetic compatibility
- Product certifications
- CE; UL; CSA; RCM; EAC; UKCA; Merchant Navy
- Standards
- EN/IEC 61131-2; EN/IEC 61010-2-201; UL 61010-2-201; CSA C22.2 No 61010-2-201; IACS E10; EN/IEC 61000-6-5, interface type 1 and type 2; EN/IEC 61850-3, location G
- Unit Type of Package 1
- PCE
- Number of Units in Package 1
- 1
- Package 1 Height
- 7.000 cm
- Package 1 Width
- 16.000 cm
- Package 1 Length
- 56.800 cm
- Package 1 Weight
- 1.366 kg
- Unit Type of Package 2
- S04
- Number of Units in Package 2
- 8
- Package 2 Height
- 30.000 cm
- Package 2 Width
- 40.000 cm
- Package 2 Length
- 60.000 cm
- Package 2 Weight
- 11.761 kg
- Unit Type of Package 3
- P06
- Number of Units in Package 3
- 32
- Package 3 Height
- 75.000 cm
- Package 3 Width
- 60.000 cm
- Package 3 Length
- 80.000 cm
- Package 3 Weight
- 52.680 kg
- Country of origin
- FR
- Warranty (in months)
- 18
- Suitable for safety functions
- No
- Type of voltage (input voltage)
- AC/DC
- Redundancy
- No
- With integrated power supply
- Yes
- Suitable for rail mounting
- No
- Appendant operation agent (Ex ia)
- No
- Front built-in possible
- Yes
- Rack-assembly possible
- Yes
- Wall mounting/direct mounting
- Yes
- Performance level according to EN ISO 13849-1
- None
- Type of output voltage
- AC/DC
- SIL according to IEC 61508
- None
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 3595863909029
- SAP 1000204115
- Code 8969208
Product Documentation
More from Schneider Electric
Schneider Electric

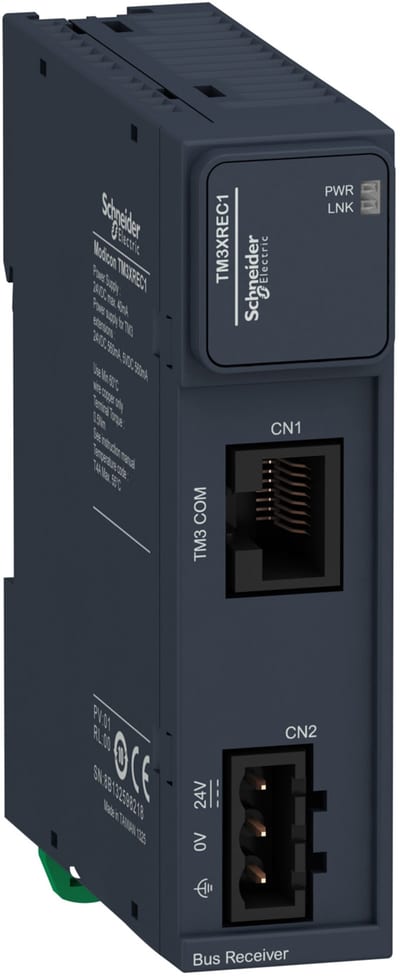

Schneider Electric TM3XREC1 Modicon TM3 - Remote receiver module
Schneider Electric

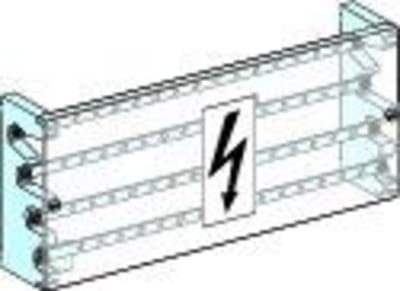

Busbar Linergy BS 250 A G/P
LVS04053
Schneider Electric

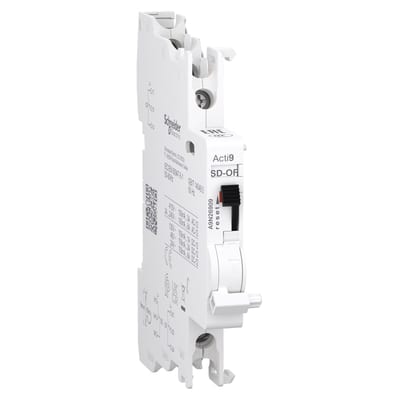

Schneider Electric Auxiliary contact, ACTI9 A9N, OF/SD+OF, 2 C/O, 100MA to 6A, 24VAC to 415VAC, 24VDC to 130VDC, top and bottom connection A9N26909
Schneider Electric

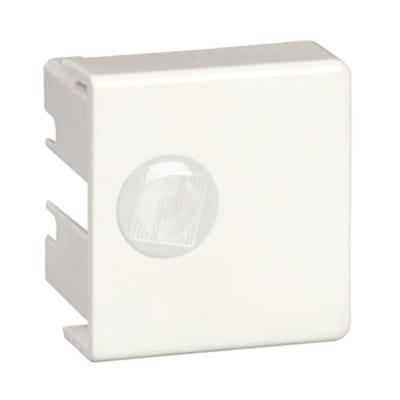

END Piece Tir+ ES80/60 White
5427225
Schneider Electric

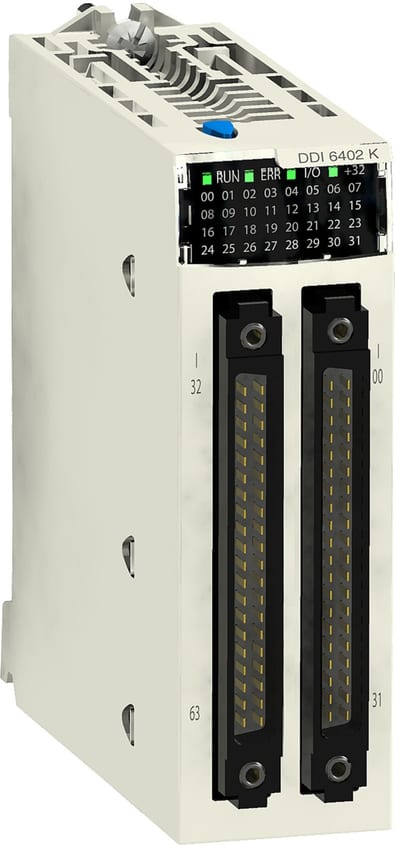

Schneider Electric discrete input module X80 - 64 inputs - 24 V DC positive BMXDDI6402K
Schneider Electric

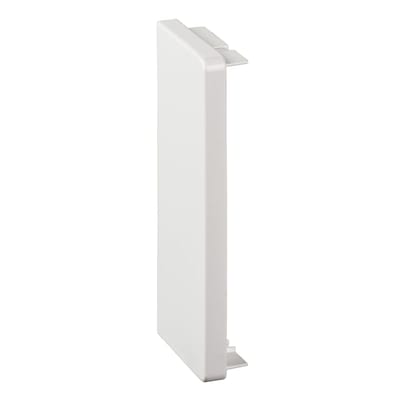

Schneider Electric OptiLine 45 stop end 140×55 mm PC/ABS polar white
ISM10304P
Schneider Electric

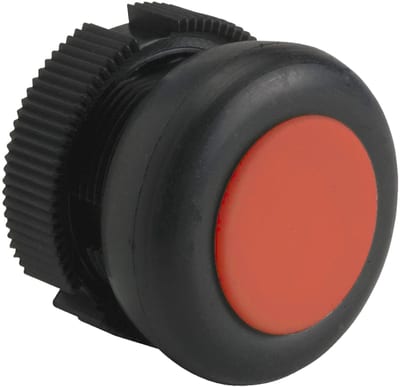

Schneider Electric XACA9414 round head for pushbutton - spring return - XAC-A - red - booted
Schneider Electric

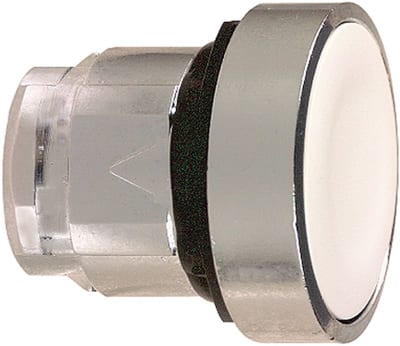

Schneider Electric ZB4BA1 Harmony XB4 Push-Button Head — Ø22 mm, White, flush, spring return, non-illuminated, metal bezel
