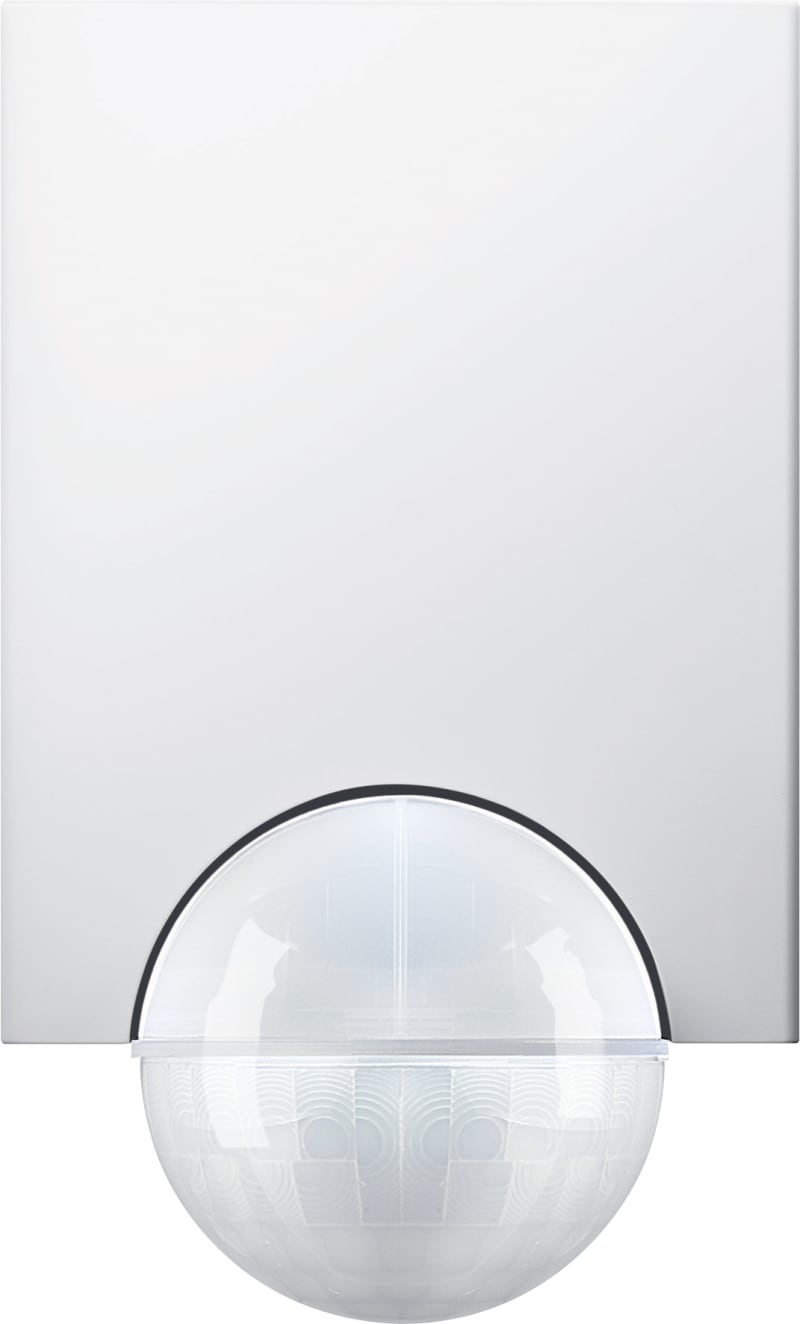

Schneider Electric KNX ARGUS 220, polar white, Supply KNX 7 mA MTN632519
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric MTN632519 KNX PIR, motion detector Argus 220, IP55 White.
Technical Specifications
- Manufacturer part number (MPN)
- MTN632519
- EAN / GTIN
- 3606485104881
- Sales unit
- pcs
- Package quantity
- 12 pcs
- IP rating
- IP55
- Range
- KNX
- Product or component type
- Movement sensor
- Bus type
- KNX
- Colour tint
- Polar white
- Colour code
- RAL 9010
- Power supply input current
- 7 mA
- Number of channels
- 5; 20
- Protection type
- Creep zone protection
- Type of setting
- Light sensitivity adjustable
- Duty cycle
- 9144 minutes
- Time delay range
- 0...1 s (switch-on)
- Detection face
- Lateral: 16 m
- Movement detection area
- 24 m
- Horizontal detection angle
- 0…220 °
- Device mounting
- Surface
- Mounting height
- 2.5 m
- Number of Units in Package 1
- 1
- Number of Units in Package 2
- 12
- Warranty (in months)
- 18
- Other bus systems
- None
- Model
- Movement sensor
- Mounting method
- Surface mounted
- Material
- Plastic
- Material quality
- Thermoplastic
- Surface protection
- Untreated
- Surface finishing
- Glossy
- Colour
- White
- RAL-number (similar)
- 9010
- Optimum mounting height
- 2.5 m
- Max. reach sideways
- 12 m
- Max. reach frontally
- 16 m
- Diameter reach on floor
- 24 m
- Min. switch-on time
- 1 s
- Max. duty cycle
- 9144 min
- Country of origin
- Latvia
Standards & Compliance
- HS Code
- 8536.50
Cross References
- EAN 3606485104881
- SAP 1000325124
- Code 8871924
Product Documentation
More from Schneider Electric
Schneider Electric

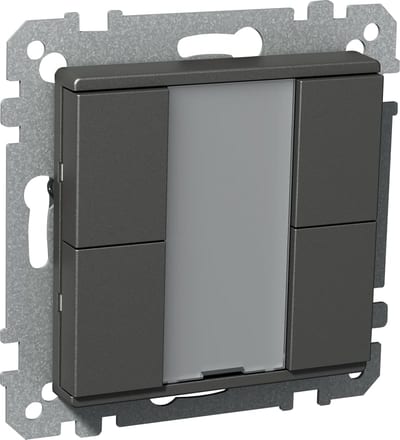

Exxact KNX Pressure 4-Button ANTR
WDE003933
Schneider Electric

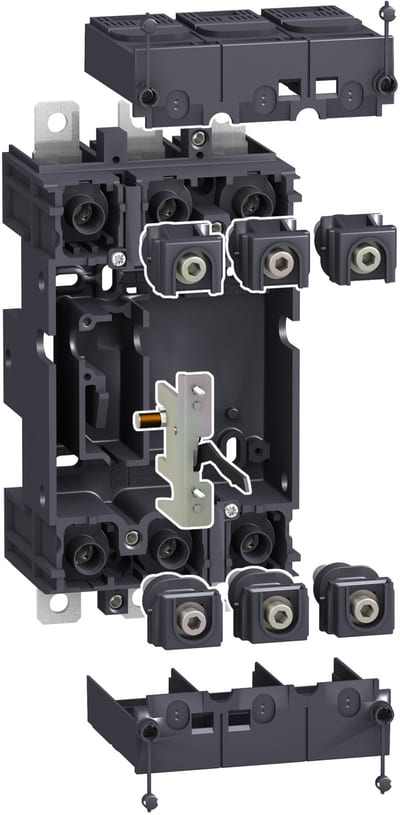

Schneider Electric LV429289 plug-in kit, ComPact NSX100/160/250, 3 poles
Schneider Electric

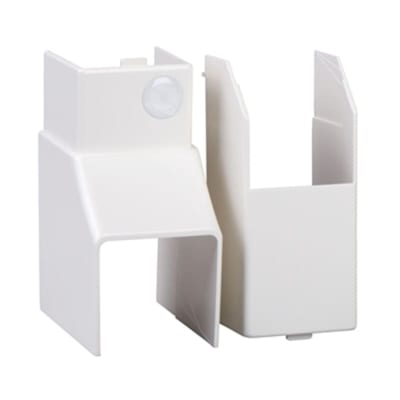

Schneider Electric TIR+ IH 60/40 Internal Corner, White
