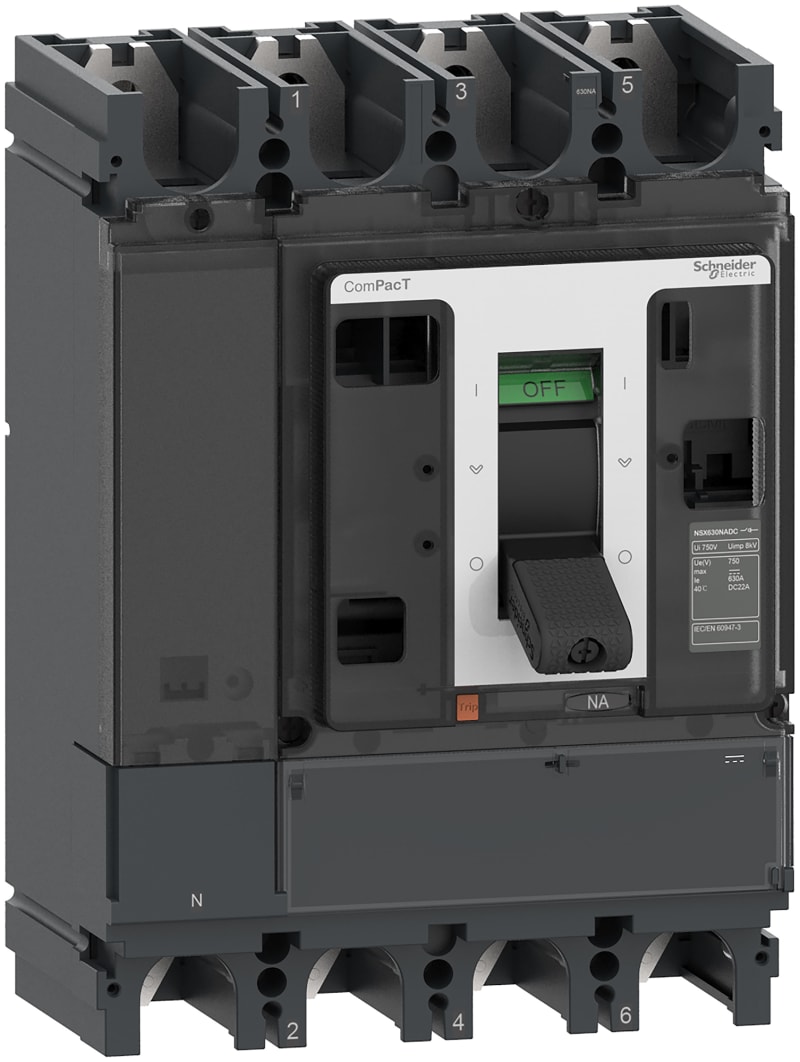

Schneider Electric switch disconnector ComPacT NSX400...630NA, DC, 400 A rating, 4 poles C404400DS
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric C404400DS Load-break switch ComPacT NSX400 NA DC 4p-750VDC-400A.
Technical Specifications
- Manufacturer part number (MPN)
- C404400DS
- EAN / GTIN
- 3606482003538
- HS code
- 8536.90
- Sales unit
- pcs
- Range
- ComPacT
- Product name
- ComPacT NSX DC
- Device short name
- NSX400NA DC
- Product or component type
- Switch disconnector
- Device application
- Distribution
- Poles description
- 4P
- [Ith] conventional free air thermal current
- 400 A at 40 °C
- [Ie] rated operational current
- DC-22A: 400 A DC 750 V
- [Ue] rated operational voltage
- 750 V DC
- Network type
- DC
- Suitability for isolation
- Yes conforming to EN/IEC 60947-3
- Utilisation category
- DC-22A
- Breaking capacity code
- NA
- Contact position indicator
- Yes
- Visible break
- No
- mounting mode
- Fixed
- [Icw] rated short-time withstand current
- 7.5 kA during 1 s
- [Icm] rated short-circuit making capacity
- 7.5 kA switch-disconnector alone
- Control type
- Toggle
- [Ui] rated insulation voltage
- 750 V DC
- [Uimp] rated impulse withstand voltage
- 8 kV
- Mounting support
- Backplate
- Upside connection
- Front
- Downside connection
- Front
- Connection pitch
- 45 mm
- Mechanical durability
- 5000 cycles
- Electrical durability
- 1000 cycles 750 V DC In
- Width (W)
- 185 mm
- Height (H)
- 255 mm
- Depth (D)
- 110 mm
- Product weight
- 7.8 kg
- Standards
- EN/IEC 60947-1; EN/IEC 60947-3
- IP degree of protection
- IP40 conforming to IEC 60529
- IK degree of protection
- IK07 conforming to IEC 62262
- Electrical shock protection class
- Class II
- Pollution degree
- 3 conforming to IEC 60664-1
- Ambient air temperature for operation
- -25…70 °C
- Ambient air temperature for storage
- -50…85 °C
- Number of Units in Package 1
- 1
- Country of origin
- FR
- Warranty (in months)
- 18
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 3606482003538
- SAP 1200534818
- Code 82688401
Product Documentation
