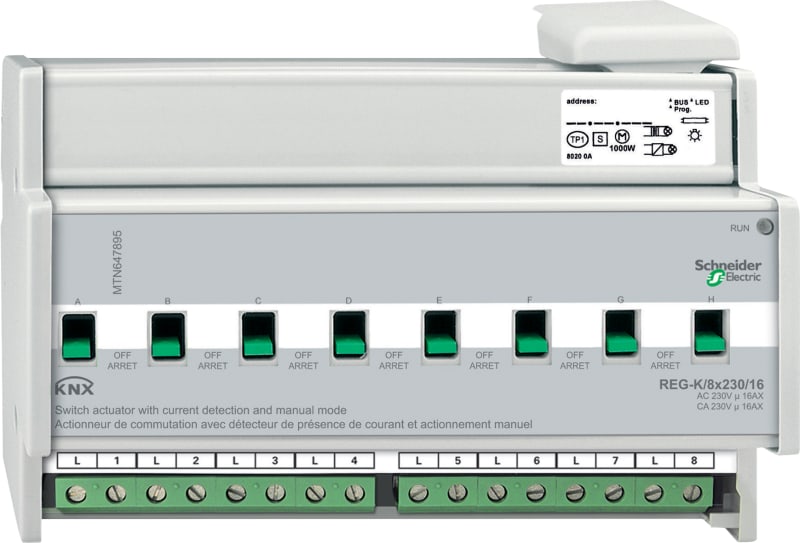

Schneider Electric KNX Switch Actuator REG-K/8×230/16 with Manual Mode
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric MTN647895 is a KNX switch actuator with eight 230 V / 16 A contacts, manual override and current detection. The DIN-rail device occupies eight module widths and accepts 100-240 V AC, 50-60 Hz supply. Rated for incandescent, halogen, fluorescent, capacitive and motor loads up to the declared limits per output.
Technical Specifications
- Manufacturer part number (MPN)
- MTN647895
- EAN / GTIN
- 3606485100074
- Sales unit
- pcs
- Package quantity
- 6 pcs
- Range of product
- KNX
- Product or component type
- Switch actuator
- Operating mode
- Manual
- Bus type
- KNX
- Modular device additional info
- Connectable with different phases
- Number of contacts
- 8
- Switching current
- 16 A
- Colour tint
- Light grey
- Power supply input current
- 16 mA
- Function available
- Current detection
- Total number of 18 mm modules
- 8
- Mounting support
- DIN rail
- Device mounting
- DIN rail
- [Ue] rated operational voltage
- 100...240 V
- Network frequency
- 50...60 Hz
- [In] rated current
- 0.1…16 A
- Load type
- Incandescent lamps: <= 3600 W, 230 V AC; Halogen lamps: <= 2500 W, 230 V AC; Incandescent lamps: <= 1600 W, 100 V AC; Incandescent lamps: <= 3840 W, 240 V AC; Halogen lamps: <= 1086 W, 100 V AC; Halogen lamps: <= 2608 W, 240 V AC; Parallel compensated fluorescent lamp: <= 1086 VA, 100 V AC; Parallel compensated fluorescent lamp: <= 2500 VA, 230 V AC; Parallel compensated fluorescent lamp: <= 2608 VA, 240 V AC; Capacitive: , 16 A, 200 µF, 100...240 V AC; Motor: <= 434 W, 100 V AC; Motor: <= 1000 W, 230 V AC; Motor: <= 1043 W, 240 V AC
- Device presentation
- Complete product
- Main colour tint
- Light grey
- IP degree of protection
- IP20
- Number of Units in Package 1
- 1
- Number of Units in Package 2
- 6
- Country of origin
- DE
- Warranty (in months)
- 18
- Width in number of modular spacings
- 8
- Max. switching power
- 3600 W
- Output power
- 3600 W
- Max. number of switching contacts
- 8
- Max. switching current
- 16 A
- Rated current
- 16 A
- Degree of protection (IP)
- IP20
Standards & Compliance
- HS Code
- 8537.10
Cross References
- EAN 3606485100074
- SAP 1000325181
- Code 8872072
Product Documentation
