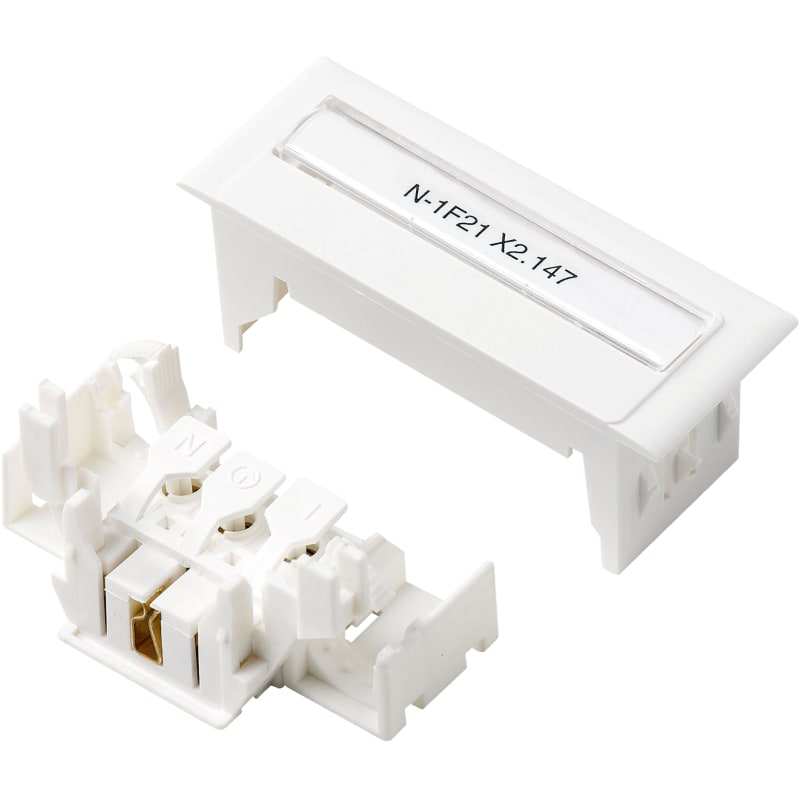

CYB-AD Adapter, push-in, white NCS
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric 5940050 CYB-AD Adapter, push-in, white NCS.
Technical Specifications
- Manufacturer part number (MPN)
- 5940050
- EAN / GTIN
- 7315885940055
- Sales unit
- pcs
- Rated voltage
- 250 V
- Rated current
- 16 A
- Number of poles
- 3
- Degree of protection (IP)
- IP20
- Connection type
- Spring clamp connection
- Model
- Plug
- Cable diameter
- 8–12 mm
- Connection cross section (fine-strand)
- 2.5 mm²
- Number of connections per pole
- 1
- Pole codification
- L, N, PE
- Mechanical coding
- Yes
- Colour coding/contact insert
- White
- Type of locking
- None
- With strain relief
- Yes
- Max. continuous temperature resistance contact part
- 40 °C
- Max. continuous temperature resistance strain relief
- 40 °C
- Halogen free
- Yes
- Surface treatment contacts
- Untreated
- Pollution degree
- 2
- Continuity resistance
- 50 mOhm
- Rated surge voltage
- 4 kV
- Length
- 84 mm
- Height
- 37 mm
- Width
- 41 mm
- Country of origin
- Poland
Standards & Compliance
- HS Code
- 8538.90
Cross References
- EAN 7315885940055
- SAP 1000564483
- Code 81056330
Product Documentation
More from Schneider Electric
Schneider Electric
RXM relay with plinth 12A 24VAC
RXM2AB2B7PVS
Schneider Electric
Schneider Electric Discrete input module X80 - 32 inputs - 12/24 V DC positive/negative BMXDDI3232
Schneider Electric
4 avg. extension busbar GV2 Snap-In
GV2G4EA
Schneider Electric
Schneider Electric Circuit breaker, ComPacT NSX160N AC/DC, 25KA/240VAC, 1 pole, TMD trip unit 125A C16N1TM125
Schneider Electric

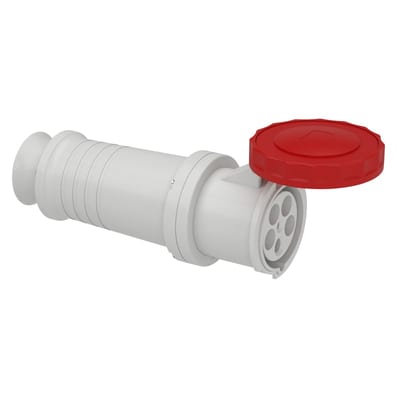

Coupler connector 125A 4P+E 400V IP67
81495
Schneider Electric

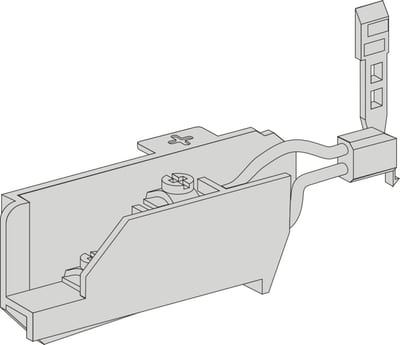

Contact Block BUSS-Conductor
KBC16ZT1
Schneider Electric

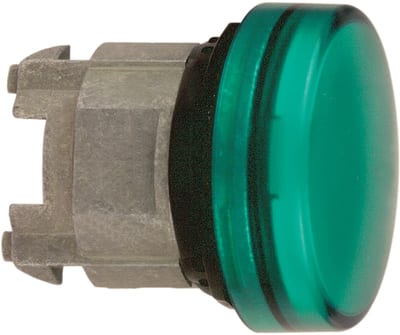

Pilot Light Head Green LED F/ET
ZB4BV033E
Schneider Electric

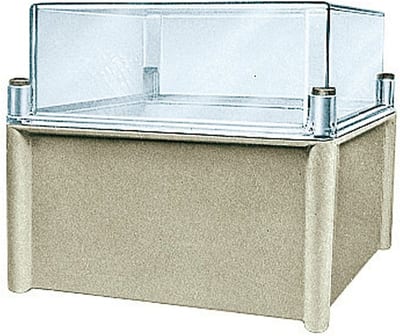

Schneider Electric PLS box, polyester rear, polyester cover IP65 27X36X18CM NSYPLSP2736G
Technical guides
Catalogue entry last verified: 2026-09-30. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
Frequently asked questions
- Where can I buy 5940050?
- 5940050 can be ordered from cballast.com as a Schneider Electric catalogue item: request a quotation on this page or email sales@cballast.com, and the order ships worldwide.
- What is the manufacturer part number for this Schneider Electric product?
- The manufacturer part number is 5940050.
- What is the HS code for 5940050?
- The customs tariff (HS) code for 5940050 is 8538.90.
- Who manufactures 5940050?
- 5940050 is a Schneider Electric product in the Pneumatics range.
- Is a datasheet available for 5940050?
- Yes — the 5940050 datasheet can be viewed and downloaded on this page.
- What is the minimum order quantity for 5940050?
- The minimum order quantity is 1.
- Is 5940050 available?
- Yes — 5940050 is available to order: fulfilment is from supplier stock in cBallast's European network, dispatched directly from the warehouse to the customer, with the exact lead time stated in the quotation (reply within 24 hours).
