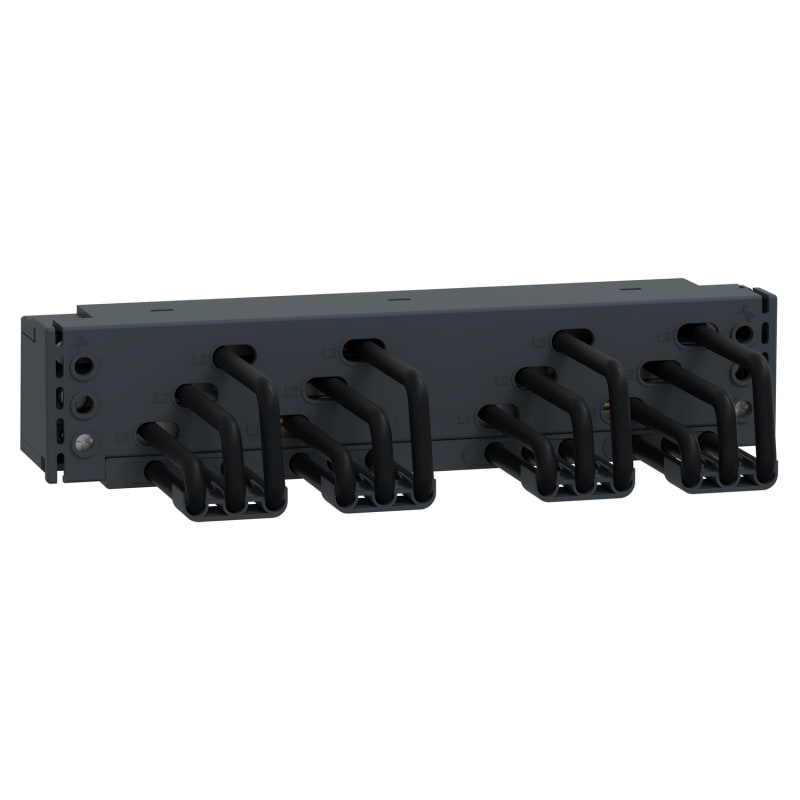

4 avg. extension busbar GV2 Snap-In
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric GV2G4EA — TeSys motor protection circuit breaker. Manual motor starter with thermal and magnetic protection. Linergy FT, extension of busbar, 63A, 4 branches, 45 mm pitch, for Snap-In GV2ME.
Technical Specifications
- Manufacturer part number (MPN)
- GV2G4EA
- EAN / GTIN
- 3606487864035
- Sales unit
- pcs
- Package quantity
- 8 pcs
- Range
- Linergy
- Product name
- FT
- Device short name
- GV2G
- Product or component type
- Comb busbar
- Accessory / separate part category
- Connection accessory
- Poles description
- 3P
- Range compatibility
- TeSys Deca; TeSys GV2
- Product compatibility
- GV2ME...A
- Fixing mode
- 35 mm symmetrical DIN rail: clipped
- Number of tap-offs
- 4
- [Ith] conventional free air thermal current
- 63 A
- Product certifications
- CE; cULus
- [Ui] rated insulation voltage
- 690 V
- Connection pitch
- 45 mm
- Width
- 195 mm
- Product weight
- 0.52 kg
- Number of Units in Package 1
- 1
- Number of Units in Package 2
- 8
- Number of Units in Package 3
- 128
- Warranty (in months)
- 18
- Colour
- Black
- Insulated
- Yes
- Number of phases
- 3
- Rated permanent current Iu
- 63 A
- Number of poles
- 3
- Length
- 203 mm
- Width in number of modular spacings
- 45
- Suitable for devices with auxiliary switch
- No
- Suitable for devices with N-conductor
- No
- Suitable for number of devices
- 4
- Max. rated operation voltage Ue
- 690 V
- Module width
- 45 mm
- Can be cut to size
- No
- Country of origin
- China
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 3606487864035
- SAP 1200921984
- Code 84205847
Product Documentation
More from Schneider Electric
Schneider Electric
Schneider Electric Circuit breaker, ComPacT NSX160N AC/DC, 25KA/240VAC, 1 pole, TMD trip unit 125A C16N1TM125
Schneider Electric
Coupler connector 125A 4P+E 400V IP67
81495
Schneider Electric
Contact Block BUSS-Conductor
KBC16ZT1
Schneider Electric
Pilot Light Head Green LED F/ET
ZB4BV033E
Schneider Electric
Schneider Electric PLS box, polyester rear, polyester cover IP65 27X36X18CM NSYPLSP2736G
Schneider Electric
Schneider Electric OptiLine 45 - wall/ceiling frame - PC/ABS - aluminium metallic ISM10355
Schneider Electric
PLUG FOR Control Current
KNT63ZT1
Schneider Electric

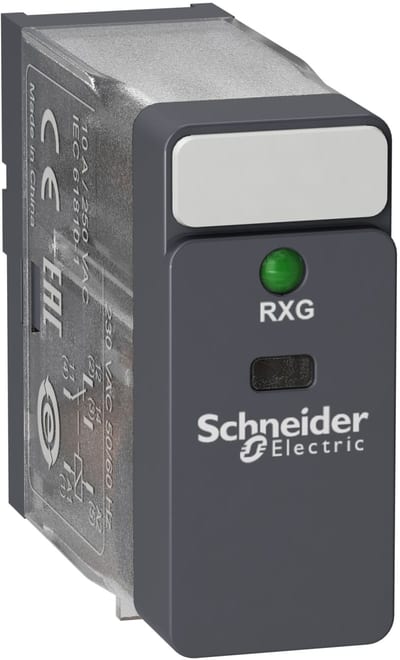

Schneider Electric Interface plug-in relay, 10 A, 1 CO, LED, 24 V AC RXG13B7
