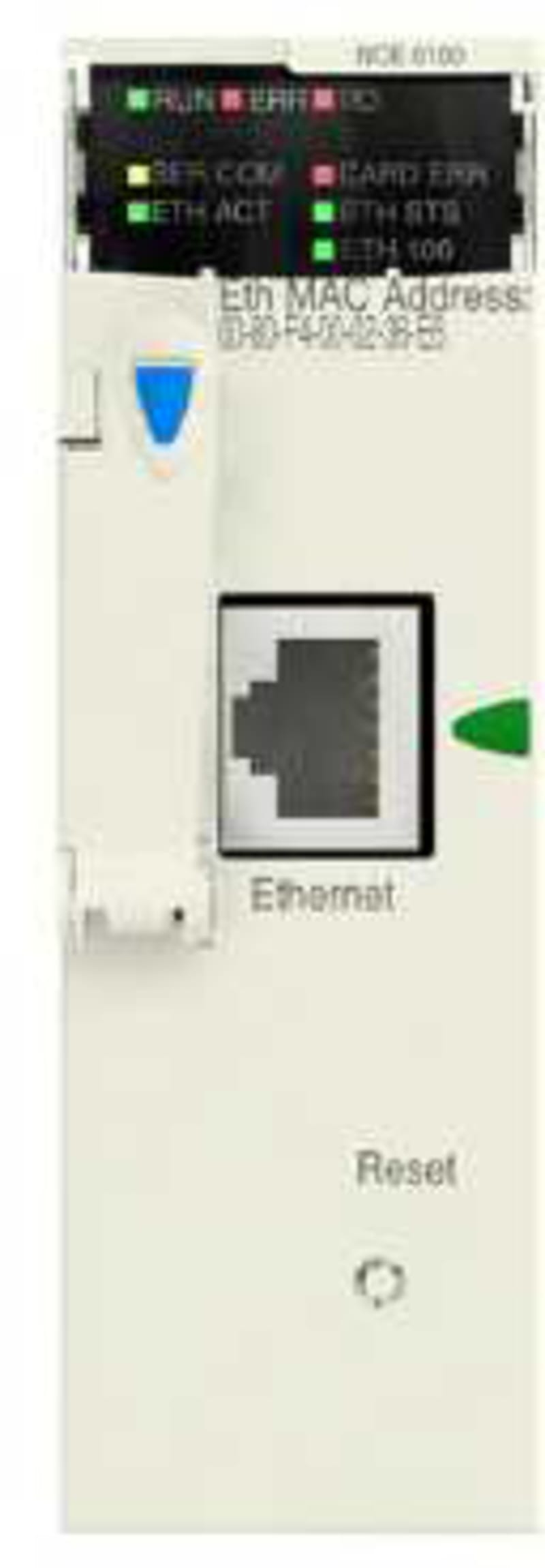

Schneider Electric Ethernet module M340 - flash memory card - internal RAM 16 Mb - 1 x RJ45 10/100 BMXNOE0110

Schneider Electric BMXNOE0110 M340 Ethernet module 10/100Mb, Factorycast.

Manufacturer part number (MPN)

BMXNOE0110

EAN / GTIN

3595863972856

Sales unit

pcs

Range of product

Modicon M340 automation platform

Product or component type

Ethernet TCP/IP network module

Concept

Transparent Ready

Integrated connection type

Ethernet TCP/IP RJ45 10/100 Mbit/s 1 twisted pair transparent ready class C30

Protective treatment

TC

Communication service

Bandwidth management; FDR server; Rack Viewer; SNMP network administrator; Global Data; I/O scanning; Modbus TCP messaging; Web server configurable; Data Editor (via PC, pocket PC or PDA terminal); SOAP XML Web service (server)

Port Ethernet

10BASE-T/100BASE-TX

Memory description

Supplied Flash memory card (BMXRWSC016M); Internal RAM 16000 kB

Memory usage

User web page size: internal RAM; Activating the standard web server: supplied Flash memory card (BMXRWSC016M); Application saving: supplied Flash memory card (BMXRWSC016M)

Supply

Internal power supply via rack

Marking

CE

Local signalling

1 LED (green) for activity on Ethernet network (ETH ACT); 1 LED (green) for processor running (RUN); 1 LED (green) for status of Ethernet network (ETH STS); 1 LED (red) for data rate (ETH 100); 1 LED (red) for memory card fault (CARD ERR); 1 LED (red) for processor or system fault (ERR)

Control type

RESET push-button cold restart

Current consumption

90 mA at 24 V DC

Module format

Standard

Product weight

0.2 kg

Ambient air temperature for operation

0…60 °C

Relative humidity

10…95 % without condensation

IP degree of protection

IP20

Directives

2014/35/EU - low voltage directive; 2014/30/EU - electromagnetic compatibility

Unit Type of Package 1

PCE

Number of Units in Package 1

1

Package 1 Height

5.600 cm

Package 1 Width

11.500 cm

Package 1 Length

12.000 cm

Package 1 Weight

238.000 g

Unit Type of Package 2

S02

Number of Units in Package 2

15

Package 2 Height

15.000 cm

Package 2 Width

30.000 cm

Package 2 Length

40.000 cm

Package 2 Weight

3.951 kg

Country of origin

FR

Warranty (in months)

18

Power consumption

1.1 W

Certified for UL hazardous location division 1

No

Certified for UL hazardous location division 2

No

Certified for UL hazardous location group A (acetylene)

No

Certified for UL hazardous location group B (hydrogen)

No

Certified for UL hazardous location group C (ethylene)

No

Certified for UL hazardous location group D (propane)

No

Certified for UL hazardous location group E (metal dusts)

No

Certified for UL hazardous location class I

No

Certified for UL hazardous location class II

No

Certified for UL hazardous location class III

No

Supporting protocol for EtherCAT

No

Number of HW-interfaces industrial Ethernet

1

With optical interface

No

Supporting protocol for TCP/IP

Yes

Supporting protocol for PROFIBUS

No

Supporting protocol for CAN

No

Supporting protocol for INTERBUS

No

Supporting protocol for ASI

No

Supporting protocol for KNX

No

Supporting protocol for Modbus

No

Supporting protocol for Data-Highway

No

Supporting protocol for DeviceNet

No

Supporting protocol for SUCONET

No

Supporting protocol for LON

No

Supporting protocol for PROFINET IO

No

Supporting protocol for PROFINET CBA

No

Supporting protocol for SERCOS

No

Supporting protocol for Foundation Fieldbus

No

Supporting protocol for EtherNet/IP

Yes

Supporting protocol for AS-Interface Safety at Work

No

Supporting protocol for DeviceNet Safety

No

Supporting protocol for INTERBUS-Safety

No

Supporting protocol for PROFIsafe

No

Supporting protocol for SafetyBUS p

No

Supporting protocol for other bus systems

No

Radio standard Bluetooth

No

Radio standard WLAN 802.11

No

Radio standard GPRS

No

Radio standard GSM

No

Mobile communications standard 3G (UMTS)

No

IO link master

No

Redundancy

No

Type of data transmission

Module rack extension

Transmission rate

100000 kBit/s

With potential separation

Yes

SIL according to IEC 61508

None

Suitable for safety functions

No

Performance level according to EN ISO 13849-1

None

Appendant operation agent (Ex ia)

No

Explosion safety category for gas

None

Explosion safety category for dust

None

Width

29 mm

Height

100 mm

Depth

160 mm

HS Code

8517.62

• EAN 3595863972856
• SAP 1000022138
• Code 8495440
