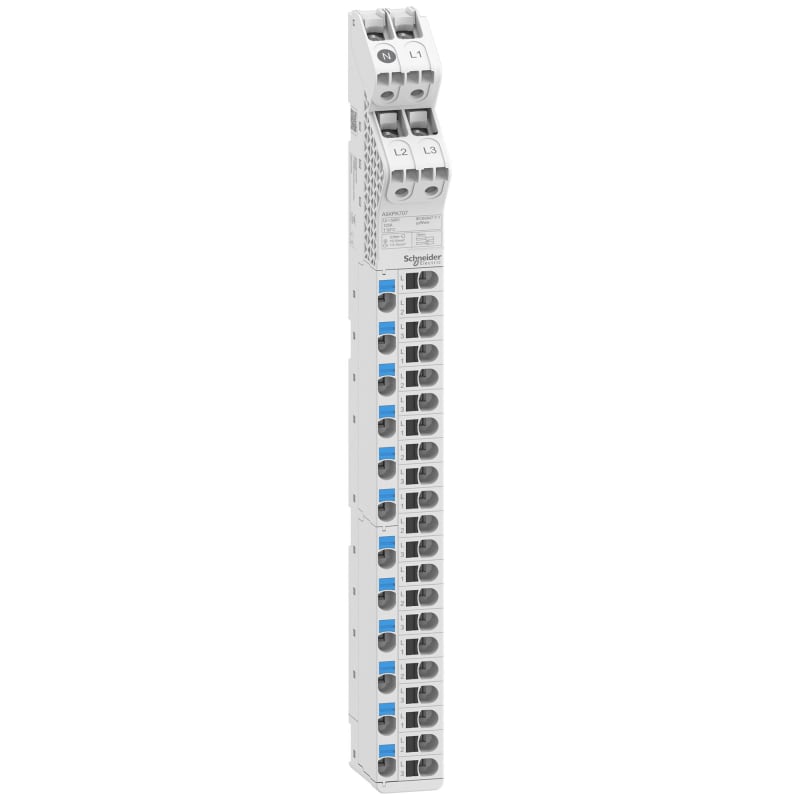

Schneider Electric Vertical distribution block, ACTI9 VDIS, 3L+N, 125A, 250/440VAC, 33 connection points A9XPK707
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric A9XPK707 Acti 9 VDIS vertical distribution block 33 hole.
Technical Specifications
- Manufacturer part number (MPN)
- A9XPK707
- EAN / GTIN
- 3606489667573
- Sales unit
- pcs
- Range
- Acti9
- Product name
- Acti9 VDIS
- Product or component type
- Vertical distribution block
- Range compatibility
- Pragma; Prisma G; Prisma Pack 250; Prisma Pack 160; PrismaSeT S
- Lines description
- 3L + N
- [In] rated current
- 125 A
- [Ue] rated operational voltage
- 250/440 V
- Network type
- AC
- Network frequency
- 50/60 Hz
- [Ui] rated insulation voltage
- 500 V
- [Uimp] rated impulse withstand voltage
- 6 kV
- Number of terminal blocks
- 1 with 33 outgoers
- Connections - terminals
- Supply: tunnel type terminals10…35 mm²; Distribution: push-in spring terminals1.5…10 mm² (rigid) ; Distribution: push-in spring terminals4…16 mm² (stranded) ; Distribution: push-in spring terminals1.5…16 mm² (flexible) ; Distribution: push-in spring terminals1.5…16 mm² (flexible with ferrule)
- Distribution block outgoers
- 7 holes for per phase; 12 holes for neutral
- Pollution degree
- 3
- Height
- 408 mm
- Depth
- 71.5 mm
- Width
- 40.5 mm
- Product weight
- 1.14 kg
- IP degree of protection
- IPxx B
- Unit Type of Package 1
- PCE
- Number of Units in Package 1
- 1
- Package 1 Height
- 8.000 cm
- Package 1 Width
- 4.500 cm
- Package 1 Length
- 46.000 cm
- Package 1 Weight
- 1.237 kg
- Unit Type of Package 2
- P06
- Number of Units in Package 2
- 105
- Package 2 Height
- 75.000 cm
- Package 2 Width
- 60.000 cm
- Package 2 Length
- 80.000 cm
- Package 2 Weight
- 142.000 kg
- Warranty (in months)
- 18
- Nominal current
- 125 A
- Mounting method
- DIN rail
- Connection type
- Without screws
- Number of inputs
- 4
- Number of outputs
- 33
- Number of poles
- 4
- Contact safe
- Yes
- Suitable for fine strand conductors
- Yes
- Suitable for solid conductors
- Yes
- Suitable for stranded conductors
- Yes
- Suitable for fine strand conductors without cable end sleeve
- Yes
- Suitable for extra fine-strand conductors
- Yes
- Conductor cross section, input
- 10–35 mm²
- Conductor cross section, output
- 1.5–16 mm²
- Country of origin
- China
Standards & Compliance
- HS Code
- 8538.90
Cross References
- EAN 3606489667573
- SAP 1200502819
- Code 82627633
Product Documentation
