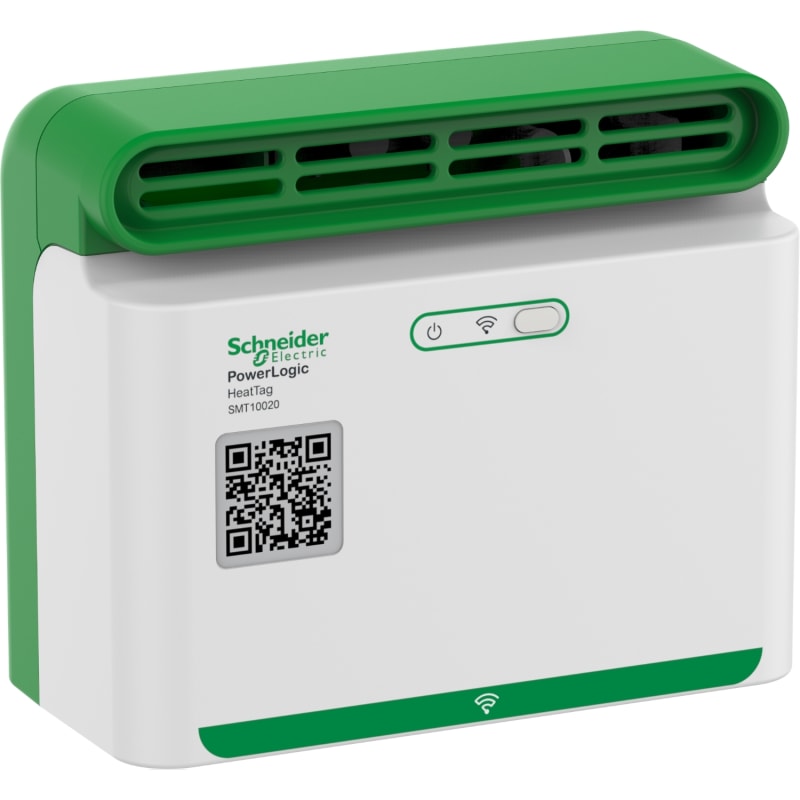

Schneider Electric Heat detector, PowerLogic HeatTag, smart sensor, cable overheating detection SMT10020

Schneider Electric SMT10020 HeatTag wireless SmartSensor for preventiv fire protection-overoppheting in panels.

Manufacturer part number (MPN)

SMT10020

EAN / GTIN

3606489906269

Sales unit

pcs

Package quantity

14 pcs

Range

PowerLogic

Range of product

PowerLogic HeatTag

Product or component type

Heat detector

Range compatibility

PrismaSeT wireless panel server; EcoStruxure data concentrator; PowerLogic PowerTag

Device application

Electrical switchboard

Function available

Overheating detection of cables and wire connections; Overheating detection based on the analyse of gas and particles in the air; 3 levels of alert according to the severity of the situation; Environment auto-learning to avoid false alerts; Wireless communication with all EcoStruxure data concentrators

sensor technology

Electronic

Type of measurement

Temperature, range: - 15...70 °c, accuracy: +/- 1.1 °C; Humidity, range: 15...90 % PURE WHITE, accuracy: +/- 9 %; Air quality index, range: 0...10 AQI

transmission period

30 s (by default); > 30 s (high data traffic)

alarm level

Air quality index >= 10

Communication network type

Wireless - 2.4 GHz

Standards

IEC 61010-1; IEC 61010-2-201; IEC 61326-1; ETSI EN 300 328; ETSI EN 301 489-1; ETSI EN 301 489-17; IEEE 802.15.4; FCC part 15 Subpart B; FCC part 15 Subpart C; UL 61010-1; CSA C22.2 No 61010-1

[Us] rated supply voltage

110...277 V AC at 50/60 Hz, single phase

Supply voltage limits

110…277 V (+/- 15 %)

Maximum supply current

0.1 A

Overvoltage category

III

Control type

1 push-button (sensor pairing/alert acknowledgement)

Local signalling

Network status: 1 LED (green, orange and red); Operating: 1 LED (green, orange and red)

Device location in system

Top of the switchboard; Non forced air ventilated switchboard

Mounting support

DIN rail

Protection type

Circuit breaker 2 A curve C

Electrical connection

2 pin(s)removable spring terminal block 2.5 mm² rigid or flexible

Quantity per set

1

Height

107 mm

Width

108 mm

Depth

55 mm

Product weight

0.27 kg

Ambient air temperature for storage

-20…85 °C

Ambient air temperature for operation

-15…70 °C

Operating altitude

0...2000 m

Relative humidity

15…90 %

IP degree of protection

IP20

IK degree of protection

IK06

Pollution degree

3

Electromagnetic compatibility

EMC immunity conforming to IEC 61326-1

Unit Type of Package 1

PCE

Number of Units in Package 1

1

Package 1 Height

6.300 cm

Package 1 Width

9.500 cm

Package 1 Length

11.600 cm

Package 1 Weight

292.800 g

Unit Type of Package 2

S02

Number of Units in Package 2

14

Package 2 Height

15.000 cm

Package 2 Width

30.000 cm

Package 2 Length

40.000 cm

Package 2 Weight

4.399 kg

Country of origin

FR

Warranty (in months)

18

Bus system KNX Secure

No

Bus system KNX Secure-RF (Radio Frequency)

No

Power consumption

27.7 W

Bus system KNX

No

Bus system KNX-RF (Radio Frequency)

No

Bus system radio frequency

Yes

Bus system LON

No

Bus system Powernet

No

Radio frequency bidirectional

Yes

Model

Multiple sensor

Mounting method

DRA (DIN-rail adaptor)

With bus connection

Yes

With DCF77

No

Acoustic signal

No

With heating

Yes

Colour

White

RAL-number (similar)

9001

Analogue input

No

Weather station

No

Degree of protection (IP)

IP20

HS Code

9027.10
