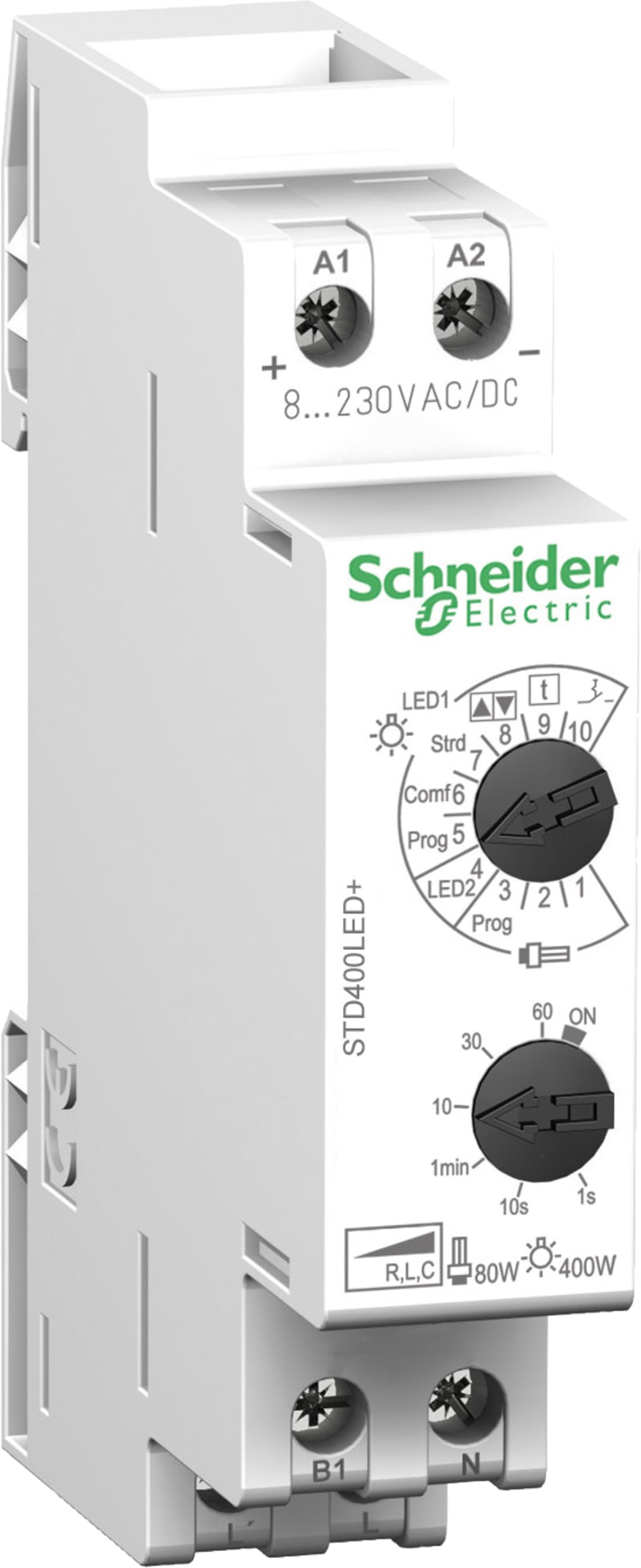

Schneider Electric ACTI9 - STD400LED+ DIN universal dimmer CCTDD20017

Schneider Electric CCTDD20017 STD400+LED DIN-Mounted DIMMER.

Manufacturer part number (MPN)

CCTDD20017

EAN / GTIN

3606480769252

HS code

8536.90

Sales unit

pcs

Package quantity

86 pcs

range of product

Acti9

Product name

Acti9 STD

Product or component type

Remote control dimmer

Device short name

STD

Function available

Staircase function; Scene function; Automatic load type detection; Configurable dimming speed

Device application

Building

Load type

halogen lamp: <= 400 W; incandescent lamp: <= 400 W; fluocompact lamp, dimmable: <= 80 W; LED lamp, dimmable: <= 60 W; low voltage halogen lamp with electronic transformer: <= 300 W; low voltage halogen lamp with ferromagnetic transformer: <= 400 W

Control type

Local control: push-button; Remote control: push-button

Power consumption in VA

0.8 VA

Thermal losses

3 W

[Ue] rated operational voltage

230 V AC - 15...10 % at 50 Hz

Input voltage

8...230 V AC/DC

Protection type

Electronic overload protection; Electronic over temperature protection

Mounting support

DIN rail

9 mm pitches

2

Connected auxiliaries

Maximum 10 auxiliary push-buttons without light indication, distance : < 100 m

Switch application

Central off/on

Alarm function

Snooze; Wake-up

Dimmer type

Dimmer with memory

Height

85 mm

Width

18 mm

Depth

60 mm

Product weight

70 g

IP degree of protection

IP20

Directives

2004/108/EC - electromagnetic compatibility; 2006/95/EC - low voltage directive

Ambient air temperature for operation

-30…50 °C

Ambient air temperature for storage

-20…70 °C

Number of Units in Package 1

1

Number of Units in Package 2

86

Warranty (in months)

18

HS Code

8536.90

• EAN 3606480769252
• SAP 1000679834
• Code 8383047
