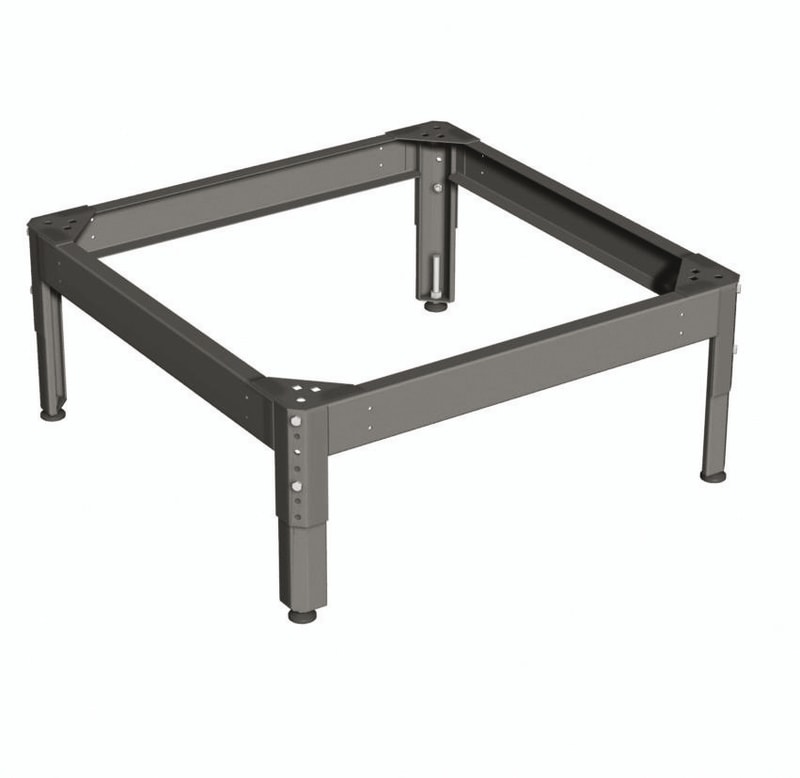

Schneider Electric Actassi - plinth raiser - depth 800 mm NSYAEBP2F88
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric NSYAEBP2F88 Plinth in steel for adaptation against installation floor.
Technical Specifications
- Manufacturer part number (MPN)
- NSYAEBP2F88
- EAN / GTIN
- 3606480176173
- Sales unit
- pcs
- Package quantity
- 8 pcs
- Range of product
- Actassi
- Product or component type
- Plinth raiser
- Accessory / separate part category
- Mounting accessory
- Colour
- Grey (RAL 9011)
- Material
- Textured epoxy-polyester powder sheet steel
- Mounting location
- Fixing to the floor
- Adjustment
- Feet adjustable from 0 to 60 mm with holes; Adjustable in height from 200 mm to 350 mm in steps of 25 mm
- Permanent permissible load
- 1000 kg static load
- Range compatibility
- Actassi VDA; Actassi VDS; Actassi SF
- Product destination
- Rack
- Number of rack unit
- 24U; 42U
- Height
- 200…350 mm
- Width
- 800 mm
- Depth
- 800 mm
- Number of Units in Package 1
- 1
- Number of Units in Package 2
- 5
- Warranty (in months)
- 18
- Max. load capacity
- 1000
- Country of origin
- France
Standards & Compliance
- HS Code
- 7326.90
Cross References
- EAN 3606480176173
- SAP 1000522686
- Code 8417940
Product Documentation
More from Schneider Electric
Schneider Electric

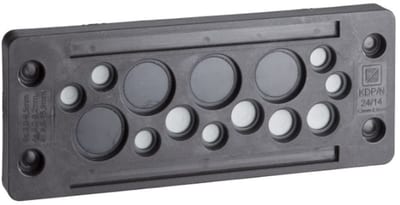

Schneider Electric PanelSeT NSYTSA IP65 Cable Entry Plate 29 Entries 3-6.5 mm
NSYTSA2429SE
Schneider Electric

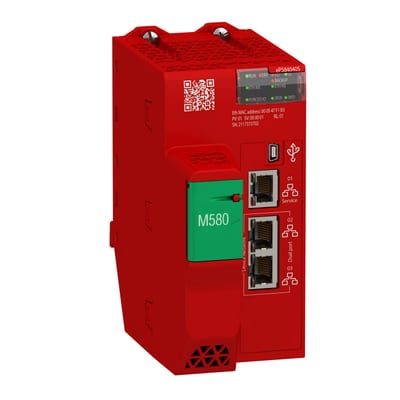

Schneider Electric Processor module, Modicon M580, Safety SIL3, Level 4, Remote BMEP584040S
Schneider Electric

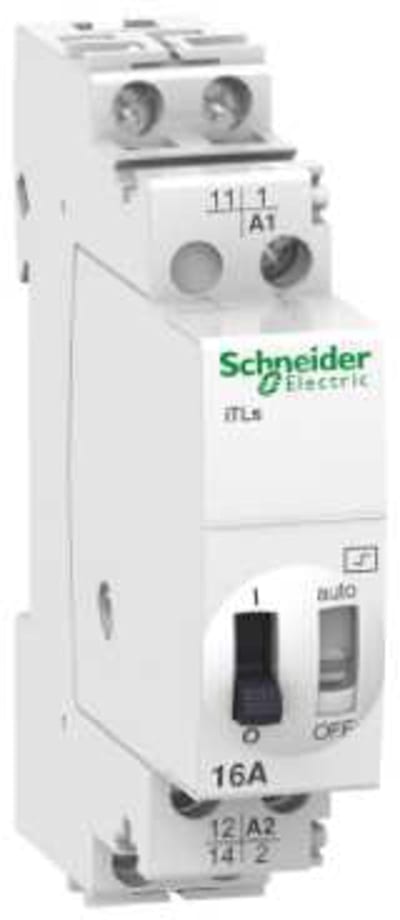

Schneider Electric impulse relay iTLs - 1P - 1NO - 16A - coil 110 VDC - 230...240 VAC 50/60Hz A9C32811
Schneider Electric
Smoke detector, conventional EDC-20 optical
FFS06724620
Schneider Electric

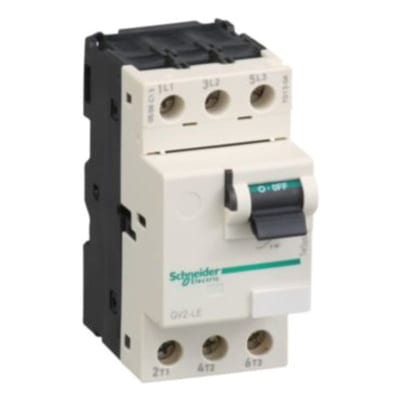

Schneider Electric Motor circuit breaker, TeSys GV2, 3P, 32 A, magnetic, toggle control, screw clamp terminals GV2LE32
Schneider Electric

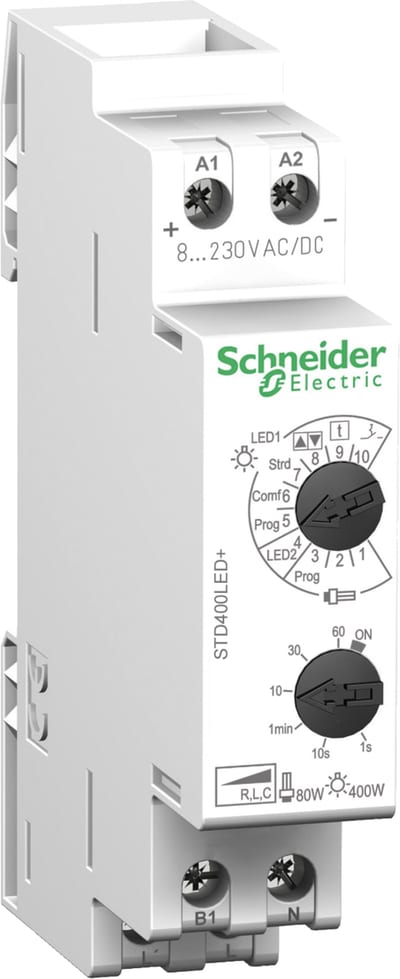

Schneider Electric ACTI9 - STD400LED+ DIN universal dimmer CCTDD20017
Schneider Electric

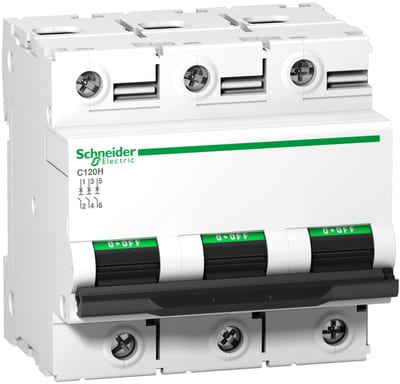

Schneider Electric Miniature circuit breaker (MCB), ACTI9 C120H, 3P, 63A, C curve, 15000A (IEC/EN 60898-1), 15KA (IEC/EN 60947-2) A9N18467
Schneider Electric

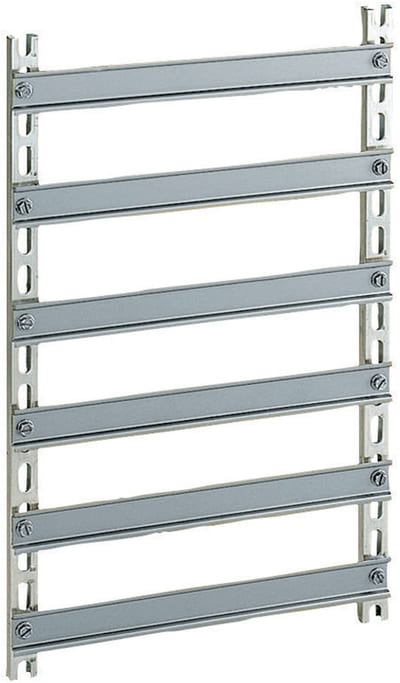

DIN-RAIL TS-35 Stand
