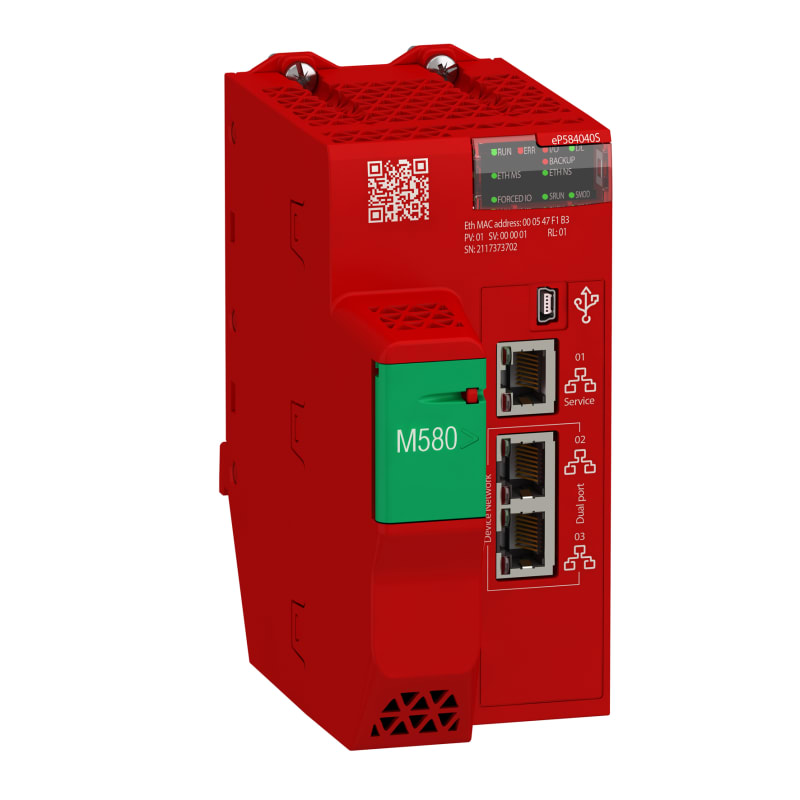

Schneider Electric Processor module, Modicon M580, Safety SIL3, Level 4, Remote BMEP584040S

Schneider Electric BMEP584040S Modicon M580 - CPU Safety, 16/4 MB mémoire, 16 stations RIO X80.

Manufacturer part number (MPN)

BMEP584040S

EAN / GTIN

3606481204967

Sales unit

pcs

Package quantity

6 pcs

Range of product

Modicon M580

Product or component type

Processor module

Impregnation material

Conformal coated

Number of racks

8

Local I/O processor capacity (discrete)

4096 I/O

Local I/O processor capacity (analog)

1024 I/O

Number of application specific channel (local rack)

144

Application specific I/O

Counter; Motion control; SSI encoder; Accurate time stamping; Serial link; HART

Checks

Safety control; Process control

Control channels

Programmable loops

Integrated connection type

1 Ethernet TCP/IP for service port; 2 Ethernet TCP/IP for device network; USB type mini B

Number of remote I/O station

16 - 2 rack(s) per remote drop

Number of distributed equipment

64

Number of CIP safety IO devices

64

Communication module processor capacity

16 AS-Interface module; 4 Ethernet communication module

Communication service

RIO scanner; DIO scanner

Memory description

Expandable flash, 4 GB for data storage; Integrated RAM, 10 kB for system memory; Integrated RAM, 16 MB for program process; Integrated RAM, 2048 kB for data process; Integrated RAM, 4 MB for program safety; Integrated RAM, 1024 kB for data safety

Application structure

2 auxiliary tasks; 1 periodic safe task; 128 event tasks; 1 periodic fast task; 1 cyclic/periodic master task

Cybersecurity

Achilles certified; DoS prevention; IPSec; SNMP logging; Syslog protocol support; Audit trail; Embedded firewall; Firmware signature; Password protection; Port hardening; Security log

Number of instructions per ms

30 Kinst/ms 65 % Boolean + 35 % fixed arithmetic; 40 Kinst/ms 100 % Boolean

Current consumption

295 mA at 24 V DC

MTBF reliability

775000 H

Marking

CE

Vibration resistance

3 gn

Shock resistance

15 gn

Ambient air temperature for operation

-25…60 °C

Ambient air temperature for storage

-40…85 °C

Operating altitude

0...2000 m; 2000...5000 m with derating factor

Relative humidity

5…95 % at 55 °C without condensation

IP degree of protection

IP20

Directives

2014/30/EU - electromagnetic compatibility; 2006/42/EC - machinery; 2014/34/EU - ATEX directive

Product certifications

CE; UL; CSA; RCM; EAC; Merchant Navy; ATEX zone 2/22; IECEx zone 2/22; TÜV

Standards

IEC 61131-2; IEC 61010-2-201; UL 61010-2-201; CSA C22.2 No 61010-2-201; IACS E10; EN/IEC 61000-6-5, interface type 1 and type 2; EN/IEC 61850-3, location G; IEC 60079-0

Environmental characteristic

Hazardous location class I division 2; Gas resistant class Gx conforming to ISA S71.04; Gas resistant class 3C4 conforming to IEC 60721-3-3; Dust resistant class 3S4 conforming to IEC 60721-3-3; Sand resistant class 3S4 conforming to IEC 60721-3-3; Salt resistant level 2 conforming to IEC 68252; Mold growth resistant class 3B2 conforming to IEC 60721-3-3; Fungal spore resistant class 3B2 conforming to IEC 60721-3-3

Protective treatment

Conformal coating

Safety level

SIL 3 conforming to IEC 61508; SIL 3 conforming to IEC 61511; SILCL 3 conforming to IEC 62061; SILCL 3 conforming to ISO 13849-1 category 4; SIL 4 conforming to EN 50126; SIL 4 conforming to EN 50128; SIL 4 conforming to EN 50129

Supply

Internal power supply via rack

Status LED

1 LED (green) processor running (RUN); 1 LED (red) processor or system fault (ERR); 1 LED (red) I/O module fault (I/O); 1 LED (green) download in progress (DL); 1 LED (red) memory card or CPU flash fault (BACKUP); 1 LED (green/red) ETH MS (Ethernet port configuration status); 1 LED (green/red) Eth NS (Ethernet network status); 1 LED (green) processor in safety mode (SRUN); 1 LED (green) processor in maintenance mode (SMOD); 1 LED (red) I/O values overrided by user (FORCED IO)

Product weight

0.849 kg

Unit Type of Package 1

PCE

Number of Units in Package 1

1

Package 1 Height

8.900 cm

Package 1 Width

17.800 cm

Package 1 Length

25.200 cm

Package 1 Weight

880.000 g

Unit Type of Package 2

S03

Number of Units in Package 2

6

Package 2 Height

30.000 cm

Package 2 Width

30.000 cm

Package 2 Length

40.000 cm

Package 2 Weight

5.758 kg

Country of origin

FR

Warranty (in months)

18

Width

64.6 mm

Model

Modular

Height

134.6 mm

Depth

130.3 mm

Number of digital inputs

4096

Number of digital outputs

4096

Number of analogue inputs

1024

Number of analogue outputs

1024

Voltage type (supply voltage)

AC/DC

Type of memory

NVRAM

Memory size

18000 kByte

Processing time (1K, binary operation)

0.01 ms

Max. number of addressable analogue I/O-ports

1024

Max. number of addressable digital I/O-ports

4096

Number of HW-interfaces industrial Ethernet

3

Number of HW-interfaces USB

1

Number of HW-interfaces other

64

Explosion safety category for gas

ATEX gas-ex-protection, Cat. 3G

Explosion safety category for dust

ATEX dust-ex-protection, Cat. 3D

Performance level according to EN ISO 13849-1

None

Long-Term Evolution (LTE)

No

SIL according to IEC 61508

None

HS Code

8537.10

• EAN 3606481204967
• SAP 1200289476
• Code 82265178
