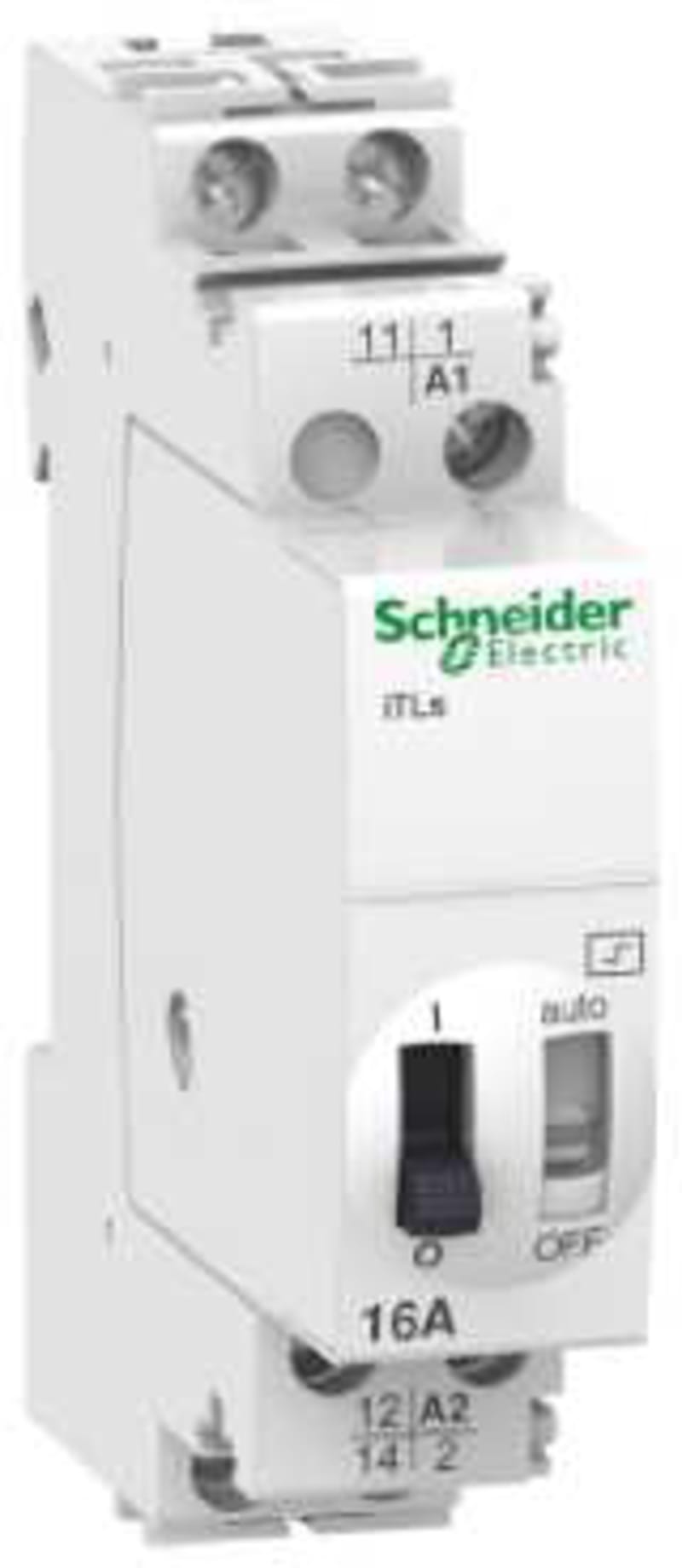

Schneider Electric impulse relay iTLs - 1P - 1NO - 16A - coil 110 VDC - 230...240 VAC 50/60Hz A9C32811

Schneider Electric A9C32811 Impulse relay iTLs 16A 1NO 230VAC/110VDC.

Manufacturer part number (MPN)

A9C32811

EAN / GTIN

3606480092046

Sales unit

pcs

Package quantity

12 pcs

Voltage

230 V AC

Contact configuration

1 NO

range of product

Acti9

Product name

Acti9 iTL

Product or component type

Impulse relay

Device short name

iTLs

Device application

Remote indication

Poles

1P

Pole contact composition

1 NO

Auxiliary contact composition

1 C/O

[In] rated current

16 A

Network type

AC

[Uc] control circuit voltage

230...240 V AC 50/60 Hz; 110 V DC

Network frequency

50/60 Hz

[Ue] rated operational voltage

250 V AC 50/60 Hz

Control type

Coil disconnection; Remote and manual control

Control signal type

Impulse

Switching frequency

100 switching operations/day; 5 switching operations/minute

Impulse duration

50 ms...1 s

Remote control type

Illuminated push-button 3 mA

Local signalling

ON/OFF indication

Signalling circuit voltage

AC: 24...240 V; DC: 24...240 V

Signalling output current

0.01...6 A

mounting mode

Fixed

Mounting support

DIN rail

9 mm pitches

2

Height

84 mm

Width

18 mm

Depth

60 mm

Electrical durability

AC-21: 200000 cycles; AC-22: 100000 cycles

Connections - terminals

Control circuit: tunnel type terminals 1 cable(s) 0.5…4 mm² rigid; Control circuit: tunnel type terminals 1 cable(s) 0.5…4 mm² rigid with cable end; Control circuit: tunnel type terminals 1 cable(s) 1…4 mm² flexible; Control circuit: tunnel type terminals 1 cable(s) 1…4 mm² flexible with ferrule; Power circuit: tunnel type terminals 1 cable(s) 1.5…4 mm² rigid; Power circuit: tunnel type terminals 1 cable(s) 1.5…4 mm² rigid with cable end; Power circuit: tunnel type terminals 1 cable(s) 1.5…4 mm² flexible; Power circuit: tunnel type terminals 1 cable(s) 1.5…4 mm² flexible with ferrule

Wire stripping length

11 mm

Tightening torque

1 N.m

Range compatibility

Acti9 iATEt; Acti9 iATL4; Acti9 iATLc; Acti9 iATLc+s; Acti9 iATLm; Acti9 iATLs; Acti9 iATLz; Acti9 iETL iTL 16; Acti9 iATLc+c; Acti9 iATL24

Standards

EN 669-2-2; EN 669-1

Product certifications

GOST; CCC

Quality labels

KEMA; CEBEC; NF; IMQ; VDE

Noise level

60 dB

IP degree of protection

IP20 conforming to IEC 60529 (on opening); IP40 conforming to IEC 60529 (in enclosure)

Pollution degree

3

Tropicalisation

2

Relative humidity

95 % at 55 °C

Ambient air temperature for operation

-20…50 °C

Ambient air temperature for storage

-40…70 °C

Warranty (in months)

18

Mounting method

DIN rail

Function

Mechanical switch

Built-in depth

43.5 mm

Width in number of modular spacings

1

Type of control voltage 1

AC

Type of control voltage 2

DC

Voltage type (supply voltage)

AC

Max. switching current (cos phi = 0.6)

16 A

Max. incandescent lamp load

1600 W

Max. load fluorescent lamp

1300 VA

Rated switch current

16 A

Number of contacts as normally open contact

1

Country of origin

Belgium

HS Code

8536.41
