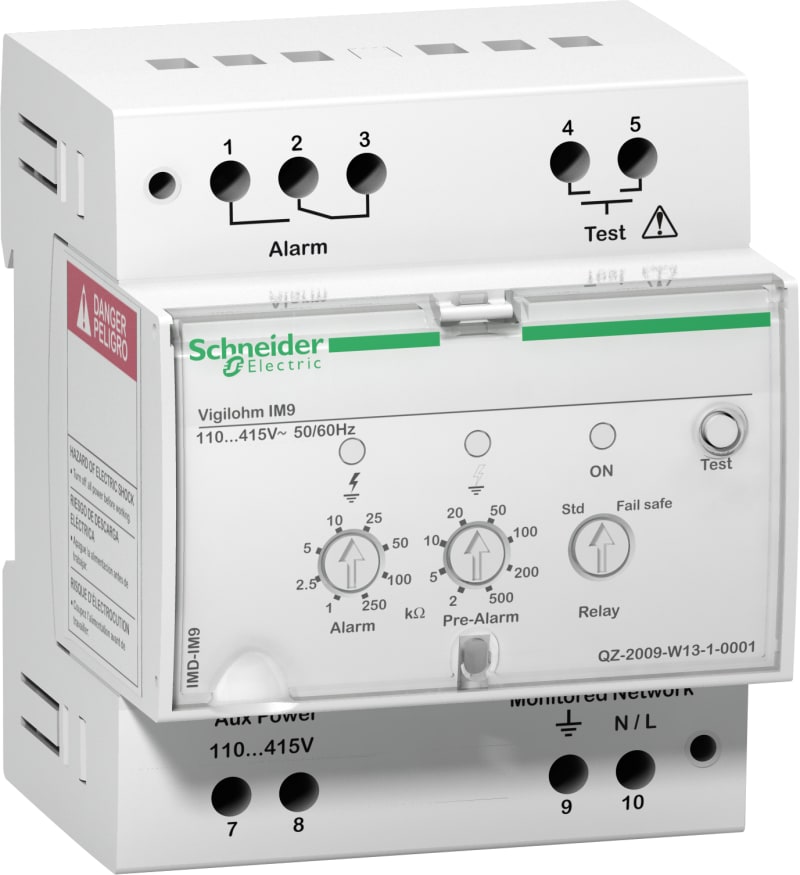

ISO.OVERV. MOTORVIKL. IM9-OL

Insulation monitoring of vikling in elektromotorer. Pot.fri alarm contact.

Manufacturer part number (MPN)

IMD-IM9-OL

EAN / GTIN

3606480321665

Sales unit

pcs

Package quantity

36 pcs

Range

Vigilohm

Device short name

IM9-OL

Product or component type

Insulation monitoring device

Type of IMD

AC IMD

Earthing system

TT; TN-S; IT

Application

Off-line application

Electrical circuit type

Offline device

Type of network

1P + N; 3P; 3P + N

Network rated voltage

0…690 V - AC at 45...440 Hz (device connected to neutral)

Alarm threshold setting

Pre-alarm: 0.5...10 MOhm; Alarm: 0.25...2 MOhm

Type of measurement

Stator insulation resistance, range: 250 kOhm...10 MOhm, accuracy: +/- 15 %

Configurable filtering time

2 s

Response time

2 s 100 %

Self-test

Manual

Overvoltage category

III

IP degree of protection

Case: IP20; Front face: IP40

Material

Thermoplastic

Type of installation

Indoor

Operating altitude

<= 3000 m

Relative humidity

0…92 %

Ambient air temperature for operation

-25…55 °C

Ambient air temperature for storage

-40…70 °C

Pollution degree

2

Mounting mode

Clip-on (DIN rail); Flush-mounted (panel)

Mounting position

Horizontal; Vertical

Connections - terminals

Tunnel type terminals 0.2…2.5 mm²

Product weight

0.2 kg

Cut-out dimensions

66 x 72.5 mm

Height

90 mm

Width

71 mm

Depth

67.5 mm

Display type

Without display

Signal contacts composition

1 C/O standard; 1 C/O fail-safe

Signalling circuit voltage

250 V - AC at 6 A; 12...24 V - DC at 6 A

Communication port protocol

-

Communication of data

HMI: test reports

[Us] rated supply voltage

110...415 V AC 50/60/400 Hz tolerance: +/- 15 %; 125...250 V DC tolerance: +/- 15 %

Power consumption in VA

7 VA

Power consumption in W

3 W

Overcurrent protection

1 A

Standards

IEC 61557-8; UL 61010-1; IEC 61010-1; IEC 61326-2-4

Product certifications

EAC; DNV; CE; RCM; EU-RO MR TA

Environmental characteristic

Exposure to damp heat not in service conforming to IEC 60068-2-30; Exposure to damp heat in service conforming to IEC 60068-2-56; Salt mist conforming to IEC 60068-2-52; Long-term storage class 1K22 conforming to IEC 60721-3-1; Transport class 2K11 conforming to IEC 60721-3-2; Stationary use at weather protected locations class 3K24 conforming to IEC 60721-3-3

Mechanical robustness

Long-term storage class 1M11 conforming to IEC 60721-3-1; Transport class 2M4 conforming to IEC 60721-3-2; Stationary use class 3M11 conforming to IEC 60721-3-3

Number of Units in Package 1

1

Number of Units in Package 2

36

Warranty (in months)

18

Operating voltage AC 50 Hz

0–690 V

Operating voltage AC 60 Hz

0–690 V

External power supply required

No

Supply voltage AC 50 Hz

110–415 V

Supply voltage AC 60 Hz

110–415 V

Supply voltage DC

125–250 V

Rated operating frequency

45–440 Hz

Voltage measuring range

0–690 V

Voltage type (operating voltage)

AC

Type of electric connection

Screw connection

Voltage type for actuating

AC

With detachable clamps

No

Function

For mixed system

Line capacity

60 µF

Response value impedance 1

500–10000 kOhm

Response value impedance 2

250–2000 kOhm

Indication of insulation value

No

Error registration possible

No

Number of contacts as change-over contact

1

Country of origin

India

HS Code

9030.39

• EAN 3606480321665
• SAP 1000339410
• Code 8952056
