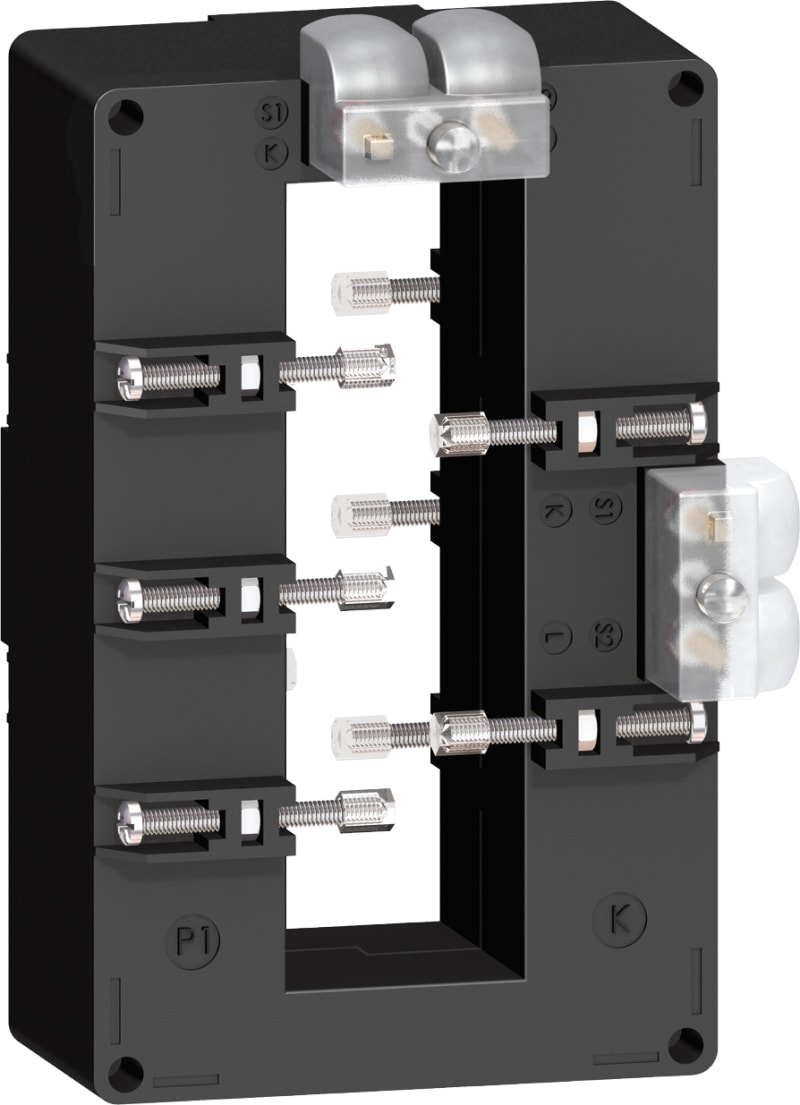

Current Transformer 1000/5 Rail 38X127
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric METSECT5DB100 CT Current transformers with 5 A secondary current used together with an ammeter.
Technical Specifications
- Manufacturer part number (MPN)
- METSECT5DB100
- EAN / GTIN
- 3606480618918
- Sales unit
- pcs
- Range
- PowerLogic
- Product or component type
- Current transformer
- Product name
- CT
- Secondary current
- 5 A
- Accuracy class
- Class 0.5 at 6 VA; Class 1 at 10 VA
- [In] rated current
- 1000 A
- Current transformer type
- Tropicalised for busbar; Solid core
- Current transformer ratio
- 1000/5
- [Ith] conventional free air thermal current
- 60 kA
- Dynamic withstand current
- 2.5 Ith
- Maximum safety factor
- 5
- [Ue] rated operational voltage
- < 720 V AC 50/60 Hz
- mounting mode
- Insulated locking screw
- Mounting support
- Busbar
- Width
- Inner: 38 mm; Outside: 99 mm
- Height
- Inner: 127 mm; Outside: 160 mm
- Depth
- Frame : 40 mm; Total : 78.4 mm
- Product weight
- 0.682 kg
- [Uimp] rated impulse withstand voltage
- 3 kV
- Electrical insulation class
- Class B
- Opening of bars
- 127 x 38
- Sealing
- With
- Standards
- VDE 0414; IEC 61869-2
- Product certifications
- CE
- IP degree of protection
- IP20
- Relative humidity
- 0…95 %
- Ambient air temperature for operation
- -25…60 °C
- Unit Type of Package 1
- PCE
- Number of Units in Package 1
- 1
- Package 1 Height
- 10.000 cm
- Package 1 Width
- 13.500 cm
- Package 1 Length
- 17.000 cm
- Package 1 Weight
- 708.000 g
- Unit Type of Package 2
- S03
- Number of Units in Package 2
- 10
- Package 2 Height
- 30.000 cm
- Package 2 Width
- 30.000 cm
- Package 2 Length
- 40.000 cm
- Package 2 Weight
- 7.480 kg
- Country of origin
- TN
- Warranty (in months)
- 18
- Model
- Through-feed current converter
- Rated primary current
- 1000 A
- Rated secondary current
- 5 A
- Rated secondary apparent power
- 10 VA
- Overcurrent limiting factor
- FS 5
- Calibrated
- No
- With contact protection
- No
- Height opening
- 127 mm
- Width opening
- 38 mm
- Snap mounting
- No
- With copper rail
- No
- Number of primary inputs
- 1
- Secondary connection
- Screw connection
Standards & Compliance
- HS Code
- 8504.31
Cross References
- EAN 3606480618918
- SAP 1000632718
- Code 8384923
Product Documentation
