Jumper link horizontal/vertical LGYE S.S-4000A
Pricing
Request a quote
We reply within 24 hours
Product Description

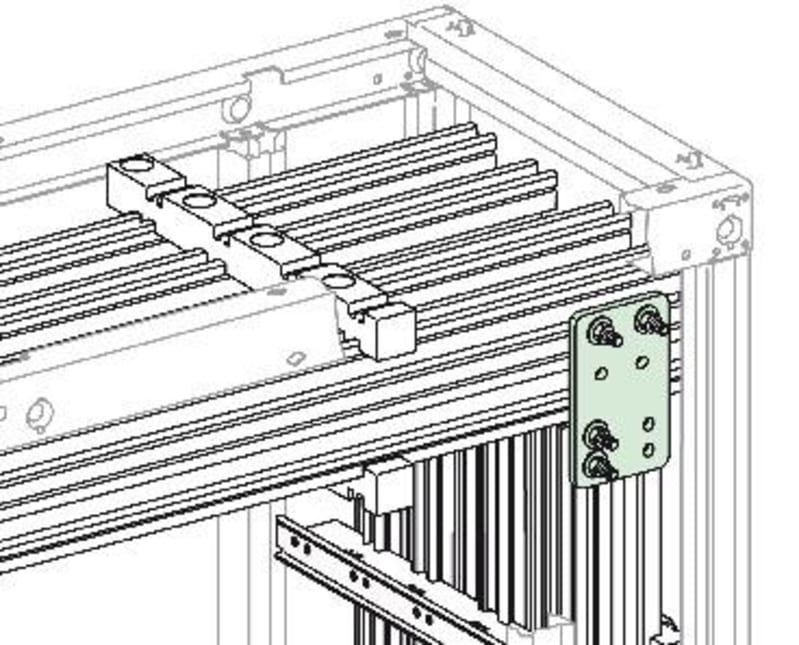

Schneider Electric LVS04607 Jumper link between horizontal and vertical mounted LGYE busbar-1600A- PrismaSeT P.
Technical Specifications
- Manufacturer part number (MPN)
- LVS04607
- EAN / GTIN
- 3606481867995
- Sales unit
- pcs
- Package quantity
- 2 pcs
- Range
- Linergy
- Range of product
- Linergy
- Product or component type
- Connection
- Product name
- Linergy LGYE
- Provided equipment
- Fixing frame; Fixing elements
- Standards
- IEC 61439-2, inside enclosure; IEC 61439-1, inside enclosure
- Product certifications
- ASTA
- Cubicle-device connection
- Linergy busbar
- Installed device
- Connection: busbar vertical installation
- [Ie] rated operational current
- 4000 A
- Height
- 290 mm
- Width
- 150 mm
- Depth
- 4 mm
- Product weight
- 4.26 kg
- Quantity per set
- Set of 1
- Number of Units in Package 1
- 1
- Number of Units in Package 2
- 2
- Number of Units in Package 3
- 24
- Country of origin
- FR
- Warranty (in months)
- 18
- Rated current
- 4000 A
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 3606481867995
- SAP 1200546988
- Code 82879282
Product Documentation
More from Schneider Electric
Schneider Electric
WASHERS-20 pcs-M8, 28mm external diameter
LVS04774
Schneider Electric
Current Transformer 1500/5 Rail 34X84
METSECT5DD150
Schneider Electric
Schneider Electric comb busbar, ACTI9, 1N+L with Aux and Vigi, 9 mm pitch, 48 modules, 80 A A9XPV648
Schneider Electric
Schneider Electric KNX High Bay presence detector FM, Supply KNX 10 mA MTN6304-0019
Schneider Electric
Schneider Electric iCT 40A 2NO 220...240V 50Hz MO contact A9C21842
Schneider Electric
Schneider Electric IEM3275 energy meter - CT - LON - 1 digital I - multi-tariff - MID A9MEM3275
Schneider Electric
Transition Old/NEW 250A
KSA250FA4
Schneider Electric
Schneider Electric Switch disconnector basic frame, ComPacT NS800 type NA, 3P, withdrawable, manually operated, 800A C080S3WM
Technical guides
Catalogue entry last verified: 2026-09-30. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
Frequently asked questions
- Where can I buy LVS04607?
- LVS04607 can be ordered from cballast.com as a Schneider Electric catalogue item: request a quotation on this page or email sales@cballast.com, and the order ships worldwide.
- What is the manufacturer part number for this Schneider Electric product?
- The manufacturer part number is LVS04607.
- What is the HS code for LVS04607?
- The customs tariff (HS) code for LVS04607 is 8536.90.
- Who manufactures LVS04607?
- LVS04607 is a Schneider Electric product in the SC000713 range.
- Is a datasheet available for LVS04607?
- Yes — the LVS04607 datasheet can be viewed and downloaded on this page.
- What is the minimum order quantity for LVS04607?
- The minimum order quantity is 1.
- Is LVS04607 available?
- Yes — LVS04607 is available to order: fulfilment is from supplier stock in cBallast's European network, dispatched directly from the warehouse to the customer, with the exact lead time stated in the quotation (reply within 24 hours).
