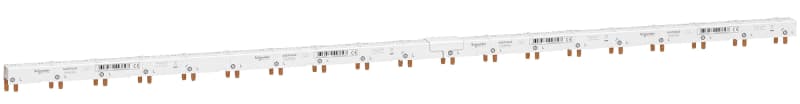

Schneider Electric comb busbar, ACTI9, 1N+L with Aux and Vigi, 9 mm pitch, 48 modules, 80 A A9XPV648

Schneider Electric A9XPV648 Acti 9 busbar 1PN 48m iC40+Vigimodul+auxiliary contact.

Manufacturer part number (MPN)

A9XPV648

EAN / GTIN

3606489443627

HS code

8536.90

Sales unit

pcs

Package quantity

5 pcs

Range

Acti9

Product or component type

Comb busbar

mounting mode

Horizontal

Accessory / separate part category

Connection accessory

Lines description

1L + N

Length in 18 mm modules

48

Standards

EN/IEC 61439-1

Number of ways

18 ways Aux + N + 1 L + Vigi

Distribution type

Aux N L Vigi

Poles configuration for 1 way

1 x 1P + N

Connection pitch

9 mm between phase and neutral

Connector type

Tooth

Distance between way

45 mm

Marking

N L

Insulation

Insulated

Device presentation

Cuttable

[Ie] rated operational current

80 A at 40 °C

[Ue] rated operational voltage

230 V AC Ph/N

[Ui] rated insulation voltage

400 V AC conforming to IEC 61439-1

[Uimp] rated impulse withstand voltage

4 kV

Mounting location

Top on tunnel type terminals

9 mm pitches

96

Height

29 mm

Width

862 mm

Depth

26 mm

Product weight

339 g

Colour

White (RAL 9003)

Range compatibility

Acti9 Acti9 C40; Acti9 Acti9 C40 Vigi; Acti9 Acti9 DT40; Acti9 Acti9 DT40 Vigi; Acti9 Acti9 iDPN; Acti9 Acti9 iDPN Vigi; Acti9 Acti9 ID C40; Acti9 Acti9 IDc; Acti9 Acti9 ITG40; Multi9 Multi9 N40 Vigi; Acti9 Acti9 iC40; Acti9 Acti9 iDT40; Acti9 Acti9 iDD40; Acti9 Acti9 iDD40 TG; Acti9 Vigi iTG40; Acti9 Acti9 iIG40; Acti9 Acti9 iCV40; Acti9 Vigi iCG40; Acti9 Acti9 iID40

Fire resistance

960 °C ( 30 s ) conforming to IEC 60695-2-1

Pollution degree

3 conforming to EN/IEC 60439-1

IP degree of protection

IP20 with end-pieces and tooth covers

Number of Units in Package 1

1

Number of Units in Package 2

5

Number of Units in Package 3

100

Warranty (in months)

18

HS Code

8536.90

• EAN 3606489443627
• SAP 1200170809
• Code 82204183
