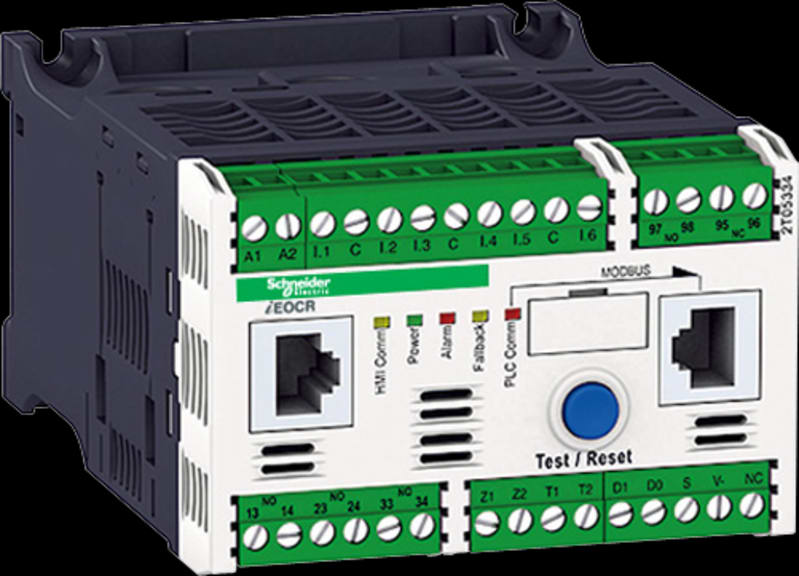

Tesys T Modbus 0,4-8A 24VDC

Schneider Electric LTMR08MBD TeSys T modBus 0,4-8A 24VDC.

Manufacturer part number (MPN)

LTMR08MBD

EAN / GTIN

3389119404624

Sales unit

pcs

Package quantity

10 pcs

Voltage

24 V DC

Setting range

0.4-8 A

Range

TeSys

Product name

TeSys T

Device short name

LTMR

Product or component type

Motor controller

Device application

Equipment monitoring and control

Measurement current

0.4…8 A

[Us] rated supply voltage

24 V DC

Current consumption

56...127 mA

Supply voltage limits

20.4…26.24 V DC

Communication port protocol

Modbus

Bus type

Modbus 2-wire RS 485 interface, addressing 1...247, transmission rate 1.2...19.2 kbit/s, RJ45 with 2 shielded twisted pairs; Modbus 2-wire RS 485 interface, addressing 1...247, transmission rate 1.2...19.2 kbit/s, terminal block with 2 shielded twisted pairs

[Ui] rated insulation voltage

690 V conforming to EN/IEC 60947-1; 690 V conforming to CSA C22.2 No 14; 690 V conforming to UL 508

[Uimp] rated impulse withstand voltage

6 kV current or voltage measurement circuit conforming to EN/IEC 60947-4-1; 0.8 kV communication circuit conforming to EN/IEC 60947-4-1; 0.8 kV supply, inputs and outputs conforming to EN/IEC 60947-4-1

Short-circuit withstand

100 kA conforming to EN/IEC 60947-4-1

Associated fuse rating

4 A gG for output; 0.5 A gG for control circuit

Protection type

Phase unbalance; Locked rotor; Power factor variation; Load fluctuation; Overload; Overload (long time); Phase failure; Thermal protection; Thermal overload protection; Earth-leakage protection; Reverse polarity protection

Network and machine diagnosis type

Running hours counter/operating time; Trip history information; Phase fault and earth fault trip counters; Fault recording; Waiting time after overload tripping; Remaining operating time before overload tripping; Trip context information; Starting current and time; Event recording; Motor control command recording

Logic input number

6

Input current

7 mA

Current state 0 guaranteed

Logic input: < 5 V and <= 15 mA for 5 ms

Current state 1 guaranteed

Logic input: < 15 V and 2...15 mA for 15 ms

maximum output switching frequency

2 Hz

Load current

5 A at 250 V AC for logic output; 5 A at 30 V DC for logic output

Permissible power

480 VA (AC-15), Ie = 2 A, 500000 cycles (output); 30 W (DC-13), Ie = 1.25 A, 500000 cycles (output)

maximum operating rate

1800 cyc/h

Contacts type and composition

1 NO + 1 NC fault signal; 3 NO

Metering type

Average current Iavg; Earth-fault current; Phase current I1, I2, I3 RMS; Imbalance current; Temperature

Measurement accuracy

5...15 % earth fault current internal measurement; 1 % voltage (100...830 V); 3 % power factor; 5 % earth fault current external measurement; +/- 30 min/year internal clock; 0,02 temperature; 1 % current; 5 % active and reactive power

Overvoltage category

III

Connection pitch

5.08 mm

Connections - terminals

Control circuit: connector 1 cable(s) 0.25…2.5 mm² (24 AWG...14 AWG) flexible with cable end; Control circuit: connector 1 cable(s) 0.2…2.5 mm² (24 AWG...14 AWG) flexible without cable end; Control circuit: connector 1 cable(s) 0.25…2.5 mm² (24 AWG...14 AWG) flexible without cable end; Control circuit: connector 1 cable(s) 0.2…2.5 mm² (24 AWG...14 AWG) solid without cable end; Control circuit: connector 2 cable(s) 0.2…1 mm² (24 AWG...14 AWG) flexible with cable end; Control circuit: connector 2 cable(s) 0.2…1.5 mm² (24 AWG...14 AWG) flexible without cable end; Control circuit: connector 2 cable(s) 0.5…1.5 mm² (24 AWG...14 AWG) flexible without cable end; Control circuit: connector 2 cable(s) 0.2…1 mm² (24 AWG...14 AWG) solid without cable end

Tightening torque

Control circuit: 0.5…0.6 N.m flat screwdriver 3 mm

Pollution degree

3

Electromagnetic compatibility

Electrostatic discharge, 3, 8 kV air, 6 kV contact, conforming to EN/IEC 61000-4-2; Radiated RF fields, 3, 10 V/m, conforming to EN/IEC 61000-4-3; Fast transients immunity test (other circuits), level 3, 2 kV, conforming to EN/IEC 61000-4-4; Fast transients immunity test (on supply and relay outputs), level 4, 4 kV, conforming to EN/IEC 61000-4-4; Voltage dips and interruptions immunity test, 70 %, 500 ms, conforming to EN/IEC 61000-4-11; Conducted RF disturbances, 10 V, conforming to EN/IEC 61000-4-6; Temperature sensor: surges (serial mode), 0.5 kV, conforming to EN/IEC 61000-4-5; Temperature sensor: surges (common mode), 1 kV, conforming to EN/IEC 61000-4-5; Control circuit: surges (serial mode), 1 kV, conforming to EN/IEC 61000-4-5; Control circuit: surges (common mode), 1 kV, conforming to EN/IEC 61000-4-5; Communication: surges (common mode), 2 kV, conforming to EN/IEC 61000-4-5; Relay outputs and supply: surges (serial mode), 2 kV, conforming to EN/IEC 61000-4-5; Relay outputs and supply: surges (common mode), 4 kV, conforming to EN/IEC 61000-4-5

Width

91 mm

Height

61 mm

Depth

122.5 mm

Product weight

0.53 kg

Web services

Web server

Compatibility code

LTMR

Standards

IACS E10; EN 60947-4-1; UL 508; CSA C22.2 No 14; IEC 60947-4-1

Product certifications

DNV; EAC; ABS; BV; CSA; UL; RINA; RMRoS; CCC; GL; KERI; LROS (Lloyds register of shipping); NOM; ATEX; C-Tick

Protective treatment

12 x 24 hour cycles conforming to EN/IEC 60068-2-30; 48 h conforming to EN/IEC 60070-2-11; TH conforming to EN/IEC 60068

Fire resistance

650 °C conforming to EN/IEC 60695-2-12; 960 °C conforming to UL 94

Ambient air temperature for operation

-20…60 °C

Ambient air temperature for storage

-40…80 °C

Operating altitude

<= 2000 m without derating

Mechanical robustness

Vibrations mounted on symmetrical rail: 1 Gn, 5...300 Hz conforming to EN/IEC 60068-2-6; Vibrations plate mounted: 4 Gn, 5...300 Hz conforming to EN/IEC 60068-2-6; Shocks half its wave acceleration: 15 Gn for 11 ms conforming to EN/IEC 60068-2-27

IP degree of protection

IP20

Country of origin

CN

Warranty (in months)

18

Supply voltage DC

20.4–26.24 V

Voltage type (supply voltage)

DC

Rated operation current Ie

0.4–8 A

Rated voltage Ue at DC

20.4–26.24 V

Current detection module

Yes

Voltage detection module

No

Type of connection system

Screw connection

Rated control supply voltage DC

24 V

Voltage type for actuating

DC

Number of outputs, with contact

5

Number of electronic outputs

3

Input for thermistor connection

Yes

Input for earth fault detection

Yes

Input for analogue temperature sensor

Yes

Type of interface

Modbus

Degree of protection (IP)

IP20

Number of digital inputs

6

HS Code

8537.10
