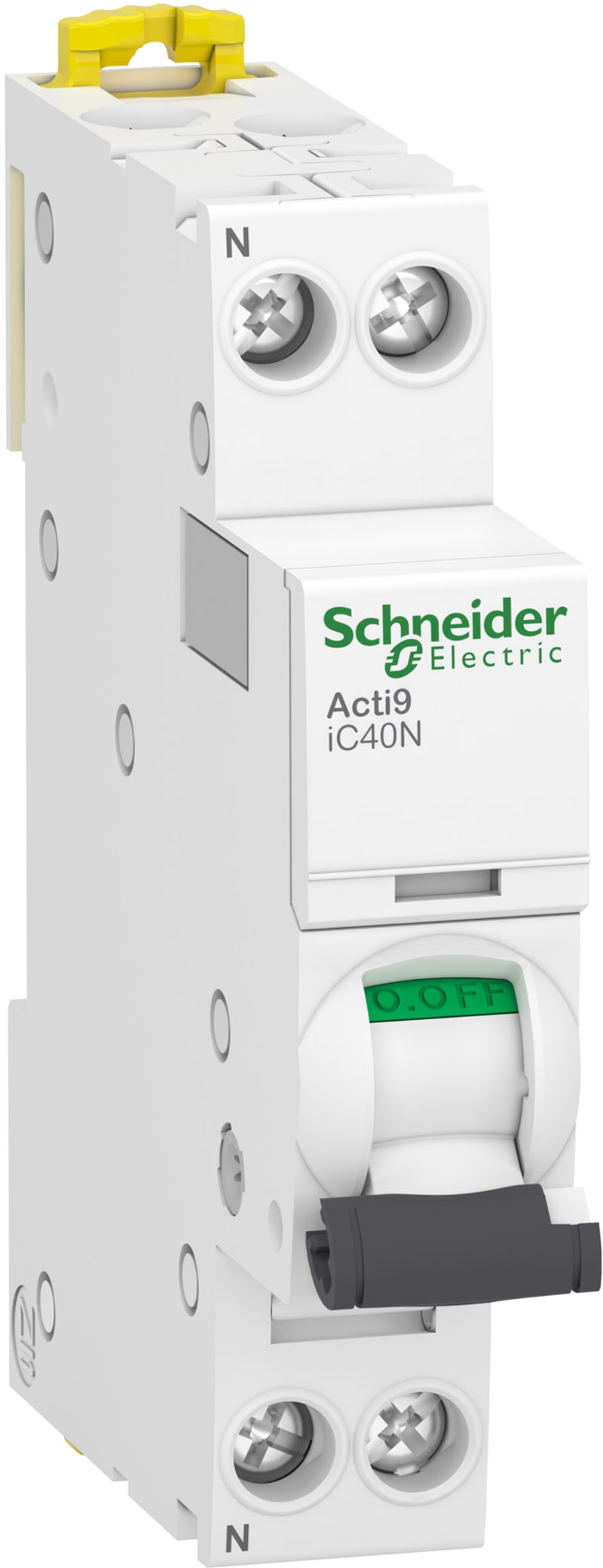

Schneider Electric Miniature circuit breaker (MCB), ACTI9 IC40N, 1P+N, 40A, B curve, 6000A (IEC/EN 60898-1), 10KA (IEC/EN 60947-2) A9P44640

Schneider Electric A9P44640 Acti 9 iC40N miniature circuit breaker 1PN B 40A.

Manufacturer part number (MPN)

A9P44640

EAN / GTIN

3606481324573

HS code

8536.90

Sales unit

pcs

Package quantity

12 pcs

Rated current

40 A

Breaking capacity

10 kA

Range

Acti9

Product name

Acti9 iC40

Product or component type

Miniature circuit-breaker

Device short name

iC40N

Device application

Distribution

Poles description

1P + N

Number of protected poles

1

Neutral position

Left

[In] rated current

40 A

Network type

AC

Trip unit technology

Thermal-magnetic

Curve code

B

Suitability for isolation

Yes conforming to EN/IEC 60947-2

Quality labels

KEMA; IMQ; OVE

Network frequency

50/60 Hz

[Ue] rated operational voltage

230 V AC 50/60 Hz

Magnetic tripping limit

3...5 x In conforming to EN/IEC 60898-1; 4 x In +/- 20 % conforming to EN/IEC 60947-2

[Ics] rated service breaking capacity

6000 A 100 % x Icn at 230 V AC 50/60 Hz conforming to EN/IEC 60898-1; 5 kA 50 % x Icn at 230 V AC 50/60 Hz conforming to EN/IEC 60947-2

Limitation class

3 conforming to EN/IEC 60898-1

[Ui] rated insulation voltage

400 V AC 50/60 Hz conforming to EN/IEC 60947-2

[Uimp] rated impulse withstand voltage

4 kV conforming to EN/IEC 60947-2

Contact position indicator

Yes

Control type

Toggle

Local signalling

ON/OFF indication; Trip indicator

mounting mode

Clip-on

Mounting support

DIN rail

9 mm pitches

2

Height

85 mm

Width

18 mm

Depth

74 mm

Product weight

120 g

Colour

White

Mechanical durability

20000 cycles

Electrical durability

10000 cycles

Locking options description

Padlocking device

Connections - terminals

Tunnel type terminals top or bottom 1…10 mm² flexible; Tunnel type terminals top or bottom 1…16 mm² rigid

Wire stripping length

14 mm for top or bottom connection

Tightening torque

2 N.m top or bottom

Earth-leakage protection

Separate block

Standards

EN/IEC 60898-1; EN/IEC 60947-2

Product certifications

CE; BV; RINA; DNV

IP degree of protection

IP20 conforming to IEC 60529; IP40 (modular enclosure) conforming to IEC 60529

Pollution degree

3 conforming to EN/IEC 60947-2

Relative humidity

95 % at 55 °C

Operating altitude

2000 m

Ambient air temperature for operation

-25…70 °C

Ambient air temperature for storage

-40…85 °C

Warranty (in months)

18

HS Code

8536.90

• EAN 3606481324573
• SAP 1200170733
• Code 82114944
