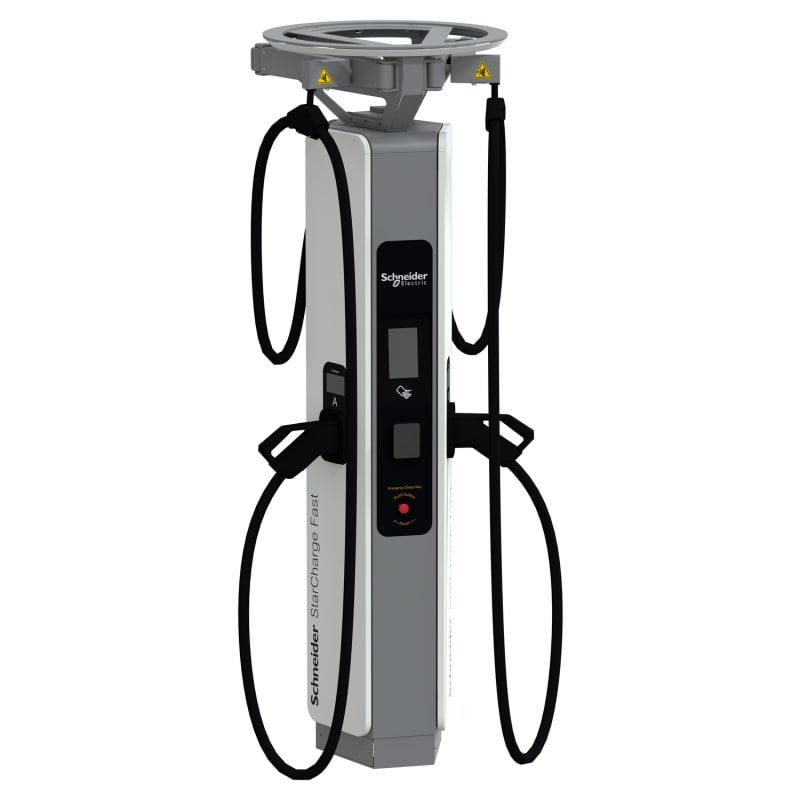

Schneider Electric Floor dispenser, Schneider StarCharge Fast 720, 2XCCS2, 4.1M cable range, cable management, Payter Apollo payment terminal EVD1D720TBBCC

Schneider Electric EVD1D720TBBCC Floor dispenser, Schneider StarChargeFast 720, 2xCCS2, 4.1m cable range,cable management, Payter Apollo payment terminal.

Manufacturer part number (MPN)

EVD1D720TBBCC

EAN / GTIN

3606487894285

HS code

8544.42

Sales unit

pcs

Range

Schneider StarCharge Fast 720

Product or component type

Floor dispenser

Type of installation

Indoor/outdoor

Poles description

1P + N

Range compatibility

EVlink EVlink Field Services; EVlink EVlink Load Management System

Device application

Electrical Vehicle charger

Mounting location

Floor stand

Earthing system

TN-S; TN-C-S; TT

[Us] rated supply voltage

220...240 V AC at 50/60 Hz, single phase

Nominal output power

SAE CCS Combo 2: 380 kW at 0…380 A ( with boost up to 600 A ) 150...1000 V DC

Output cable range in m

Both side: 2 charging cable of 4.1 m

Number of outputs

2

Connector type

SAE CCS Combo 2

Provided equipment

energy meter per output

Accuracy class of energy meter

Class B

Accuracy class error of energy meter

1 % of full scale

Cable management system

With

Protection type

Short-circuit protection on output; Overload protection; Ground fault protection; Temperature rise protection

Access control system

RFID authentication card MIFARE Classic conforming to ISO/IEC 14443 A and B; RFID authentication card MIFARE Ultralight; RFID authentication card MIFARE DESFire EV1; RFID authentication card MIFARE DESFire EV2; RFID authentication card MIFARE Plus; RFID authentication card NFC; Autocharge; Plug & charge conforming to ISO 15118; Free access; QR code/application

Contactless payment terminal

With

Type of contactless payment terminal

Payter Apollo

Display type

LCD touch screen : 7 inch LED

Main user language (constantly evolving)

English; Bulgarian; Czech; Danish; Dutch; Estonian; Finnish; French; German; Greek; Hebrew; Hungarian; Indonesian; Italian; Norwegian; Portuguese; Spanish; Swedish; Multi-language

Local signalling

1 green LED light strip, function: available; 1 red LED light strip, function: fault indication

Control button type

Charge interruption button

Material

Enclosure: stainless steel 430

Colour

Front door: signal white (RAL 9003); Front door: black (RAL 9005); Body: dark grey silver

Ambient air temperature for operation

-30…50 °C (with derating above 50 °C)

Height

2200 mm

Width

720 mm

Depth

720 mm

Net weight

240 kg

Services

Commercial service plan; Commissioning service; Warranty extension up to 5 years; Repair service

Ethernet service

Web browser

Communication port protocol

Ethernet TCP/IP

Communication network type

10/100BASE-T

Electromagnetic compatibility

Immunity for industrial environments: ; Emission standard for industrial environments:

IP degree of protection

IP55

IK degree of protection

IK10; Screen: IK08

Ambient air temperature for storage

-40…70 °C

Operating altitude

0...2000 m

Relative humidity

5…95 %, without condensation

Standards

IEC 61851-1:ed. 3; IEC 61851-23:ed. 1; IEC 62196-1; IEC 62196-3; EN/IEC 61000-6-2:2005; EN/IEC 61000-6-4:class A; ISO 15118-2; DIN 70121; VDV 261

Atmospheric-corrosivity category

C4

Number of Units in Package 1

1

Warranty (in months)

24
