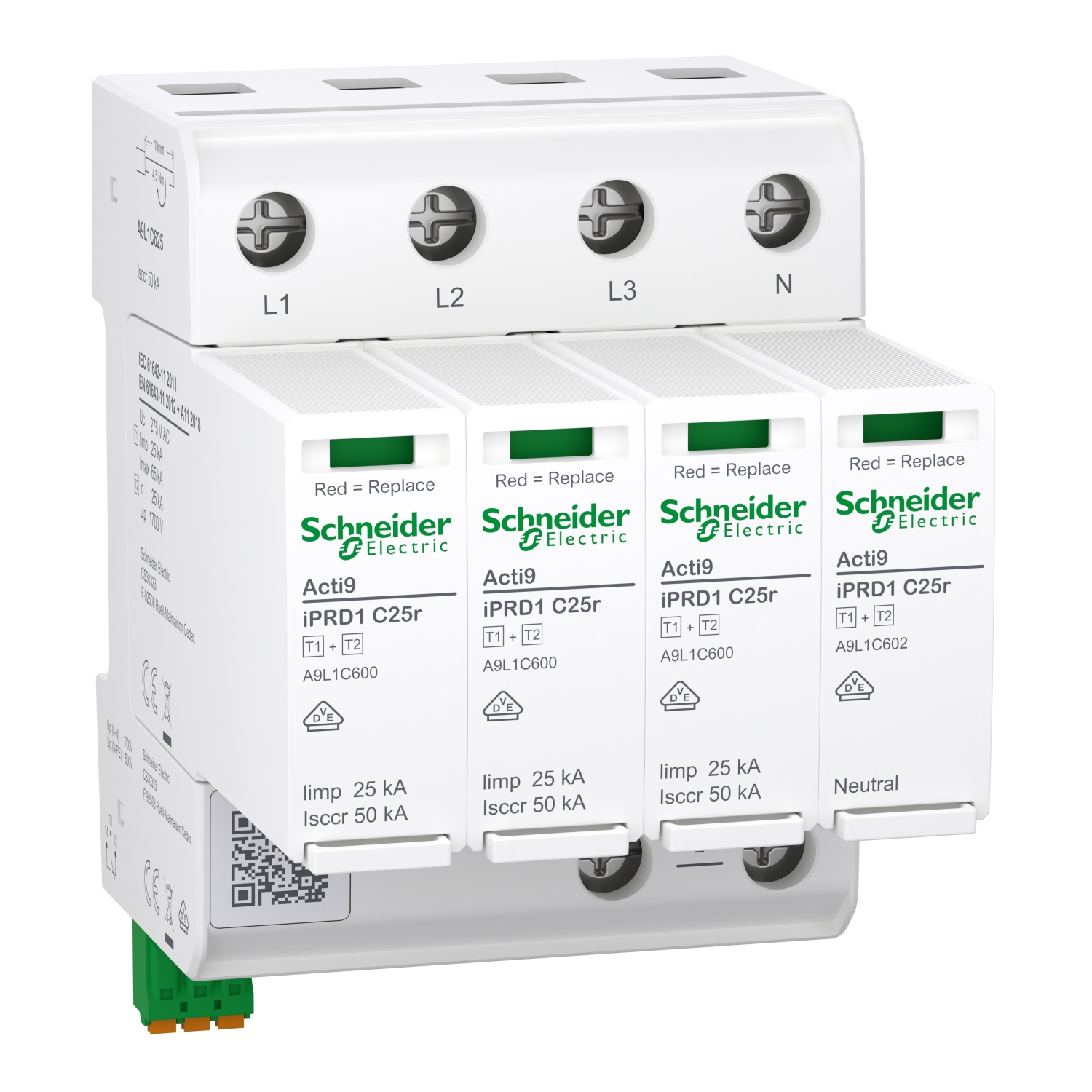

Schneider Electric A9L1C625 ACTI9 IPRD1 C25R Surge Arrester, Type 1+2, 3P+N, 275 V, 25 kA, Remote Signalling

Schneider Electric A9L1C625 is an Acti9 iPRD1 C25r combined Type 1 + Type 2 surge protective device (SPD) for 3P+N TN-S distribution boards. It diverts transient overvoltages from direct and indirect lightning and switching surges: lightning impulse current Iimp (10/350 µs) 25 kA, nominal discharge current In (8/20 µs) 25 kA, maximum discharge current Imax (8/20 µs) 65 kA, voltage protection level Up ≤ 1.5 kV, response time < 25 ns. Maximum continuous operating voltage Uc 275 V AC per protected mode. The compact format occupies 18 mm per pole on the DIN rail and is protected by an external gG backup fuse. Front-replaceable pluggable cartridges, a mechanical status window and a remote signalling changeover contact report cartridge end-of-life. Conforms to IEC 61643-11 / EN 61643-11:2012+A11:2018.

Manufacturer part number (MPN)

A9L1C625

EAN / GTIN

3606486808580

Product type

Acti9 iPRD1 C25r surge protective device

SPD class

Type 1 + Type 2 (combined)

Poles

3P+N

Earthing / network

TN-S

Nominal voltage Un

230/400 V AC, 50/60 Hz

Max. continuous operating voltage Uc

275 V AC

Lightning impulse current Iimp (10/350 µs)

25 kA

Nominal discharge current In (8/20 µs)

25 kA

Max. discharge current Imax (8/20 µs)

65 kA

Voltage protection level Up

≤ 1.5 kV

Response time

< 25 ns

Backup fuse

external gG, upstream

Status indication

mechanical window + remote signalling contact

Protection cartridges

front-replaceable, pluggable

Mounting

DIN rail (clip-on)

Conforms to

IEC 61643-11:2011, EN 61643-11:2012+A11:2018

Sales unit

pcs

Package quantity

14 pcs

Range of product

IPRD1

Product name

Acti9 iPRD1

Product or component type

Surge arrester with pluggable cartridge

Device short name

iPRD1 C25r

Device application

Distribution

Standards

IEC 61643-11:2011; EN 61643-11:2012; EN 61643-11:2018/A11

Product certifications

CE

Quality labels

VDE

Poles description

3P + N

Remote signalling

With

Surge arrester type

Electrical distribution network

Earthing system

TT; TN-S

Surge arrester class type

Type 1 + 2

Surge arrester technology

GDT

[Ue] rated operational voltage

230/400 V AC at 50/60 Hz

Nominal discharge current

Differential mode: 25 kA (L/N); Common mode: 100 kA (N/PE)

Maximum discharge current

Differential mode: 65 kA L/N; Common mode: 150 kA N/PE

[Iimp] impulse current

Differential mode: 25 kA L/N 12.5 A.s; Common mode: 100 kA N/PE 50 A.s

[Uc] maximum continuous operating voltage

Differential mode: 275 V L/N; Common mode: 305 V N/PE

Maximum [Up] voltage protection level

Differential mode <1.5 kV L/N; Common mode <1.5 kV N/PE

[Ut] temporary overvoltage

442 V L/N 120 min withstand; 1200 V N/PE 200 ms withstand

[Ifi] follow current

50 kA L/N; 100 kA N/PE

Short-circuit withstand

50 kA

Disconnector device type

Associated fuse gG 315 A

Local signalling

Operating state: flag (green); Fault indication: flag (red)

Signalling circuit voltage

1 A/250 V AC; 1 A/125 V AC; 0.5 A/48 V DC; 0.5 A/24 V DC; 0.5 A/12 V DC

Mounting mode

Clip-on (DIN rail)

9 mm pitches

8

Height

105 mm

Width

72 mm

Depth

86 mm

Product weight

691 g

Quantity per set

Set of 1

Colour

White (RAL 9003)

Material

Thermoplastic

Cable cross section

0.25…1.5 mm² solid cable for remote control; 6…35 mm² solid stranded cable for power terminals; 6…25 mm² flexible cable for power terminals; 16…35 mm² solid stranded cable for earthing terminal; 16…25 mm² flexible cable for earthing terminal

Wire stripping length

Remote control: 10 mm; Power terminals: 18 mm; Earthing terminal: 18 mm

Tightening torque

Power circuit: 4.5 N.m

Impulse current

25 kA

Targeted country

Germany

IP degree of protection

IP20 with cartridges fitted and device wired

IK degree of protection

IK05

Relative humidity

5…95 %

Operating altitude

0...2000 m

Ambient air temperature for operation

-40…85 °C

Country of origin

SI

Warranty (in months)

18

Mounting method

DIN rail (top hat rail) 35 mm

Lightning impulse current (10/350 µs)

25 kA

Number of poles

4

Construction size

4 modular spacing

Voltage protection level

1.5 kV

Follow current extinguishing capability

50 kA

Max. continuous voltage AC

275 V

Nominal voltage AC

240 V

Test class

Type 1 + 2

Voltage protection level L-N

1.5 kV

Signalling at the device

Optical

Degree of protection (IP)

IP20

Voltage protection level N-PE

1.5 kV

Max. conductor cross section solid (solid, stranded)

35 mm²

Max. conductor cross section flexible (fine-strand)

25 mm²

Specific energy (W/R)

156.2 kJ/Ohm

Max. overcurrent protection device, series connection (fuse)

315 A

Standard

IEC 61643-11

IP Rating

IP20

HS Code

8536.30

• EAN 3606486808580
• SAP 1201002346
• Code 84341250
