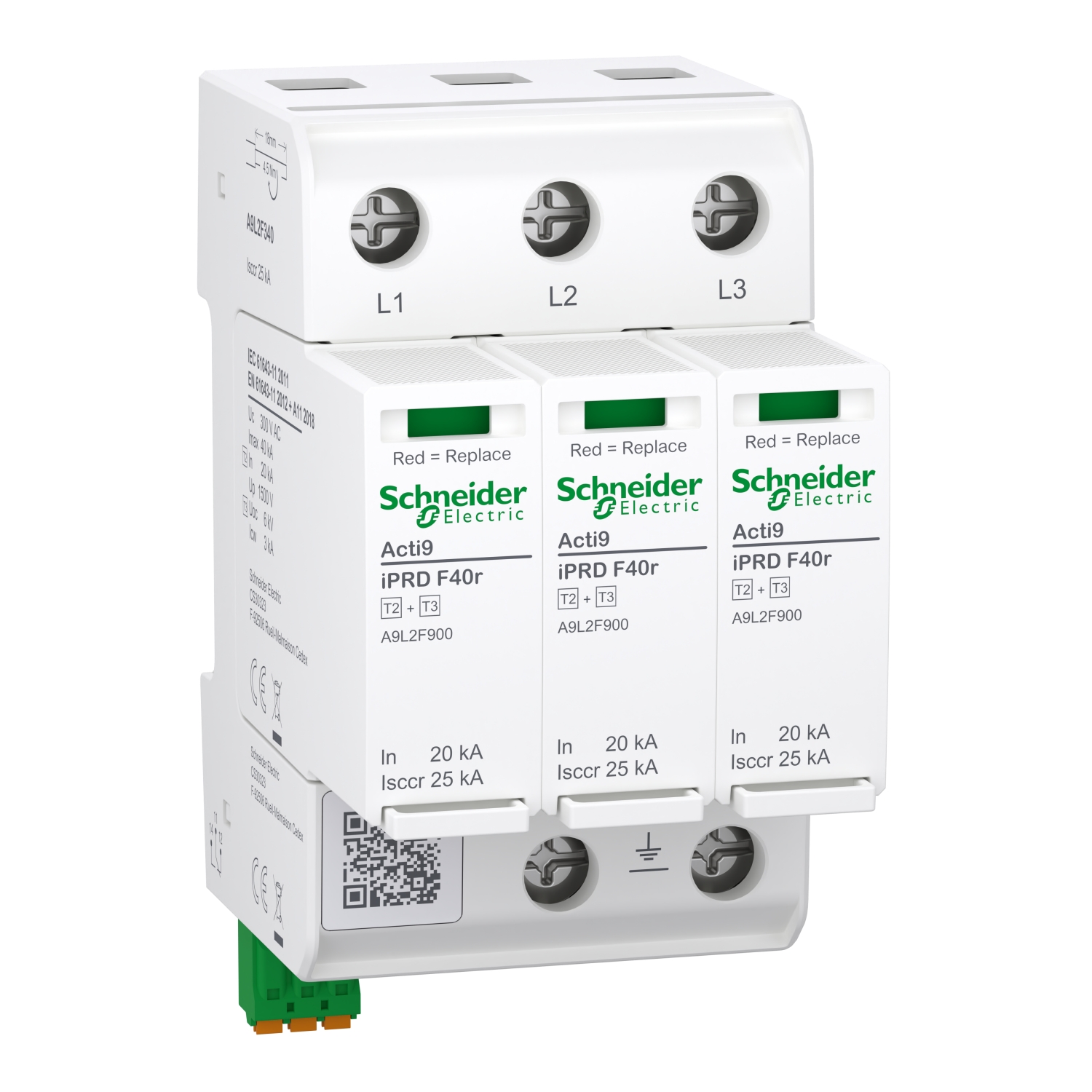

Schneider Electric Surge arrester with pluggable cartridge, ACTI9 iPRD F40R, 3P, 40KA, type 2+3, with fuse, with remote monitoring A9L2F340

Schneider Electric A9L2F340 Modular, pluggable surge protection device, Acti9 iPRD F40r, 3P, 40kA, T2+3, with fuse, with signalkont.

Manufacturer part number (MPN)

A9L2F340

EAN / GTIN

3606486808498

HS code

8536.90

Sales unit

pcs

Package quantity

16 pcs

Number of poles

3P

range of product

Acti9

Product name

Acti9 iPRD

Product or component type

Surge arrester with pluggable cartridge

Device short name

iPRD F40r

Device application

Distribution

Standards

IEC 61643-11:2011; EN 61643-11:2012; EN 61643-11:2018/A11

Product certifications

CE

Poles description

3P

Remote signalling

With

Surge arrester type

Electrical distribution network

Earthing system

TN-C

Surge arrester class type

Type 2 + 3

Surge arrester technology

MOV

[Ue] rated operational voltage

230/400 V AC at 50/60 Hz

Nominal discharge current

20 kA

Maximum discharge current

40 kA

[Uoc] open circuit voltage

6000 V

[Uc] maximum continuous operating voltage

300 V

Maximum [Up] voltage protection level

1.5 kV

[Out] temporary overvoltage

442 V L/N 120 min safe failure mode; 337 V N/PE 5 s withstand

Short-circuit withstand

25 kA

Disconnector device type

Integrated fuse

Local signalling

Operating state: flag (green); Fault indication: flag (red)

Signalling circuit voltage

1 A/250 V AC; 1 A/125 V AC; 0.5 A/48 V DC; 0.5 A/24 V DC; 0.5 A/12 V DC

Mounting mode

Clip-on (DIN rail)

9 mm pitches

6

Height

105 mm

Width

54 mm

Depth

70 mm

Product weight

407 g

Quantity per set

Set of 1

Colour

White (RAL 9003)

Material

Thermoplastic

Response time

< 25 ns

Cable cross section

0.25…1.5 mm² solid cable for remote control; 2.5…35 mm² solid stranded cable for power terminals; 2.5…25 mm² flexible cable for power terminals; 6…35 mm² solid stranded cable for earthing terminal; 6…25 mm² flexible cable for earthing terminal

Wire stripping length

Remote control: 10 mm; Power terminals: 18 mm; Earthing terminal: 18 mm

Tightening torque

Power circuit: 4.5 N.m

Targeted country

Germany

IP degree of protection

IP20 with cartridges fitted and device wired

IK degree of protection

IK05

Relative humidity

5…95 %

Operating altitude

0...4000 m

Ambient air temperature for operation

-40…85 °C

Warranty (in months)

18
