Glassdoor SFN/SM 2200X1200
Pricing
Request a quote
We reply within 24 hours
Product Description

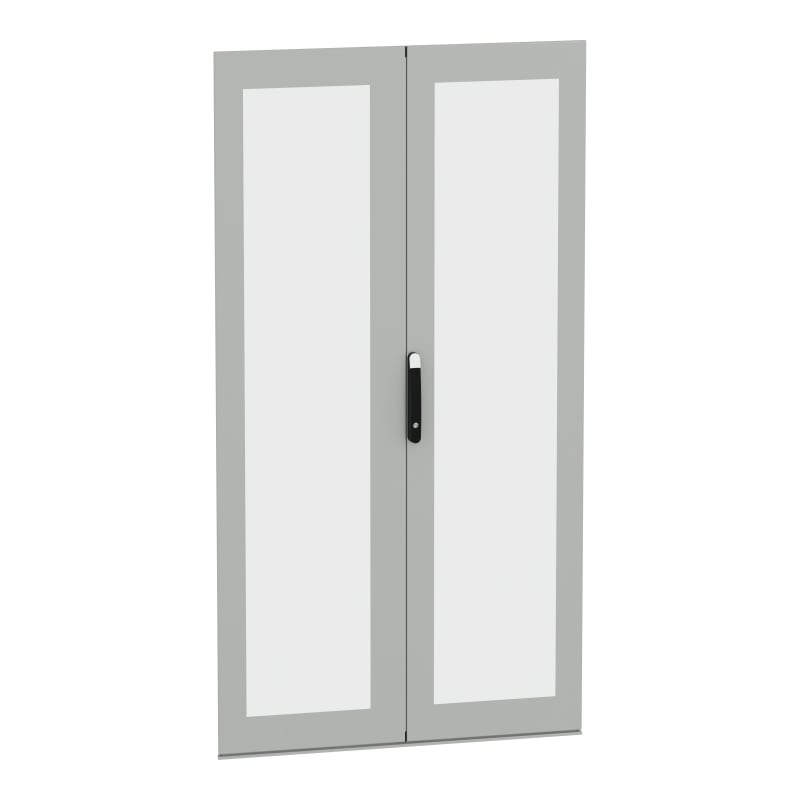

Schneider Electric NSYSFND22122DT Glass door, PanelSeT SFN/SM, complete with locking system, 2200x1200.
Technical Specifications
- Manufacturer part number (MPN)
- NSYSFND22122DT
- EAN / GTIN
- 3606486378410
- Sales unit
- pcs
- Dimensions
- 2200×1200 mm
- Range
- PanelSeT
- Accessory / separate part category
- Enclosure accessory
- Product or component type
- Door
- Application
- Multi-purpose
- For enclosure nominal dimensions
- - H: 2200 mm W: 1200 mm
- Mounting location
- Front
- Range compatibility
- PanelSeT SFN
- Device composition
- 1 lock with handle and 5 mm double bar insert; 1 locking bar system 4 points; 2 door; 1 locking bar system 2 points; 8 hinges
- Quantity per set
- Set of 1
- Material
- Door: Securit glass; Door: sheet steel
- Colour
- Grey (RAL 7035)
- Surface finish
- Epoxy-polyester powder
- Lock type
- Lock 5 mm double bar
- Number of locks
- 1
- Door type
- External transparent
- Door opening side
- Reversible (120 °)
- Maximum load
- 60 kg/m²
- Height
- Nominal: 2166 mm
- Width
- Nominal: 1169 mm
- Product weight
- 24.3 kg
- IK degree of protection
- IK08
- Number of Units in Package 1
- 1
- Number of Units in Package 2
- 8
- Warranty (in months)
- 18
- Model
- Compartment door
- Depth
- 26 mm
- EMC-version
- No
- Surface finishing
- Powder coating
- Version as glazed door
- Yes
- Version as door for disconnecting switch interlocking
- No
- Country of origin
- France
Standards & Compliance
- HS Code
- 9403.99
Cross References
- EAN 3606486378410
- SAP 1200698041
- Code 83799694
Product Documentation
