Door SFN/SM 2200X600
Pricing
Request a quote
We reply within 24 hours
Product Description

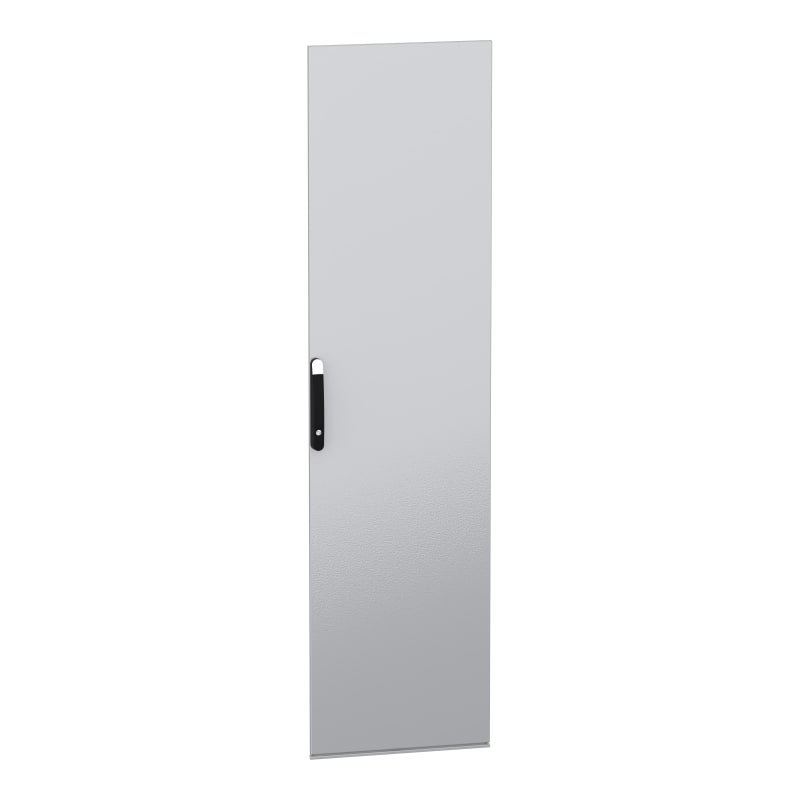

Schneider Electric NSYSFND226 Door, PanelSeT SFN/SM, complete with locking system, 2200x600.
Technical Specifications
- Manufacturer part number (MPN)
- NSYSFND226
- EAN / GTIN
- 3606486378205
- Sales unit
- pcs
- Dimensions
- 2200×600 mm
- Range
- PanelSeT
- Accessory / separate part category
- Enclosure accessory
- Product or component type
- Door
- Application
- Multi-purpose
- For enclosure nominal dimensions
- - H: 2200 mm W: 600 mm
- Mounting location
- Side; Front
- Range compatibility
- PanelSeT SFN
- Device composition
- 1 door; 1 lock with handle and 5 mm double bar insert; 1 locking bar system 4 points; 1 reinforcement frame; 4 hinges; 4 locking bar catches
- Quantity per set
- Set of 1
- Material
- Sheet steel
- Colour
- Grey (RAL 7035)
- Surface finish
- Epoxy-polyester powder
- Lock type
- Lock 5 mm double bar
- Number of locks
- 1
- Door type
- Plain
- Door opening side
- Reversible (120 °)
- Height
- Nominal: 2200 mm
- Width
- Nominal: 569 mm
- Product weight
- 42.8 kg
- IK degree of protection
- IK10
- Number of Units in Package 1
- 1
- Number of Units in Package 2
- 10
- Warranty (in months)
- 18
- Model
- Compartment door
- Depth
- 26 mm
- EMC-version
- No
- Surface finishing
- Powder coating
- Version as glazed door
- No
- Version as door for disconnecting switch interlocking
- No
- Country of origin
- France
Standards & Compliance
- HS Code
- 9403.99
Cross References
- EAN 3606486378205
- SAP 1200698022
- Code 83799574
Product Documentation
More from Schneider Electric
Schneider Electric
Door SFN/SM 1800X500
NSYSFND185
Schneider Electric
Floor-Standing Cabinet 16X10X4 U.PL.
NSYSM1610402D
Schneider Electric
Schneider Electric Control relay, TeSys Deca, 3NO+2NC, <=690V, 690V AC standard coil, snap-in terminals CAD32AY7
Schneider Electric
Schneider Electric TeSys LU9AP00 Door Handle Mounting Kit for LUB Modular
Schneider Electric
Floor-Standing Cabinet 20X10X4 M.PL.
NSYSM2010402DP
Schneider Electric
Etasjedistribution 4 apartment TN
NORETASJE4M
Schneider Electric
Etasjedistribution 6 apartment TN
NORETASJE6M
Schneider Electric

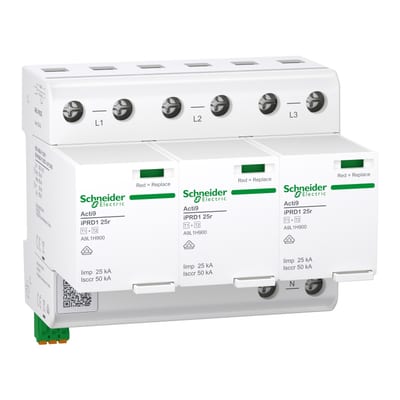

Schneider Electric A9L1H325 ACTI9 IPRD1 25R Surge Arrester, Type 1+2, 3P, 300 V, 25 kA, Remote Signalling
