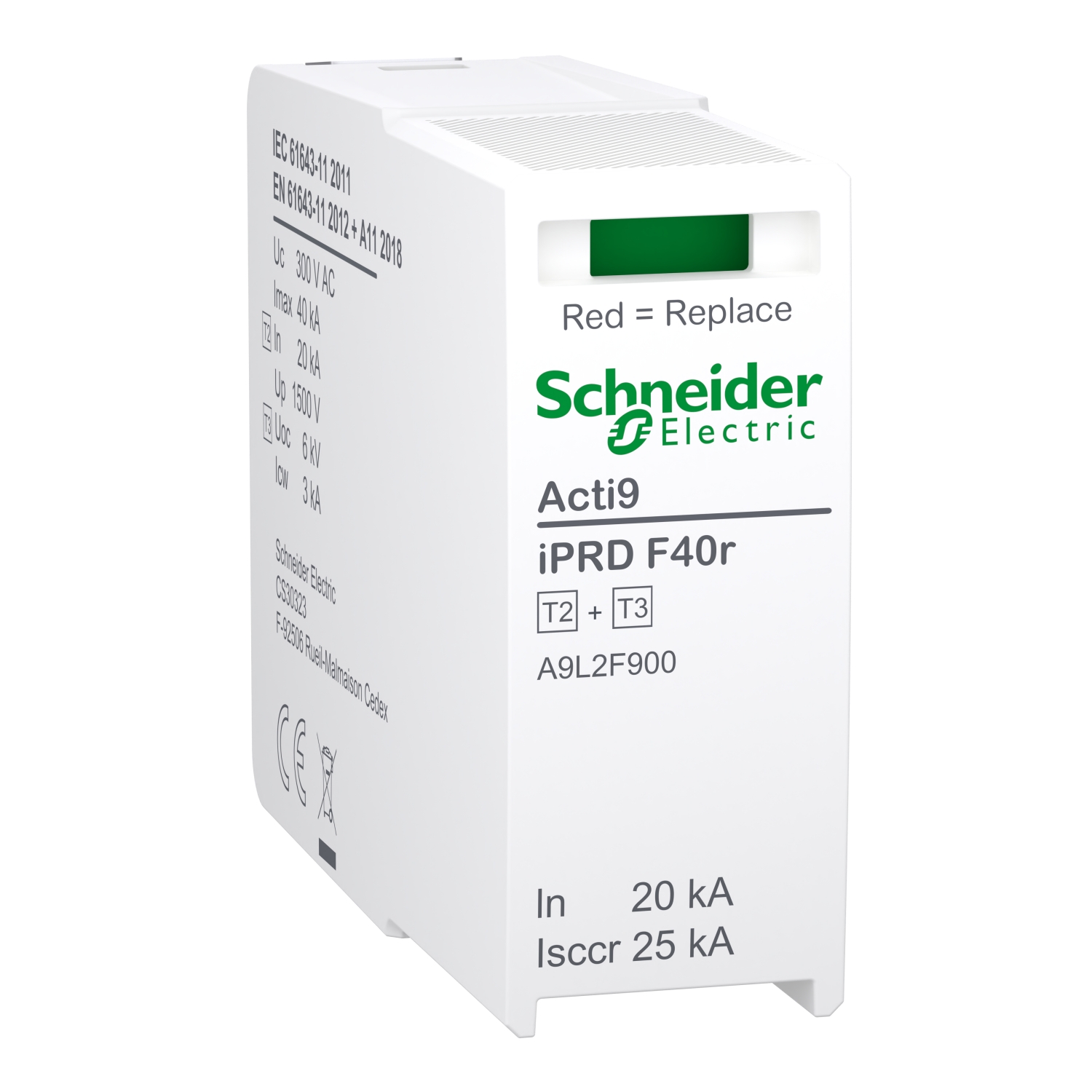

Res.plug IPRD1 F40R T2+T3 with fuse Phase-N

Schneider Electric A9L2F900 Spare Plug, Acti9 iPRD F40r, for surge protection device iPRD F40r 3P/3P+N, type 2+3, L-N, with fuse.

Manufacturer part number (MPN)

A9L2F900

EAN / GTIN

3606486808511

HS code

8536.90

Sales unit

pcs

Package quantity

24 pcs

range of product

Acti9

Product or component type

Cartridge

Device short name

iPRD F40r

Range compatibility

Acti9 iPRD F40r

Surge arrester type

Electrical distribution network

Standards

IEC 61643-11:2011; EN 61643-11:2012; EN 61643-11:2018/A11

Product certifications

CE

Surge arrester class type

Type 2 + 3

Surge arrester technology

MOV

Product destination

Surge protection device iPRD F40r 3P; Surge protection device iPRD F40r 3P + N

Condition of use

Fuse (integrated)

Earthing system

TT; TN-S; TN-C

[Ue] rated operational voltage

240 V AC 50/60 Hz

Nominal discharge current

Differential mode: 20 kA (L/N)

Maximum discharge current

Differential mode: 40 kA L/N

[Uc] maximum continuous operating voltage

Differential mode: 300 V L/N

Maximum [Up] voltage protection level

Differential mode 1.5 kV L/N

[Uoc] open circuit voltage

6000 V differential mode L/N

[Out] temporary overvoltage

337 V L/N 5 s withstand; 442 V L/N 120 min safe failure mode

Short-circuit withstand

50 kA

Local signalling

Operating state: flag (green); Fault indication: flag (red)

mounting mode

Plug-in

Mounting support

Into SPD module

9 mm pitches

2

Height

45 mm

Width

18 mm

Depth

57.2 mm

Product weight

69 g

Colour

White (RAL 9003)

Material

Thermoplastic

Response time

< 25 ns

IP degree of protection

IP20

Relative humidity

5…95 %

Operating altitude

0...4000 m

Ambient air temperature for storage

-40…85 °C

Warranty (in months)

18

HS Code

8536.90

• EAN 3606486808511
• SAP 1201002357
• Code 84341248
