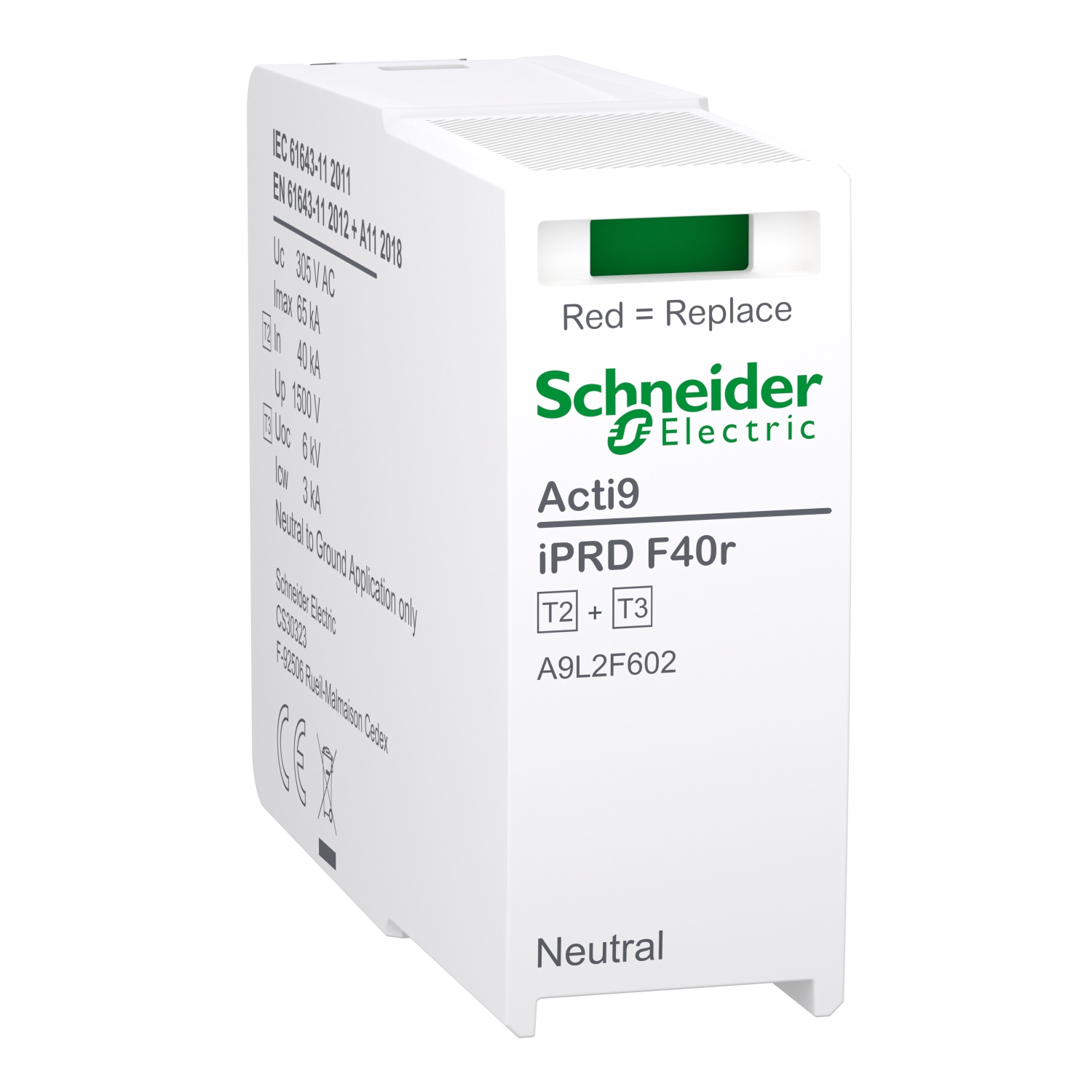

Res.plug IPRD1 F40R T2+T3 with fuse. N-PE
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric A9L2F602 Spare Plug, Acti9 iPRD F40r, foroverspenningsvern iPRD F40r 3P/3P+N, type 2+3, N-PE, with fuse.
Technical Specifications
- Manufacturer part number (MPN)
- A9L2F602
- EAN / GTIN
- 3606486808528
- HS code
- 8536.90
- Sales unit
- pcs
- Package quantity
- 24 pcs
- range of product
- Acti9
- Product or component type
- Cartridge
- Device short name
- iPRD F40r
- Range compatibility
- Acti9 iPRD F40r
- Surge arrester type
- Electrical distribution network
- Standards
- IEC 61643-11:2011; EN 61643-11:2012; EN 61643-11:2018/A11
- Product certifications
- CE
- Surge arrester class type
- Type 2 + 3
- Surge arrester technology
- GDT
- Product destination
- Surge protection device iPRD F40r 3P; Surge protection device iPRD F40r 3P + N
- Condition of use
- Fuse (integrated)
- Earthing system
- TT; TN-S
- [Ue] rated operational voltage
- 240 V AC 50/60 Hz
- Nominal discharge current
- Common mode: 40 kA (N/PE)
- Maximum discharge current
- Common mode: 65 kA N/PE
- [Uc] maximum continuous operating voltage
- Common mode: 305 V N/PE
- Maximum [Up] voltage protection level
- Common mode <1.5 kV N/PE
- [Uoc] open circuit voltage
- 6000 V common mode N/PE
- [Out] temporary overvoltage
- 1200 V N/PE 200 ms withstand
- [Ifi] follow current
- 100 A
- Local signalling
- Operating state: flag (green); Fault indication: flag (red)
- mounting mode
- Plug-in
- Mounting support
- Into SPD module
- 9 mm pitches
- 2
- Height
- 45 mm
- Width
- 18 mm
- Depth
- 57.2 mm
- Product weight
- 42 g
- Colour
- White (RAL 9003)
- Material
- Thermoplastic
- Response time
- < 100 ns
- IP degree of protection
- IP20
- Relative humidity
- 5…95 %
- Operating altitude
- 0...4000 m
- Ambient air temperature for storage
- -40…85 °C
- Warranty (in months)
- 18
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 3606486808528
- SAP 1201002355
- Code 84341260
Product Documentation
