Schneider Electric A9L1C300 ACTI9 IPRD1 C25R Replacement Cartridge, Type 1+2, Phase (L-N)

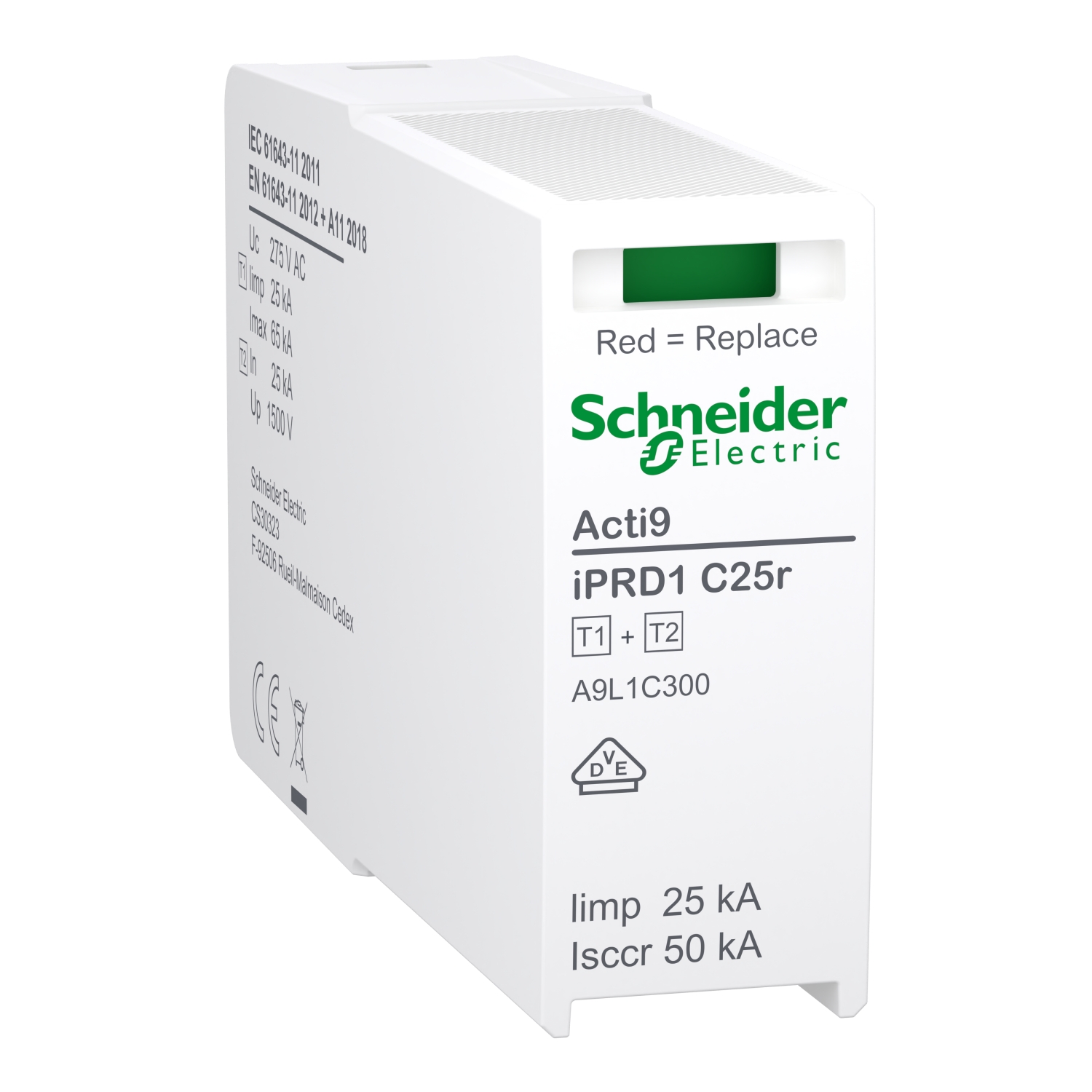

Schneider Electric A9L1C300 is a replacement plug-in protection cartridge for the Acti9 iPRD1 C25r combined Type 1 + Type 2 surge protective device (3P). It restores line-to-neutral (L-N) overvoltage protection after cartridge end-of-life, which the host device signals through its mechanical status window and remote signalling contact. The 18 mm cartridge is replaced from the front without disturbing the installed conductors. Maximum continuous operating voltage Uc 275 V AC. Conforms to IEC 61643-11 / EN 61643-11:2012+A11:2018.

Manufacturer part number (MPN)

A9L1C300

EAN / GTIN

3606486808603

Product type

Acti9 iPRD1 C25r replacement protection cartridge

Protection mode

Phase (L-N)

SPD class

Type 1 + Type 2 (combined)

Compatible host device

iPRD1 C25r, 3P

Max. continuous operating voltage Uc

275 V AC

Cartridge width

18 mm (1 module)

Mounting

front-plug into iPRD1 base

Conforms to

IEC 61643-11:2011, EN 61643-11:2012+A11:2018

HS code

8536.90

Sales unit

pcs

Package quantity

28 pcs

range of product

Acti9

Product or component type

Cartridge

Device short name

iPRD1 C25r

Range compatibility

Acti9 iPRD1 C25r

Surge arrester type

Electrical distribution network

Standards

IEC 61643-11:2011; EN 61643-11:2012; EN 61643-11:2018/A11

Product certifications

CE

Quality labels

VDE

Surge arrester class type

Type 1 + 2

Surge arrester technology

GDT

Product destination

Surge protection device iPRD1 C25r 3P

Earthing system

TN-C

[Ue] rated operational voltage

240 V AC 50/60 Hz

Nominal discharge current

25 kA

Maximum discharge current

65 kA

[Iimp] impulse current

25 kA 12.5 A.s

[Uc] maximum continuous operating voltage

275 V

Maximum [Up] voltage protection level

1.5 kV

[Ut] temporary overvoltage

442 V 120 min withstand

[Ifi] follow current

50 kA

Local signalling

Operating state: flag (green); Fault indication: flag (red)

mounting mode

Plug-in

Mounting support

Into SPD module

9 mm pitches

2

Height

45 mm

Width

18 mm

Depth

73.5 mm

Product weight

105 g

Colour

White (RAL 9003)

Material

Thermoplastic

IP degree of protection

IP20

Relative humidity

5…95 %

Operating altitude

0...2000 m

Ambient air temperature for storage

-40…85 °C

Warranty (in months)

18

Standard

IEC 61643-11

IP Rating

IP20

HS Code

8536.90

• EAN 3606486808603
• SAP 1201002342
