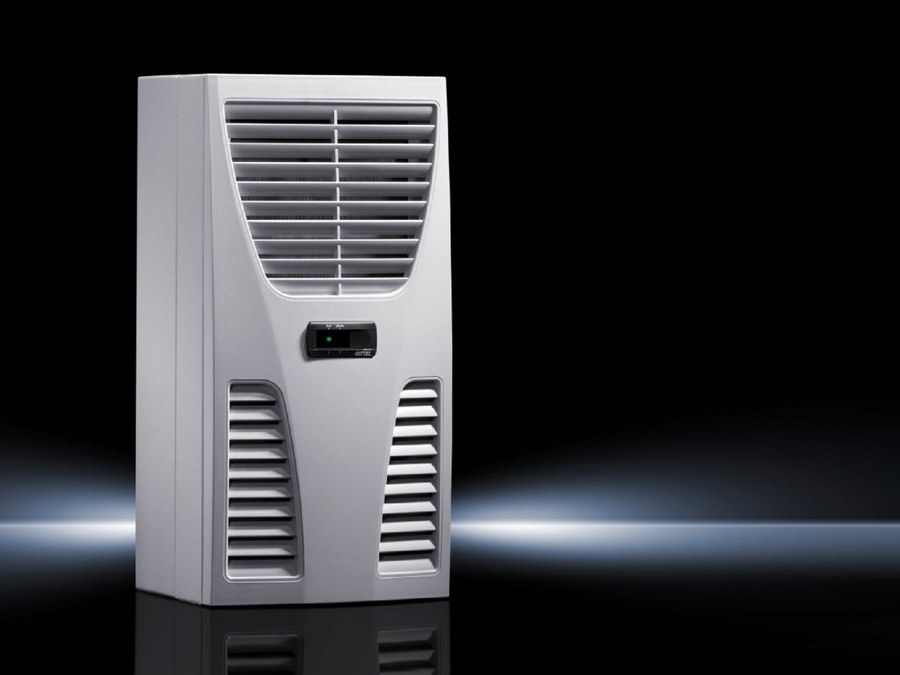

Rittal SK 3303.100 Wall-Mounted Cooling Unit 500 W
Pricing
Request a quote
We reply within 24 hours
Product Description
SK 3303.100 TopTherm PLUS wall-mounted cooling unit with 500 W useful cooling output (L35 L35 to DIN 3168), 230 V 50/60 Hz, R134a refrigerant, RiNano-coated condenser and electrical condensate evaporation. Dimensions 280 x 550 x 200 mm (W x H x D), 17 kg, internal circuit IP 54, integrated Basic controller.
Technical Specifications
- Series
- TopTherm
- Airflow
- 105 m³/h
- Power
- 24 W
- Voltage
- 230 VAC, 50/60 Hz
- Filter
- Replaceable mat
- Cut-out
- 177 x 177 mm
- Protection
- IP54 (external)
- Color
- RAL 7035
- Model designation
- SK 3303.100
- Product type
- Wall-mounted cooling units
- Material
- Sheet steel
- Supply includes
- Fully wired ready for connection; Drilling template; Assembly parts
- DIN EN 14511
- Cooling output L35 L35/60 Hz: 610 W; Cooling output L35 L50/50 Hz: 280 W; Cooling output L35 L50/60 Hz: 350 W
- Rated operating voltage
- 230 V, 1~, 50 Hz/60 Hz
- Air throughput (unimpeded air flow)
- External circuit: 345 m³/h; Internal circuit: 310 m³/h
- Design
- wall-mounted
- Dimensions
- Width: 280 mm; Height: 550 mm; Depth: 210 mm
- Protection category to IEC 60 529
- External circuit IP 34; Internal circuit IP 54
- Refrigerant/cooling medium
- Refrigerant: R134a; Quantity: 0.17 kg
- Temperature control
- Basic controller (factory setting +35 °C)
- Operating temperature range
- 20 °C...55 °C
- Setting range
- 30 °C...55 °C
- Power consumption Pel
- Power consumption L35 L35/50 Hz: 36 W; Power consumption L35 L35/60 Hz: 380 W; Power consumption L35 L50/50 Hz: 420 W; Power consumption L35 L50/60 Hz: 390 W
- Net weight
- 17 kg
- Gross weight
- 17.7 kg
- Customs tariff number
- 84158200
- ECLASS 8.0
- 27180704
- Approvals
- UL + C-UL (listed); UR + C-UR (recognized)
Standards & Compliance
- IP Rating
- IP54
- HS Code
- 8415.82
Product Documentation
