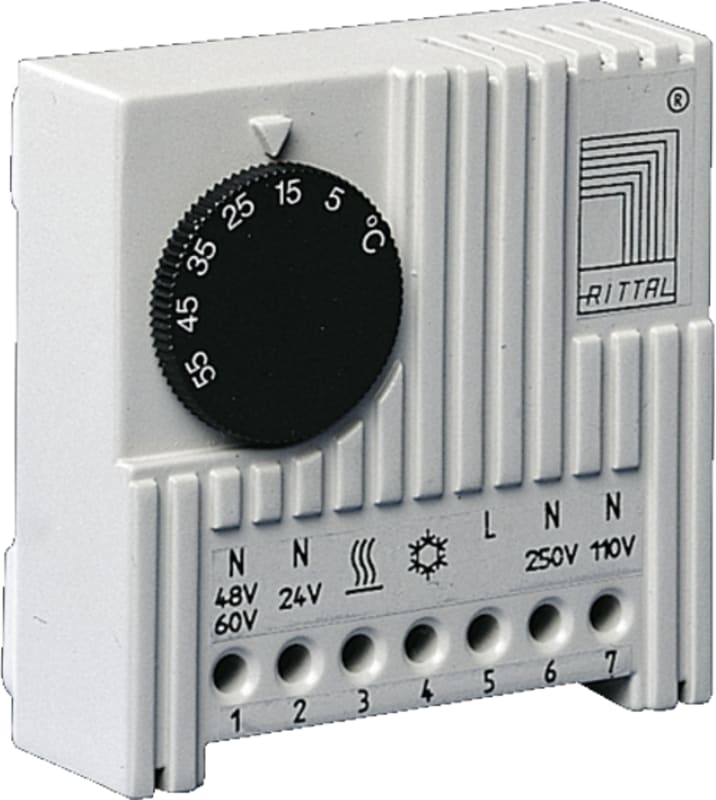

Thermostat (3110000)

Rittal 3110000 Manufacturer description: SK Thermostat, enclosure internal thermostat, 24-230 V, 1~, 24-60 V (DC), Colour RAL 7035, WHD: 71 x 71 x 33.5 mm.

Manufacturer part number (MPN)

3110000

EAN / GTIN

4028177036598

HS code

8536.90

Sales unit

pcs

Package quantity

100 pcs

Model designation

SK 3110.000

Product type

Thermostat

Technical specifications

Bi-metal controller as a temperature-sensitive element with thermal feedback; Contact population: Single-pole change-over contact as a quick-break contact; Permissible contact load: Category 5 – 3 (heating): AC 10 (4) A (inductive load at cos φ = 0.6) / category 5- 4 (cooling): AC 5 (4) A (inductive load at cos φ = 0.6) / DC = max. 30 W; Switching difference: approx. 1 K ± 0.8 K.

Color

RAL 7035

Packaging unit

1 pc(s).

Dimensions

Width: 71 mm; Height: 71 mm; Depth: 33.5 mm

Setting range

5 °C...60 °C; 41 °F...140 °F

Rated operating voltage

24 V - 230 V, 1~; 24 V - 60 V (DC)

Net weight

0.095 kg

Gross weight

0.12 kg

Customs tariff number

90321020

ETIM 9

EC004587

ETIM 8

EC004587

ECLASS 8.0

27210707

Approvals

UL + C-UL (listed); VDE

HS Code

8536.90

• EAN 4028177036598
• SAP 1000047307
• Code 8804118
