Rittal SK Blue e+ Outlet Filter for 3238.7xx Fan-Filter Units
Part number3238300EAN / GTIN4028177997653HS code3926.90
Enclosures
Enclosure Cooling
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description

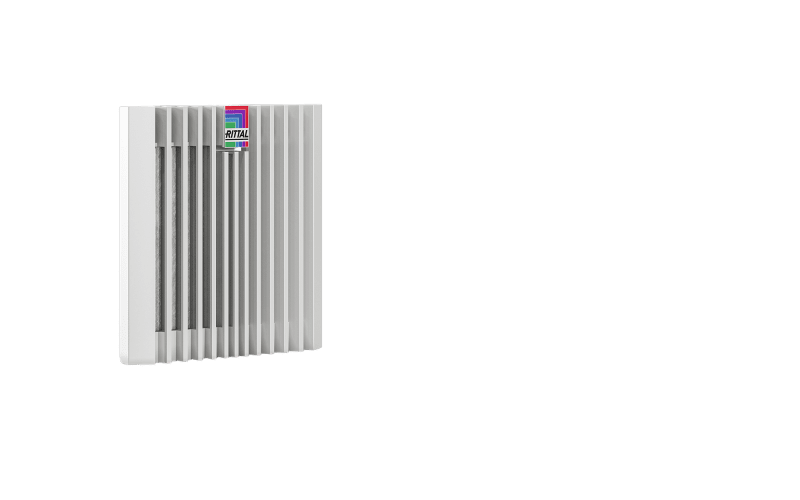

Rittal 3238300 SK Blue e+ outlet filter for fan-and-filter units in the 3238.7xx series. Wall-mounted plastic housing 148.5 x 148.5 mm, RAL 7035, IP54 protection with pleated filter.
Technical Specifications
- Manufacturer part number (MPN)
- 3238300
- EAN / GTIN
- 4028177997653
- Sales unit
- pcs
- Package quantity
- 56 pcs
- Model designation
- SK 3238.300
- Product type
- Blue e+ outlet filter
- Version
- wall-mounted
- Material
- Plastic
- Color
- RAL 7035
- Supply includes
- Outlet Filters; Pleated filter
- Mounting cut-out
- Width of opening: 124 mm; Cut-out height: 124 mm
- Suitable for Model No.
- SK 3238.7xx
- Dimensions
- Width: 148.5 mm; Height: 148.5 mm; Depth: 34.2 mm
- Protection category NEMA
- Type 12 with chopped fiber filter/pleated filter; Type 3, 3R, 4, 4X with chopped fiber filter/pleated filter and hose-proof hood
- Protection category IP to IEC 60 529
- IP 54 with chopped fiber filter/pleated filter; IP 55 with pleated filter and absorber mat; IP 56 with chopped fiber filter/pleated filter and hose-proof hood
- Packaging unit
- 1 pc(s).
- Net weight
- 0.161 kg
- Gross weight
- 0.206 kg
- Customs tariff number
- 39269097
- ETIM 9
- EC002513
- ETIM 8
- EC002513
- ECLASS 8.0
- 27180706
- Approvals
- CSA; UL + C-UL - FTTA; UR + C-UR (recognized)
- Mounting method
- Snap mounting
- Colour
- Grey
- Width
- 148.5 mm
- Height
- 148.5 mm
- Depth
- 34.2 mm
- RAL-number
- 7035
- Suitable for 19 inch rack mounting
- No
- EMC-version
- No
- Degree of protection (IP)
- IP54
- With protective cover
- No
- With filter
- Yes
- Roof fan
- No
- Built as slide-in fan
- No
- Air circulator
- No
- Suitable for wall built-in
- Yes
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 3926.90
Cross References
- EAN 4028177997653
- SAP 1200740728
- Code 83882250
Product Documentation
