Rittal

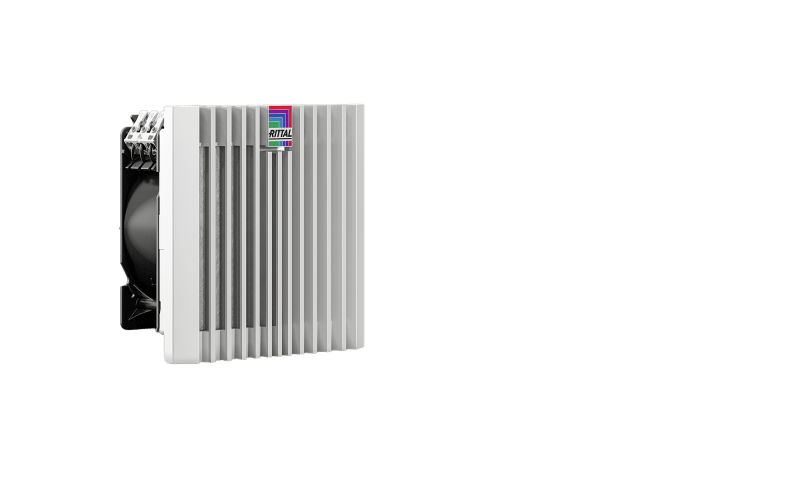

Filter Fan 63 m³/h (3238700)
Part number3238700EAN / GTIN4028177997615HS code8414.59
Enclosures
Enclosure Cooling
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
Rittal 3238700 Manufacturer description: SK Blue e+ filter fan, 63/72 m³/h, 230 V, 1~, 50 Hz/60 Hz, WHD; 148.5 x 148.5 x 82.5 mm, RAL 7035. SK Blue e+ fan- and filter unit, 63/72 m³/t, 230 V, 1~, 50 Hz/60 Hz, RAL 7035.
Technical Specifications
- Manufacturer part number (MPN)
- 3238700
- EAN / GTIN
- 4028177997615
- Sales unit
- pcs
- Model designation
- SK 3238.700
- Product type
- Blue e+ filter fan
- Version
- wall-mounted
- Material
- Plastic
- Color
- RAL 7035
- Supply includes
- Complete unit ready to install, including pleated filter
- Fan
- Axial, shaded pole motor
- Unimpeded air flow (with pleated filter)
- At 50 Hz: 63 m³/h; At 60 Hz: 72 m³/h; At 50 Hz: 37.08 cfm; At 60 Hz: 42.38 cfm
- Unimpeded air flow (with chopped fiber filter)
- At 50 Hz: 53 m³/h; At 60 Hz: 64 m³/h; At 50 Hz: 31.2 cfm; At 60 Hz: 37.7 cfm
- Rated operating voltage
- 230 V, 1~, 50 Hz/60 Hz
- Rated power Pel
- At 50 Hz: 14.7 W; At 60 Hz: 16.5 W
- Dimensions
- Width: 148.5 mm; Height: 148.5 mm; Depth: 82.5 mm
- Installation depth
- 64 mm
- Mounting cut-out
- Width of opening: 124 mm; Cut-out height: 124 mm
- Protection category IP to IEC 60 529
- IP 54 with chopped fiber filter/pleated filter; IP 55 with pleated filter and absorber mat; IP 56 with chopped fiber filter/pleated filter and hose-proof hood
- Protection category NEMA
- Type 12 with chopped fiber filter/pleated filter; Type 3, 3R, 4, 4X with chopped fiber filter/pleated filter and hose-proof hood
- Operating temperature range
- -15 °C...55 °C; 5 °F...131 °F
- Storage temperature range
- -30 °C...70 °C; -22 °F...158 °F
- Noise pressure level
- At 50 Hz: 52 dB(A); At 60 Hz: 54 dB(A)
- Packaging unit
- 1 pc(s).
- Net weight
- 0.66 kg
- Gross weight
- 0.86 kg
- Customs tariff number
- 84145915
- ETIM 9
- EC000320
- ETIM 8
- EC000320
- ECLASS 8.0
- 27180716
- Approvals
- CSA; 30 - KC Korea; UL + C-UL - FTTA; UR + C-UR (recognized)
- Mounting method
- Snap mounting
- Colour
- Grey
- Width
- 148.5 mm
- Height
- 148.5 mm
- Depth
- 82.5 mm
- RAL-number
- 7035
- Voltage type
- AC
- Suitable for 19 inch rack mounting
- No
- Number of fans
- 1
- EMC-version
- No
- Degree of protection (IP)
- IP54
- With protective cover
- No
- With filter
- Yes
- Rated power
- 14.7 W
- Roof fan
- No
- Built as slide-in fan
- No
- Volume flow, freeblowing
- 55 m³/h
- Air circulator
- No
- Suitable for wall built-in
- Yes
- Noise emission
- 0 dB(A)
- Operating voltage AC 50 Hz
- 207–253 V
- Operating voltage AC 60 Hz
- 207–253 V
- Country of origin
- China
Standards & Compliance
- HS Code
- 8414.59
Cross References
- EAN 4028177997615
- SAP 1200740725
- Code 83882251
Product Documentation
Document preview: Rittal 3238700 — Data Sheet (OEM)
