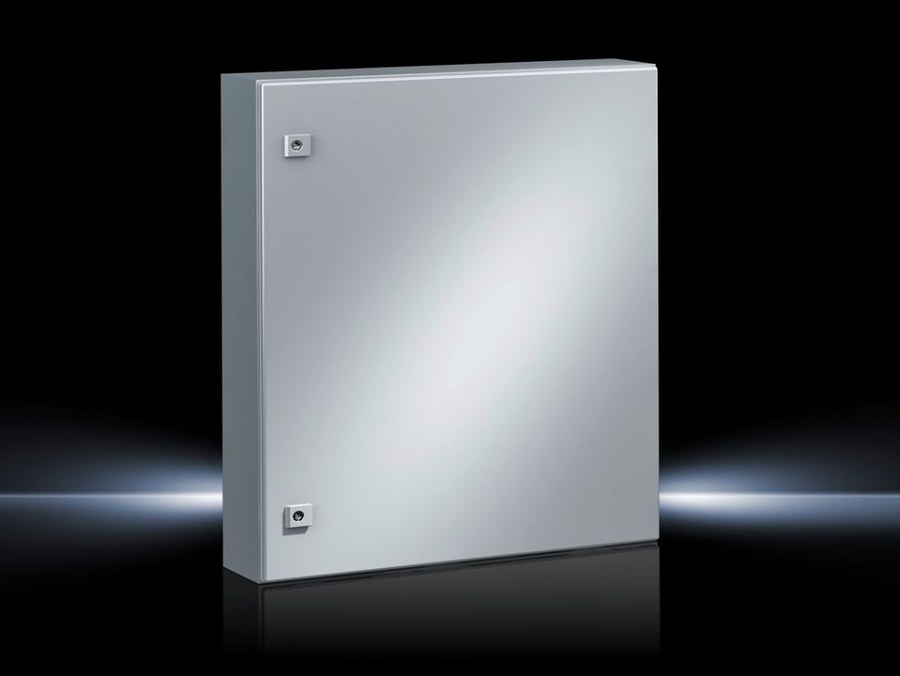

Rittal AE 1076.500 Compact Enclosure 760X600X210
Pricing
Request a quote
We reply within 24 hours
Product Description
Rittal 1076500 Manufacturer description: AE Compact enclosure, WHD: 600x760x210 mm, Sheet steel, with mounting plate, single-door, with two cam locks. AE compact enclosure 760x600x210 mm in RAL 7035 sheet steel. Large-format single-door cabinet with IP66 protection for PLC racks, VFD installations.
Technical Specifications
- Series
- AE
- Dimensions
- 760 x 600 x 210 mm (HxWxD)
- Material
- Sheet steel, RAL 7035
- Door
- Single, 120° opening
- Protection
- IP66 / NEMA 4
- Mounting plate
- Included
- Lock
- Double-bit
- Model designation
- AE 1076.500
- Product type
- Wall-mounted AE
- Surface finish
- Housing and door: Dipcoat primed, powder-coated on the outside, textured paint; Mounting panel: Zinc-plated
- Color
- RAL 7035
- Supply includes
- Housing with hinged door(s), of all-round solid construction; Flange (gland) plate(s) in enclosure base; Mounting panel; Lock: 3 mm double-bit
- Protection category NEMA
- NEMA 4
- Protection category IP to EN 60 529
- IP 66
- IK code
- IK08
- Material thickness - door
- 2 mm
- Material thickness - enclosure
- 1.38 mm
- Material thickness – mounting plate
- 3 mm
- Dimensions of mounting plate (W x H)
- 549 mm x 730 mm
- Interchangeable door catch
- Yes
- Gland plate
- Size: 5; Qty.: 1
- Base material
- Carbon steel
- Packaging unit
- 1 pc(s).
- Net weight
- 28.5 kg
- Gross weight
- 30.3 kg
- Customs tariff number
- 94032080
- ECLASS 8.0
- 27180101
- Approvals
- DNV; Lloyds Register; UL + C-UL (listed)
Standards & Compliance
- Material
- Sheet steel RAL 7035
- IP Rating
- IP66
- HS Code
- 7326.90
