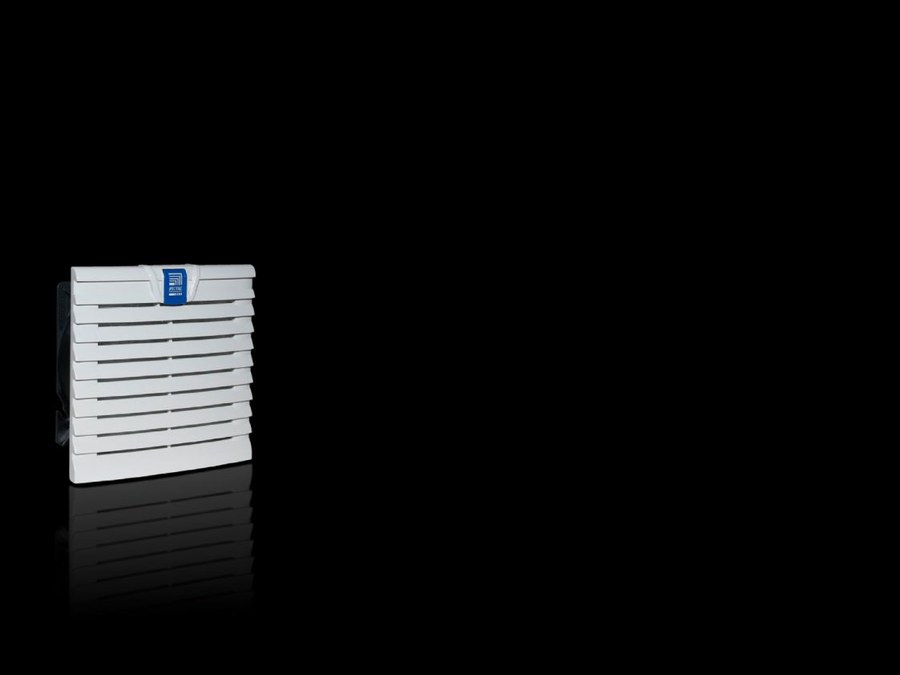

Rittal SK 3238.100 TopTherm Filter Fan Unit
Pricing
Request a quote
We reply within 24 hours
Product Description
Manufacturer description: SK Fan-and-filter unit TopTherm, 30.6/37.1 cfm 230 V, 1~, 50/60 Hz, WHD: 148.5 x 148.5 x 16 mm. SK 3238.100 TopTherm filter fan unit for tool-free surface mounting, air throughput 52/63 m3/h (50/60 Hz), 230 V 1~ 50/60 Hz, dimensions 148.5 x 148.5 x 16 mm (W x H x D), mounting cut-out 124 x 124 mm, protection category IP 54, supplied with chopped fiber filter mat.
Technical Specifications
- Type
- Enclosure thermostat
- Contact
- Changeover (NO/NC)
- Setting range
- 0–60°C
- Hysteresis
- ~4 K
- Rated current
- 10 A / 250 VAC
- Mounting
- Snap-on DIN rail or screw
- Sensor
- Bimetal
- Model designation
- SK 3238.100
- Product type
- TopTherm Filter Fan Units
- Version
- wall-mounted
- Product changes
- Since May 2024, the cover for the connection terminal is no longer part of the TopTherm filter fan. During testing, it was found not to be required by the standards and does not impair function or operational safety.
- Color
- RAL 7035
- Supply includes
- Complete unit ready to install, including chopped fiber filter mat
- Fan
- Axial, shaded pole motor
- Unimpeded air flow (with pleated filter)
- At 50 Hz: 63 m³/h; At 60 Hz: 72 m³/h; At 50 Hz: 37.08 cfm; At 60 Hz: 42.38 cfm
- Unimpeded air flow (with chopped fiber filter)
- At 50 Hz: 52 m³/h; At 60 Hz: 63 m³/h; At 50 Hz: 30.6 cfm; At 60 Hz: 37.1 cfm
- Rated operating voltage
- 230 V, 1~, 50 Hz/60 Hz
- Rated power Pel
- At 50 Hz: 15 W; At 60 Hz: 14 W
- Dimensions
- Width: 148.5 mm; Height: 148.5 mm
- Installation depth
- 58.5 mm
- Mounting cut-out
- Width of opening: 124 mm; Cut-out height: 124 mm
- Protection category IP to IEC 60 529
- IP 54 with chopped fiber filter/pleated filter; IP 56 with chopped fiber filter/pleated filter and hose-proof hood
- Protection category NEMA
- Type 12 with chopped fiber filter/pleated filter; Type 3; Type 3R; Type 4; Type 4X with chopped fiber filter/pleated filter and hose-proof hood
- Operating temperature range
- -15 °C...55 °C; 5 °F...131 °F
- Storage temperature range
- -30 °C...70 °C; -22 °F...158 °F
- Noise pressure level
- At 50 Hz: 46 dB(A); At 60 Hz: 49 dB(A)
- Packaging unit
- 1 pc(s).
- Net weight
- 0.9 kg
- Gross weight
- 0.9 kg
- Customs tariff number
- 84145915
- ETIM 9
- EC000320
- ETIM 8
- EC000320
- ECLASS 8.0
- 27180716
- Approvals
- CSA; 30 - KC Korea; UL + C-UL - FTTA; UR + C-UR (recognized)
Standards & Compliance
- HS Code
- 8414.59
Product Documentation
More from Rittal
Rittal
Compact enclosure AX 300X400X210
1034000
Rittal
Thermostat (3110000)
Rittal
Burmuttere for 19", M6
2094200
Rittal
Screws FOR 19" Profiles M6
7094100
Rittal
Filter Fan 63 m³/h (3238700)
Rittal
Compact enclosure AX 800X1000X300
1180000
Rittal
Earth Busbar 2M 133 points
SESV2612
Rittal
Rittal SK Blue e+ Outlet Filter for 3238.7xx Fan-Filter Units
3238300
Catalogue entry last verified: 2026-08-13. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
