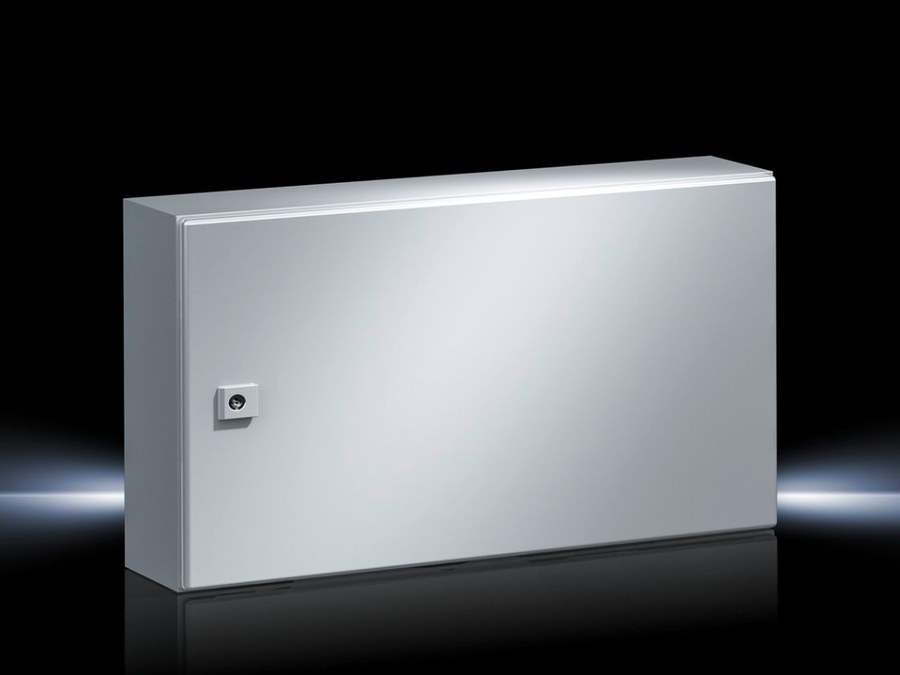

Rittal AE 1039.500 Compact Enclosure 380X380X210
Pricing
Request a quote
We reply within 24 hours
Product Description
Rittal 1039500 Manufacturer description: AE Compact enclosure, WHD: 600x380x210 mm, Sheet steel, with mounting plate, single-door, with one cam lock. AE compact enclosure 380x380x210 mm in RAL 7035 sheet steel. Square footprint provides flexible mounting plate layout for medium-density component install.
Technical Specifications
- Series
- AE
- Dimensions
- Width: 600 mm; Height: 380 mm; Depth: 210 mm
- Material
- Sheet steel, RAL 7035
- Door
- Single, 120° opening
- Protection
- IP66 / NEMA 4
- Mounting plate
- Included
- Lock
- Double-bit
- Model designation
- AE 1039.500
- Product type
- Wall-mounted AE
- Surface finish
- Housing and door: Dipcoat primed, powder-coated on the outside, textured paint; Mounting panel: Zinc-plated
- Color
- RAL 7035
- Supply includes
- Housing with hinged door(s), of all-round solid construction; Flange (gland) plate(s) in enclosure base; Mounting panel; Lock: 3 mm double-bit
- Protection category NEMA
- NEMA 4
- Protection category IP to EN 60 529
- IP 66
- IK code
- IK08
- Material thickness - door
- 1.5 mm
- Material thickness - enclosure
- 1.38 mm
- Material thickness – mounting plate
- 2.5 mm
- Dimensions of mounting plate (W x H)
- 549 mm x 355 mm
- Interchangeable door catch
- Yes
- Gland plate
- Size: 5; Qty.: 1
- Base material
- Carbon steel
- Packaging unit
- 1 pc(s).
- Net weight
- 14.274 kg
- Gross weight
- 15.025 kg
- Customs tariff number
- 94032080
- ECLASS 8.0
- 27180101
- Approvals
- DNV; Lloyds Register; UL + C-UL (listed)
Standards & Compliance
- Material
- Sheet steel RAL 7035
- IP Rating
- IP66
- HS Code
- 7326.90
Product Documentation
More from Rittal
Rittal
Rittal SZ 2411.000 System Lamp LED
2411000
Rittal
Rittal AE 1076.500 Compact Enclosure 760X600X210
1076500
Rittal
Rittal SK 3238.100 TopTherm Filter Fan Unit
3238100
Rittal
Compact enclosure AX 300X400X210
1034000
Rittal
Thermostat (3110000)
Rittal
Burmuttere for 19", M6
2094200
Rittal
Screws FOR 19" Profiles M6
7094100
Rittal
Filter Fan 63 m³/h (3238700)
Catalogue entry last verified: 2026-08-20. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
Frequently asked questions
- Where can I buy 1039500?
- 1039500 can be ordered from cballast.com as a Rittal catalogue item: request a quotation on this page or email sales@cballast.com, and the order ships worldwide.
- What is the manufacturer part number for this Rittal product?
- The manufacturer part number is 1039500.
- What is the HS code for 1039500?
- The customs tariff (HS) code for 1039500 is 7326.90.
- Who manufactures 1039500?
- 1039500 is a Rittal product in the Enclosures range.
- Is a datasheet available for 1039500?
- Yes — the 1039500 datasheet can be viewed and downloaded on this page.
- What is the minimum order quantity for 1039500?
- The minimum order quantity is 1.
- Is 1039500 available?
- Yes — 1039500 is available to order: fulfilment is from supplier stock in cBallast's European network, dispatched directly from the warehouse to the customer, with the exact lead time stated in the quotation (reply within 24 hours).
