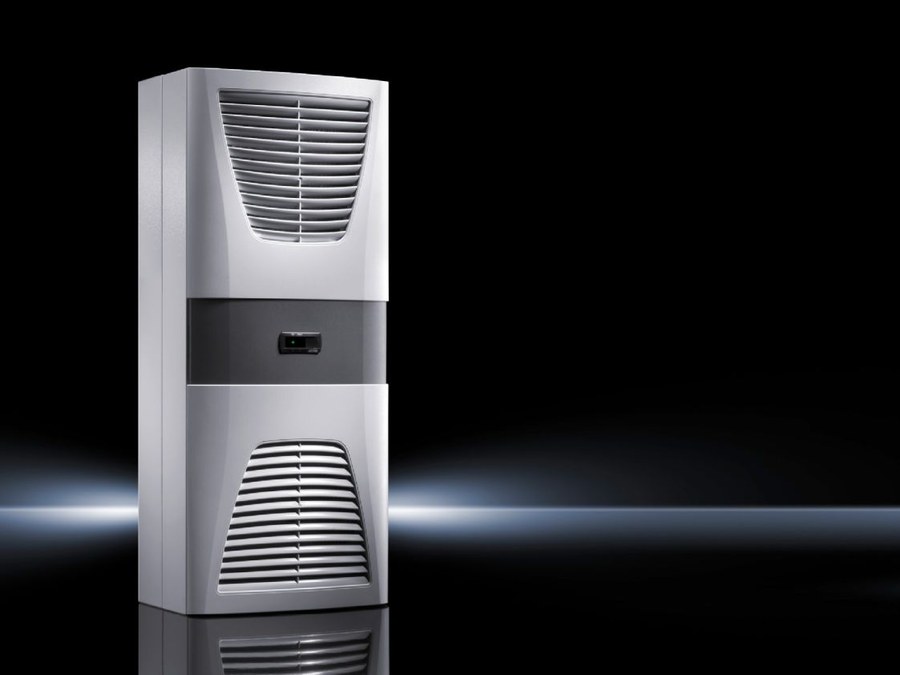

Rittal SK 3304.100 Wall-Mounted Cooling Unit 1000 W
Pricing
Request a quote
We reply within 24 hours
Product Description
Rittal SK 3304.100 TopTherm wall-mounted cooling unit, 1000 W cooling capacity. Rittal Blue e+ enclosure cooling unit for industrial control cabinets and marine electrical enclosures. IP55 to inside, IP34 outside. 400 V 3-phase or single-phase (specify at RFQ). Applications: PLC cabinet cooling, drive cabinet cooling, marine engine-room control panel cooling. Direct interchange to Pfannenberg DTS 3061 and STULZ CyberCool in equivalent BTU/h rating. Filter mat SK 3172.207 replacement stocked.
Technical Specifications
- Series
- TopTherm
- Airflow
- 230 m³/h
- Power
- 47 W
- Voltage
- 230 VAC, 50/60 Hz
- Filter
- Replaceable mat
- Cut-out
- 252 x 252 mm
- Protection
- IP54 (external)
- Color
- RAL 7035
- Model designation
- SK 3304.100
- Product type
- Wall-mounted cooling units
- Material
- Sheet steel
- Supply includes
- Fully wired ready for connection; Drilling template; Assembly parts
- DIN EN 14511
- Cooling output L35 L35/60 Hz: 1,060 W; Cooling output L35 L50/50 Hz: 790 W; Cooling output L35 L50/60 Hz: 840 W
- Rated operating voltage
- 230 V, 1~, 50 Hz/60 Hz
- Air throughput (unimpeded air flow)
- External circuit: 900 m³/h; Internal circuit: 600 m³/h
- Design
- wall-mounted
- Dimensions
- Width: 400 mm; Height: 950 mm; Depth: 260 mm
- Protection category to IEC 60 529
- External circuit IP 34; Internal circuit IP 54
- Refrigerant/cooling medium
- Refrigerant: R134a; Quantity: 0.325 kg
- Temperature control
- Basic controller (factory setting +35 °C)
- Operating temperature range
- 20 °C...55 °C
- Setting range
- 30 °C...55 °C
- Power consumption Pel
- Power consumption L35 L35/50 Hz: 825 W; Power consumption L35 L35/60 Hz: 775 W; Power consumption L35 L50/50 Hz: 875 W; Power consumption L35 L50/60 Hz: 835 W
- Net weight
- 35 kg
- Gross weight
- 38 kg
- Customs tariff number
- 84158200
- Approvals
- UL + C-UL (listed)
Standards & Compliance
- IP Rating
- IP54
- HS Code
- 8415.82
Product Documentation
More from Rittal
Rittal
Rittal SV 3450.500 Conductor Terminal 1-4 MM2
3450500
Rittal
Rittal AE 1039.500 Compact Enclosure 380X380X210
1039500
Rittal
Rittal SZ 2411.000 System Lamp LED
2411000
Rittal
Rittal AE 1076.500 Compact Enclosure 760X600X210
1076500
Rittal
Rittal SK 3238.100 TopTherm Filter Fan Unit
3238100
Rittal
Compact enclosure AX 300X400X210
1034000
Rittal
Thermostat (3110000)
Rittal
Burmuttere for 19", M6
2094200
Catalogue entry last verified: 2026-08-29. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
Frequently asked questions
- Where can I buy 3304100?
- 3304100 can be ordered from cballast.com as a Rittal catalogue item: request a quotation on this page or email sales@cballast.com, and the order ships worldwide.
- What is the manufacturer part number for this Rittal product?
- The manufacturer part number is 3304100.
- What is the HS code for 3304100?
- The customs tariff (HS) code for 3304100 is 8415.82.
- Who manufactures 3304100?
- 3304100 is a Rittal product in the Enclosures range.
- Is a datasheet available for 3304100?
- Yes — the 3304100 datasheet can be viewed and downloaded on this page.
- What is the minimum order quantity for 3304100?
- The minimum order quantity is 1.
- Is 3304100 available?
- Yes — 3304100 is available to order: fulfilment is from supplier stock in cBallast's European network, dispatched directly from the warehouse to the customer, with the exact lead time stated in the quotation (reply within 24 hours).
