Rittal SV 3450.500 Conductor Terminal 1-4 MM2
Pricing
Request a quote
We reply within 24 hours
Product Description

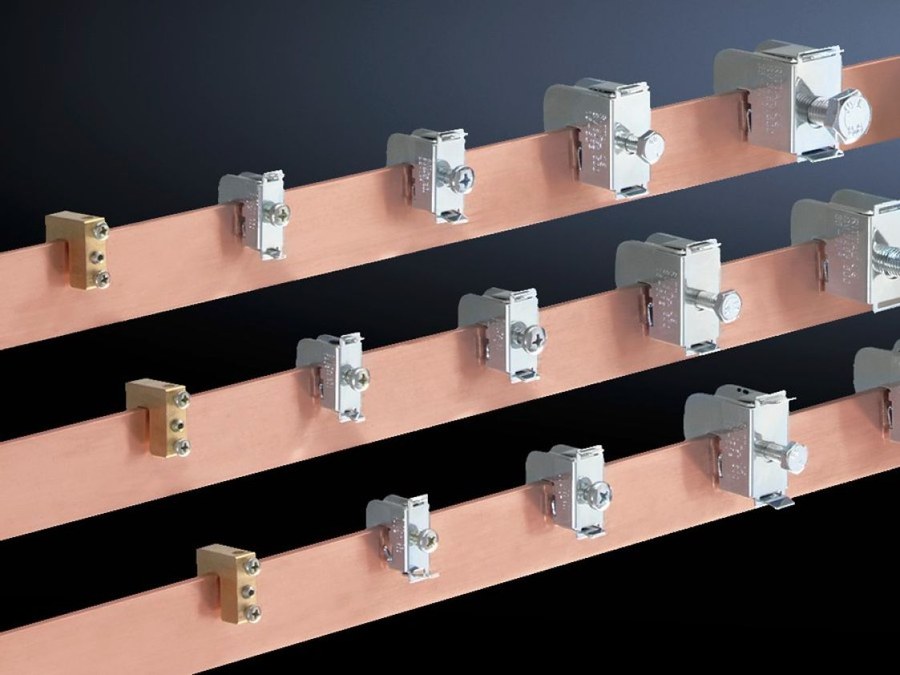

Rittal 3450500 SV 3450.500 conductor terminal for connecting round conductors and laminated copper bars, conductor cross-section 1-4 mm2, for busbar thickness 5 mm. Carbon steel, zinc-plated and passivated. Supplied in packs of 15. Installed in low-voltage switchgear panels, main and sub-distribution boards, motor control centres and DIN-rail consumer units.
Technical Specifications
- Series
- SV
- Cross section
- 30 x 5 mm
- Length
- 500 mm
- Material
- E-Cu, tin-plated
- Rated current
- 200 A (at 35°C rise)
- Standard
- IEC 61439
- Model designation
- SV 3450.500
- Product type
- Conductor terminal
- Surface finish
- Zinc-plated, passivated
- Connection of round conductors
- 1 ‐ 4 mm²
- For busbar thickness
- 5 mm
- Packaging unit
- 15 pc(s).
- Net weight
- 0.225 kg
- Gross weight
- 0.278 kg
- PCF/VE (cradle-to-gate)
- 1 kg CO2 eq (Cat B)
- Information regarding the PCF class
- Category B: PCF value (cradle-to-gate) calculated approximately on the basis of the product weight and self-declared
- Customs tariff number
- 85369010
- ETIM 9
- EC000001
- ETIM 8
- EC000001
- ECLASS 8.0
- 27141146
Standards & Compliance
- Material
- Tin-plated copper (E-Cu)
- HS Code
- 8536.90
Product Documentation
