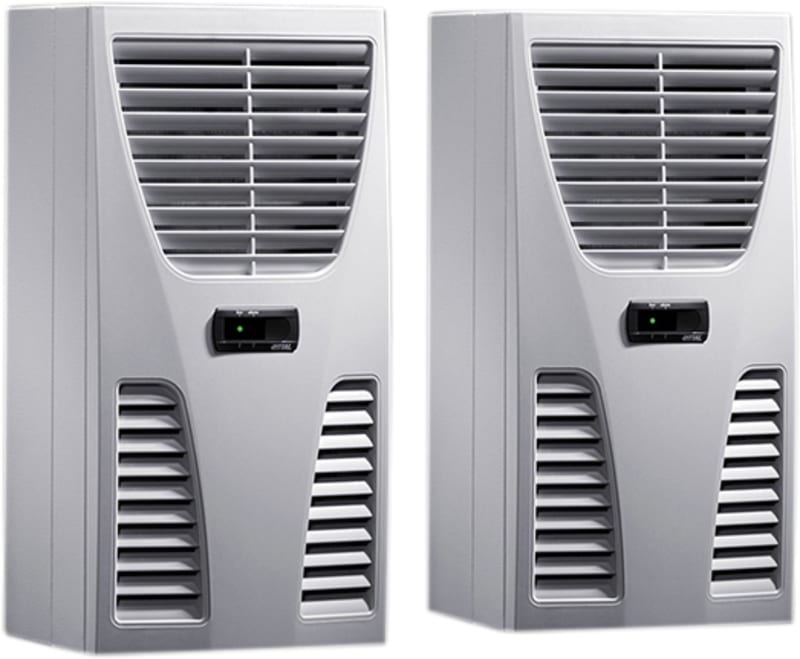

Rittal SK 3302.100 TopTherm Fan-and-Filter Unit
Pricing
Request a quote
We reply within 24 hours
Product Description
Rittal 3302100 Manufacturer description: SK TopTherm cooling unit, wall-mounted, 0.31 kW, 230 V, 1~, 50/60; Hz, sheet steel, WHD: 280 x 550 x 140 mm. SK 3302.100 TopTherm fan-and-filter unit with 55 m³/h airflow for enclosure valveation.
Technical Specifications
- Series
- TopTherm
- Airflow
- 55 m³/h
- Power
- 19 W
- Voltage
- 230 VAC, 50/60 Hz
- Filter
- Replaceable mat
- Cut-out
- 177 x 177 mm
- Protection
- IP54 (external)
- Color
- RAL 7035
- Model designation
- SK 3302.100
- Product type
- TopTherm wall-mounted cooling
- Design
- wall-mounted
- Material
- Sheet steel
- Colour
- RAL 7035
- Supply includes
- Condenser with hydrophobic RiNano coating; Fully wired ready for connection (plug-in terminal strip); Drilling template; Assembly parts
- DIN EN 14511
- Cooling output L35 L35/60 Hz: 0.33 kW; Cooling output L35 L50/50 Hz: 0.15 kW; Cooling output L35 L50/60 Hz: 0.18 kW
- Rated operating voltage
- 230 V, 1~, 50 Hz/60 Hz
- Air throughput (unimpeded air flow)
- External circuit: 310 m³/h; Internal circuit: 345 m³/h
- Energy efficiency ratio (EER) 50/60
- Refrigeration factor L35 L35 (EER) 50 Hz: 1.07
- Hz L35 L35
- Refrigeration factor L35 L35 (EER) 60 Hz: 1.06
- Dimensions
- Width: 280 mm; Height: 550 mm; Depth: 140 mm
- Protection category to IEC 60 529
- External circuit IP 34; Internal circuit IP 54
- Protection category NEMA
- UL Type 12
- Refrigerant/cooling medium
- Refrigerant: R-513A; Quantity: 0.11 kg; Global Warming Potential (GWP): 631; CO2 equivalent (CO2e): 0.07 t
- Temperature control
- Basic controller (factory setting +35 °C)
- Operating temperature range
- 10 °C...50 °C
- Operating temperature max @60 Hz
- 50 °C
- Storage temperature range
- -40 °C...70 °C
- Setting range
- 30 °C...50 °C
- Power consumption Pel
- Power consumption L35 L35/50 Hz: 0.29 kW; Power consumption L35 L35/60 Hz: 0.31 kW; Power consumption L35 L50/50 Hz: 0.32 kW; Power consumption L35 L50/60 Hz: 0.33 kW
- Permissible operating pressure (p. max.)
- 25 bar
- Net weight
- 12.225 kg
- Gross weight
- 12.868 kg
- Customs tariff number
- 84158200
- ETIM 9
- EC000855
- ETIM 8
- EC000855
- ECLASS 8.0
- 27180704
- Approvals
- 30 - KC Korea; UL + C-UL (listed); UL + C-UL - FTTA; UR + C-UR (recognized)
Standards & Compliance
- IP Rating
- IP54
- HS Code
- 7326.90
