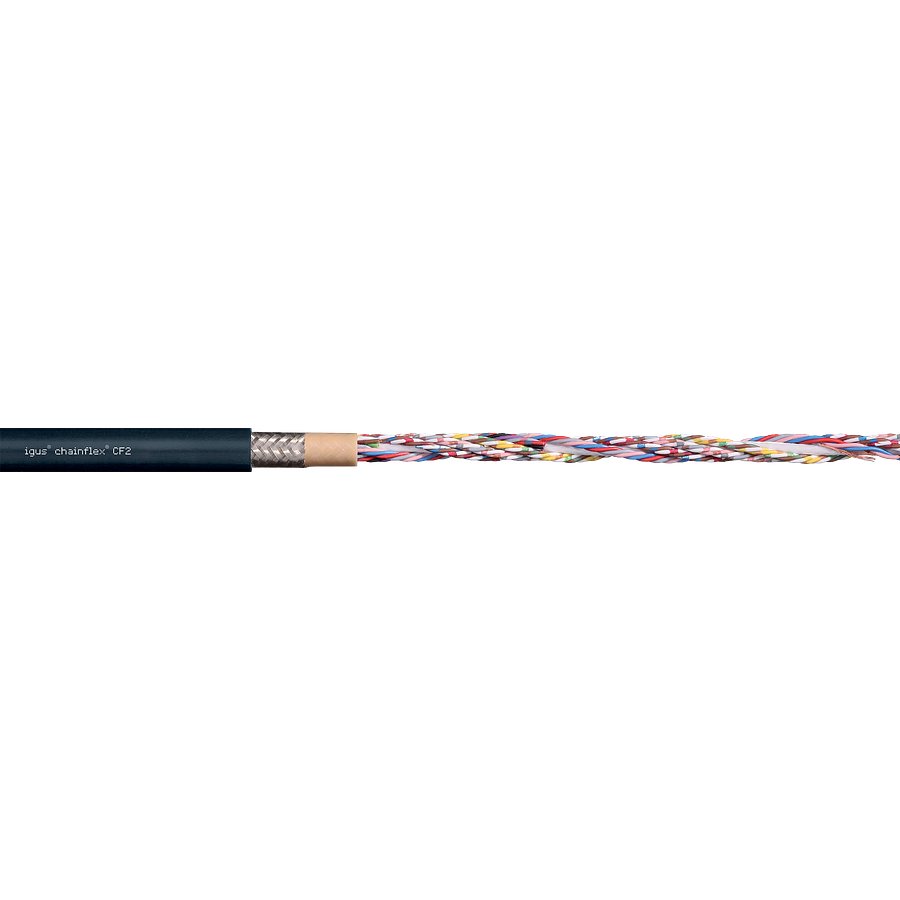

chainflex® control cable CF2

igus chainflex® control cable CF2 (part number CF2.01.04) is listed under Safety & Detection / Tools. Copper index kg/km: 18 kg/km; Shipping weight (kg or kg/m): 0.049; Outer diameter (d) max. mm: 6.5 mm; Weight per km: 49 kg/km; Min. bend radius, e-chain: 32.5 mm; Min. bend radius, flexible: 26 mm.

Manufacturer part number (MPN)

CF2.01.04

Brand

IGUS

Category

Tools

Number of cores and conductor nominal cross-section

(4x0.14)C

Copper index kg/km

18 kg/km

Shipping weight (kg or kg/m)

0.049

Outer diameter (d) max. mm

6.5 mm

Weight per km

49 kg/km

Min. bend radius, e-chain (factor)

5 x d

Min. bend radius, e-chain

32.5 mm

Min. bend radius, flexible (factor)

4 x d

Min. bend radius, flexible

26 mm

Min. bend radius, fixed (factor)

3 x d

Min. bend radius, fixed

19.5 mm

Temperature e-chain®

-20°C up to +80°C

Temperature, flexible

-40°C to +80°C (according to DIN EN 60811-504)

Temperature, fixed

-50°C to +80°C (according to DIN EN 50305)

v max. unsupported (speed)

10 m/s

v max. gliding (speed)

5 m/s

a max. (acceleration)

80 m/s²

travel length

Unsupported travel distances and up to 100 m for gliding applications

torsion

No Torsion

Conductor

Stranded conductor in an especially bend-resistant version consisting of bare copper wires (according to DIN EN 60228).

Core insulation

Mechanically high-quality TPE mixture.

Core stranding

Cores wound in a layer with short pitch length.

Inner jacket

PVC mixture adapted to suit the requirements in e-chains®.

Overall shield

Extremely flexible braiding made of tinned copper wires. Coverage linear approx. 70%, optical approx. 90%

Outer jacket

Low-adhesion mixture on the basis of PUR, highly abrasion and bend-resistant, adapted to suit the requirements in hanging applications (according to DIN EN 50363-10-2).

Outer jacket colour

Anthracite grey (comparable to RAL 7016)

Nominal voltage

300/500V (according to DIN VDE 0298-3)

Test voltage

2000V (according to DIN EN 50395)

UV resistance

High

Oil resistance

Oil-resistant (according to DIN EN 50363-10-2), Class 3

Silicone-free

Free from silicone which can affect paint adhesion (according to PV 3.10.7 – status 1992)

EAC

Certificate No. RU C-DE.ME77.B.00300/19

REACH

In accordance with Regulation (EC) No. 1907/2006 (REACH)

Lead-free

According to 2011/65/EU (RoHs-II/RoHS-III)

Cleanroom

According to ISO Class 1 The outer jacket material of this series complies with CF77.UL.05.12.D - tested by IPA according to standard DIN EN ISO 14644-1

CE

According to 2014/35/EU

UL/CSA AWM

Style 10493 and 20317, 300 V, 80 °C

UL verified

Certificate no. V293650: "The igus 4-year chainflex cable guarantee and service life calculator based on 2 billion test cycles per year“

Flame-retardant

According to IEC 60332-1-2, Cable Flame, VW-1, FT1, FT2/Horizontal Flame

NFPA

According to NFPA 79-2018, chapter 12.9

Offshore

MUD-resistant according to NEK 606 - status 2018

HS Code

8544.49
