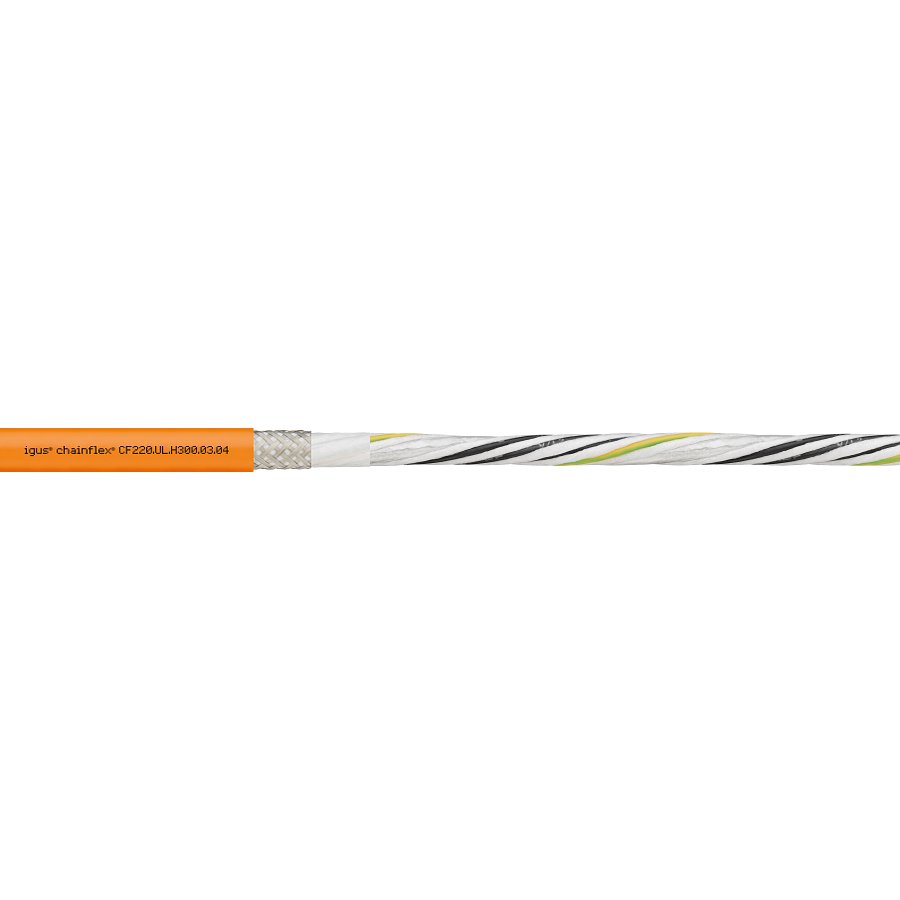

chainflex® hybrid servo cable CF220-UL-H PVC
Part numberCF220.UL.H300.03.04HS code8544.49
Safety & Detection
Tools
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Overview
igus chainflex® hybrid servo cable CF220-UL-H PVC (part number CF220.UL.H300.03.04) is listed under Safety & Detection / Tools. Protective conductor: with green-yellow earth core; Copper index kg/km: 78 kg/km; Shipping weight (kg or kg/m): 0.139; Outer diameter (d) max. mm: 10 mm; Weight per km: 128 kg/km; Min. bend radius, e-chain: 100 mm.
Technical Specifications
- Manufacturer part number (MPN)
- CF220.UL.H300.03.04
- Brand
- IGUS
- Category
- Tools
- Number of cores and conductor nominal cross-section
- (4G0.34+(2x0.34)C+(4xAWG26)C)C
- Protective conductor
- with green-yellow earth core
- Copper index kg/km
- 78 kg/km
- Shipping weight (kg or kg/m)
- 0.139
- Outer diameter (d) max. mm
- 10 mm
- Weight per km
- 128 kg/km
- Min. bend radius, e-chain (factor)
- 10 x d
- Min. bend radius, e-chain
- 100 mm
- Min. bend radius, flexible (factor)
- 8 x d
- Min. bend radius, flexible
- 80 mm
- Min. bend radius, fixed (factor)
- 5 x d
- Min. bend radius, fixed
- 50 mm
- Temperature e-chain®
- +5°C up to +70°C
- Temperature, flexible
- -5°C to +70°C (according to DIN EN 60811-504)
- Temperature, fixed
- -15°C to +70°C (according to DIN EN 50305)
- v max. unsupported (speed)
- 10 m/s
- v max. gliding (speed)
- 2 m/s
- a max. (acceleration)
- 50 m/s²
- travel length
- Travels up to 10 m
- torsion
- No Torsion
- Conductor
- Stranded conductor in a bend-resistant version consisting of bare copper wires (according to DIN EN 60228).
- Overall shield
- Bend-resistant braiding made of tinned copper wires. Coverage approx. 55% linear, approx. 80% optical
- Element shield
- Flexible braiding made of tinned copper wires.
- Outer jacket
- Low-adhesion, oil-resistant PVC mixture, adapted to suit the requirements in e-chains® (according to DIN EN 50363-4-1).
- Outer jacket colour
- Pastel orange (comparable to RAL 2003)
- Nominal voltage
- 600/1,000V (according to DIN VDE 0298-3)
- Test voltage
- 4000V (according to DIN EN 50395)
- UV resistance
- Medium
- Oil resistance
- Oil-resistant (according to DIN EN 50363-4-1), Class 2
- Silicone-free
- Free from silicone which can affect paint adhesion (according to PV 3.10.7 – status 1992)
- EAC
- Certificate No. RU C-DE.ME77.B.00863/20
- REACH
- In accordance with Regulation (EC) No. 1907/2006 (REACH)
- Lead-free
- According to 2011/65/EU (RoHs-II/RoHS-III)
- Cleanroom
- According to ISO Class 2 The outer jacket material of this series complies with CF5.10.07 - tested by IPA according to standard DIN EN ISO 14644-1
- CE
- According to 2014/35/EU
- UL/CSA AWM
- Style 10989 and 2570, 1000 V, 80 °C
- UL verified
- Certificate no. V293650: "igus 4-year chainflex cable guarantee and service life calculator based on 2 billion test cycles per year"
- Flame-retardant
- According to IEC 60332-1-2, Cable Flame, VW-1, FT1, FT2/Horizontal Flame
- NFPA
- According to NFPA 79-2018, chapter 12.9
Standards & Compliance
- HS Code
- 8544.49
