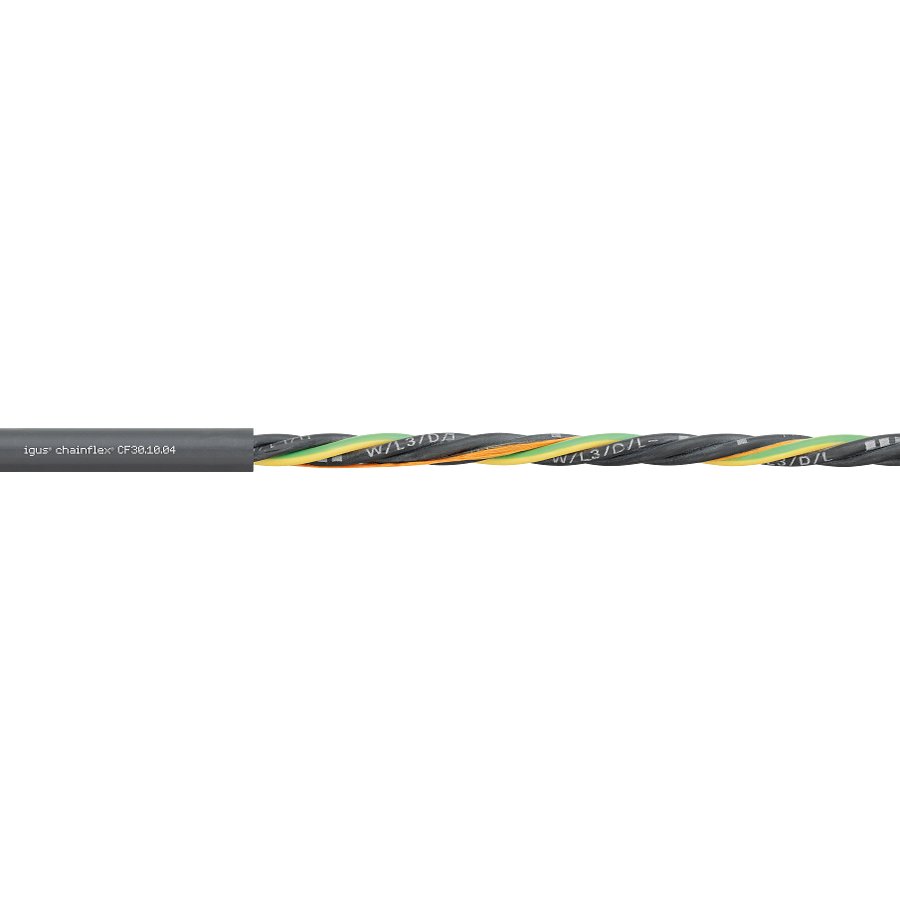

chainflex® motor cable CF30
Part numberCF30-10-04HS code8544.49
Safety & Detection
Tools
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Overview
igus chainflex® motor cable CF30 (part number CF30-10-04) is listed under Safety & Detection / Tools. Protective conductor: with green-yellow earth core; Copper index kg/km: 42 kg/km; Shipping weight (kg or kg/m): 0.077; Outer diameter (d) max. mm: 7 mm; Weight per km: 77 kg/km; Min. bend radius, e-chain: 52.5 mm.
Technical Specifications
- Manufacturer part number (MPN)
- CF30-10-04
- Brand
- IGUS
- Category
- Tools
- Number of cores and conductor nominal cross-section
- 4G1
- Protective conductor
- with green-yellow earth core
- Copper index kg/km
- 42 kg/km
- Shipping weight (kg or kg/m)
- 0.077
- Outer diameter (d) max. mm
- 7 mm
- Weight per km
- 77 kg/km
- Min. bend radius, e-chain (factor)
- 7.5 x d
- Min. bend radius, e-chain
- 52.5 mm
- Min. bend radius, flexible (factor)
- 6 x d
- Min. bend radius, flexible
- 42 mm
- Min. bend radius, fixed (factor)
- 4 x d
- Min. bend radius, fixed
- 28 mm
- Temperature e-chain®
- +5°C up to +70°C
- Temperature, flexible
- -5°C to +70°C (according to DIN EN 60811-504)
- Temperature, fixed
- -15°C to +70°C (according to DIN EN 50305)
- v max. unsupported (speed)
- 10 m/s
- v max. gliding (speed)
- 5 m/s
- a max. (acceleration)
- 80 m/s²
- travel length
- Unsupported travel distances and up to 100 m for gliding applications
- torsion
- Torsion ±90°, with 1m cable length, Class 2
- Outer jacket
- Low-adhesion, oil-resistant PVC mixture, adapted to suit the requirements in e-chains® (according to DIN EN 50363-4-1).
- Outer jacket colour
- Jet black (comparable to RAL 9005)
- CFRIP®
- Strip cables faster: a tear strip is moulded into the outer jacket
- Nominal voltage
- 600/1,000V (according to DIN VDE 0298-3)
- Test voltage
- 4000V (according to DIN EN 50395)
- UV resistance
- Medium
- Oil resistance
- Oil-resistant (according to DIN EN 50363-4-1), Class 2
- Silicone-free
- Free from silicone which can affect paint adhesion (according to PV 3.10.7 – status 1992)
- EAC
- Certificate No. RU C-DE.ME77.B.00863/20
- REACH
- In accordance with Regulation (EC) No. 1907/2006 (REACH)
- Lead-free
- According to 2011/65/EU (RoHs-II/RoHS-III)
- Cleanroom
- According to ISO Class 2 The outer jacket material of this series complies with CF5.10.07 - tested by IPA according to standard DIN EN ISO 14644-1
- CE
- According to 2014/35/EU
- UL verified
- Certificate no. V293650: "The igus 4-year chainflex cable guarantee and service life calculator based on 2 billion test cycles per year“
- Flame-retardant
- According to IEC 60332-1-2, Cable Flame, VW-1, FT1, FT2/Horizontal Flame
- NFPA
- According to NFPA 79-2018, chapter 12.9
Standards & Compliance
- HS Code
- 8544.49
Cross References
- OEM-URL https://www.igus.com/product/CF30
More from igus
igus
chainflex® motor cable CF31
CF31.10.04
igus
chainflex® motor cable CF35-UL
CF35.UL.10.04
igus
chainflex® motor cable CF330-D
CF330.1200.01.D
igus
chainflex® motor cable CF34-UL-D (CF34.UL.10.04.D)
igus
chainflex® motor cable CF38
CF38.10.04
igus

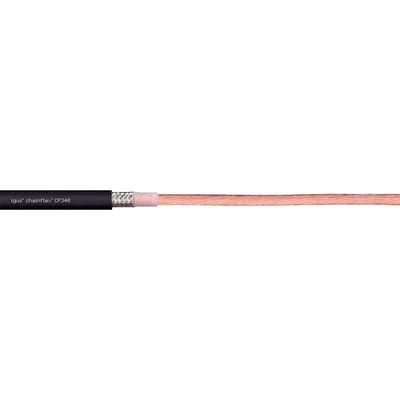

chainflex® motor cable CF340
CF340.100.01
igus

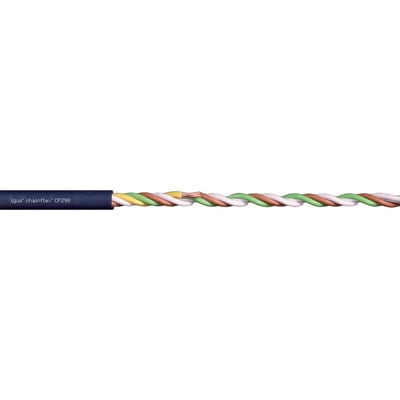

chainflex® data cable CF298
CF298.01.04
igus

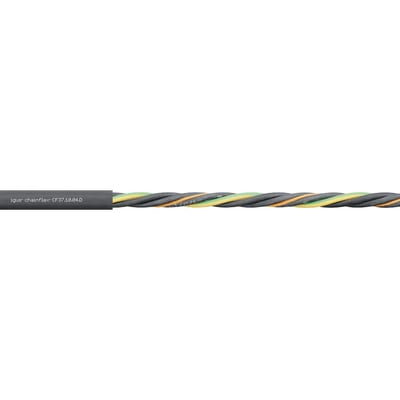

chainflex® motor cable CF37-D (CF37.10.04.D)
