igus

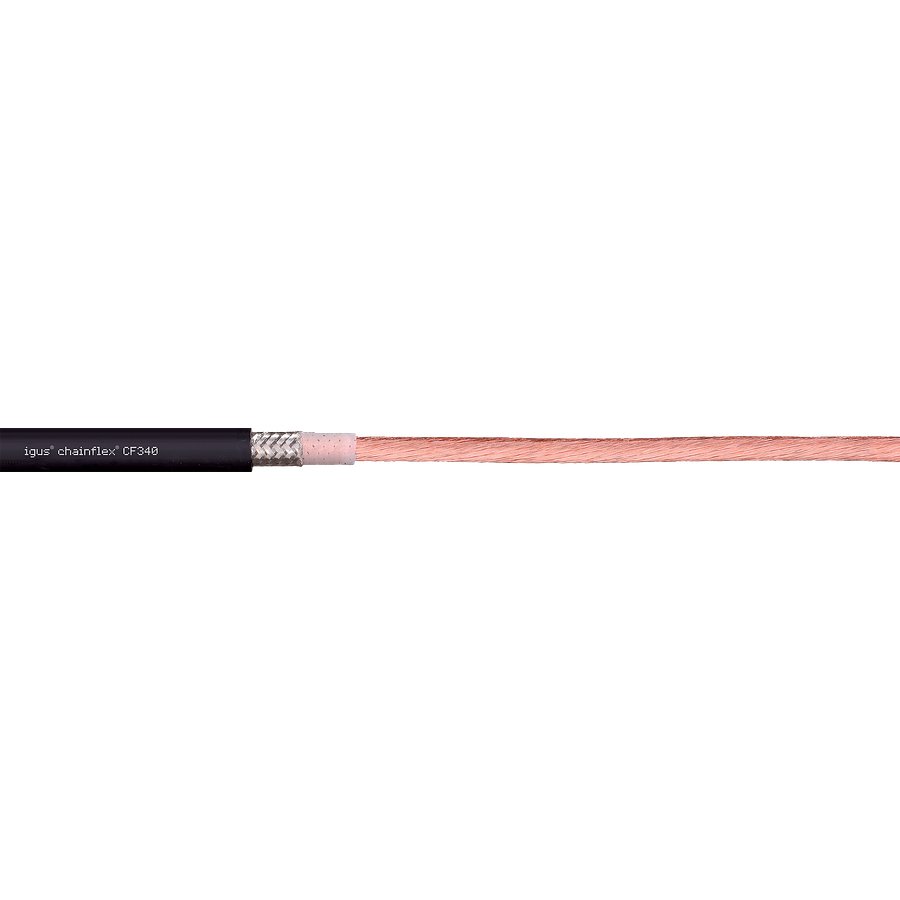

chainflex® motor cable CF340
Part numberCF340.100.01HS code8544.49
Safety & Detection
Tools
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Overview
igus chainflex® motor cable CF340 (part number CF340.100.01) is listed under Safety & Detection / Tools. Copper index kg/km: 121 kg/km; Shipping weight (kg or kg/m): 0.143; Outer diameter (d) max. mm: 8.5 mm; Weight per km: 148 kg/km; Min. bend radius, e-chain: 63.75 mm; Min. bend radius, flexible: 51 mm.
Technical Specifications
- Manufacturer part number (MPN)
- CF340.100.01
- Brand
- IGUS
- Category
- Tools
- Number of cores and conductor nominal cross-section
- (1x10)C
- Copper index kg/km
- 121 kg/km
- Shipping weight (kg or kg/m)
- 0.143
- Outer diameter (d) max. mm
- 8.5 mm
- Weight per km
- 148 kg/km
- Min. bend radius, e-chain (factor)
- 7.5 x d
- Min. bend radius, e-chain
- 63.75 mm
- Min. bend radius, flexible (factor)
- 6 x d
- Min. bend radius, flexible
- 51 mm
- Min. bend radius, fixed (factor)
- 4 x d
- Min. bend radius, fixed
- 34 mm
- Temperature e-chain®
- -35°C up to +90°C
- Temperature, flexible
- -50°C to +90°C (according to DIN EN 60811-504)
- Temperature, fixed
- -55°C to +90°C (according to DIN EN 50305)
- v max. unsupported (speed)
- 10 m/s
- v max. gliding (speed)
- 6 m/s
- a max. (acceleration)
- 100 m/s²
- travel length
- Travels up to 400 m and more
- torsion
- No Torsion
- Conductor
- Conductor cable made of stranded wires (according to DIN EN 60228).
- Core insulation
- Mechanically high-quality TPE mixture.
- Overall shield
- Extremely flexible braiding made of tinned copper wires. Coverage linear approx. 70%, optical approx. 90%
- Outer jacket
- Low-adhesion, extremely abrasion-resistant and highly flexible TPE mixture, adapted to suit the requirements in e-chains®.
- Outer jacket colour
- Jet black (comparable to RAL 9005)
- Nominal voltage
- 600/1,000V (according to DIN VDE 0298-3)
- Test voltage
- 4000V (according to DIN EN 50395)
- UV resistance
- High
- Oil resistance
- Oil-resistant (according to DIN EN 60811-404), bio-oil-resistant (according to VDMA 24568 with Plantocut 8 S-MB tested by DEA), Class 4
- Silicone-free
- Free from silicone which can affect paint adhesion (according to PV 3.10.7 – status 1992)
- Halogen-free
- According to DIN EN 60754
- EAC
- Certificate No. RU C-DE.ME77.B.00863/20
- REACH
- In accordance with Regulation (EC) No. 1907/2006 (REACH)
- Lead-free
- According to 2011/65/EU (RoHs-II/RoHS-III)
- Cleanroom
- According to ISO Class 1 The outer jacket material of this series complies with CF9.15.07 - tested by IPA according to standard DIN EN ISO 14644-1
- CE
- According to 2014/35/EU
- UL/CSA AWM
- Style 10492 and 22353, 1000 V, 80 °C
- UL verified
- Certificate no. V293650: "The igus 4-year chainflex cable guarantee and service life calculator based on 2 billion test cycles per year“
Standards & Compliance
- HS Code
- 8544.49
Cross References
- OEM-URL https://www.igus.com/product/CF340
More from igus
igus
chainflex® data cable CF298
CF298.01.04
igus
chainflex® motor cable CF37-D (CF37.10.04.D)
igus
chainflex® motor cable CF885-PE, lead screw cable/single core
CF885.PE.25.01
igus
chainflex® motor cable CF885, spindle cable/single core
CF885.40.01
igus
chainflex® data cable CF8821
CF8821-01-03
igus
chainflex® servo motor feedback cable CF884
CF884.009
igus
chainflex® motor cable CF886
CF886.10.04
igus
chainflex® bus cable CF888
CF888.001
Catalogue entry last verified: 2026-10-03.
