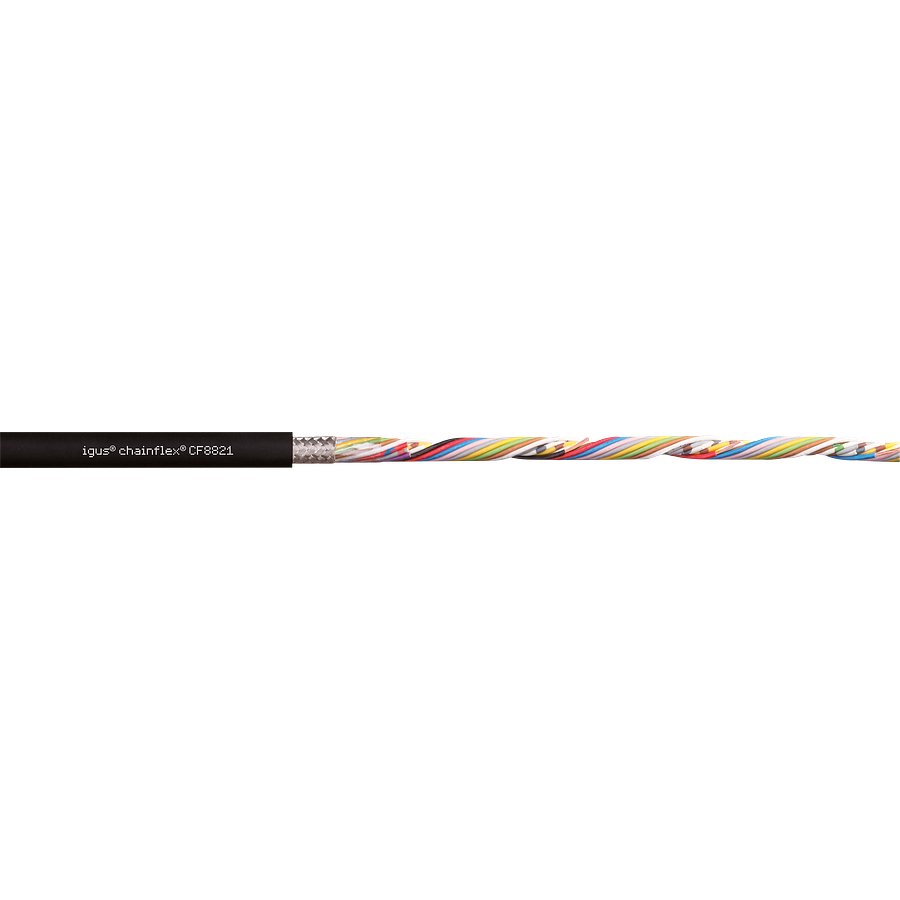

chainflex® data cable CF8821
Pricing
Request a quote
We reply within 24 hours
Overview
igus chainflex® data cable CF8821 (part number CF8821-01-03) is listed under Safety & Detection / Tools. Copper index kg/km: 13 kg/km; Stranding type: Stranded in layers; Shipping weight (kg or kg/m): 0.035; Outer diameter (d) max. mm: 5.5 mm; Weight per km: 35 kg/km; Min. bend radius, e-chain: 68.75 mm.
Technical Specifications
- Manufacturer part number (MPN)
- CF8821-01-03
- Brand
- IGUS
- Category
- Tools
- Number of cores and conductor nominal cross-section
- (3x0.14)C
- Copper index kg/km
- 13 kg/km
- Stranding type
- Stranded in layers
- Shipping weight (kg or kg/m)
- 0.035
- Outer diameter (d) max. mm
- 5.5 mm
- Weight per km
- 35 kg/km
- Min. bend radius, e-chain (factor)
- 12.5 x d
- Min. bend radius, e-chain
- 68.75 mm
- Min. bend radius, flexible (factor)
- 10 x d
- Min. bend radius, flexible
- 55 mm
- Min. bend radius, fixed (factor)
- 7 x d
- Min. bend radius, fixed
- 38.5 mm
- Temperature e-chain®
- +5°C up to +70°C
- Temperature, flexible
- -5°C to +70°C (according to DIN EN 60811-504)
- Temperature, fixed
- -15°C to +70°C (according to DIN EN 50305)
- v max. unsupported (speed)
- 3 m/s
- a max. (acceleration)
- 20 m/s²
- travel length
- Unsupported up to 10 m
- torsion
- No Torsion
- Conductor
- Conductor consisting of bare copper wires (according to DIN EN 60228).
- Core insulation
- Mechanically high-quality TPE mixture.
- Core stranding
- Cores wound with an optimised pitch length.
- Overall shield
- Braiding made of tinned copper wires. Cover approx. 60% optical.
- Outer jacket
- Low-adhesion PVC mixture, adapted to suit the requirements in e-chains®.
- Outer jacket colour
- Jet black (comparable to RAL 9005)
- Nominal voltage
- 300/300V (according to DIN VDE 0298-3)
- Test voltage
- 1500V (according to DIN EN 50395)
- Silicone-free
- Free from silicone which can affect paint adhesion (according to PV 3.10.7 – status 1992)
- EAC
- Certificate No. RU C-DE.ME77.B.00300/19
- REACH
- In accordance with Regulation (EC) No. 1907/2006 (REACH)
- CE
- According to 2014/35/EU
- UL/CSA AWM
- Style 10493 and 2464, 300 V, 80 °C
- UL verified
- Certificate no. V293650: "The igus 4-year chainflex cable guarantee and service life calculator based on 2 billion test cycles per year“
- Flame-retardant
- According to IEC 60332-1-2, Cable Flame, VW-1, FT1, FT2/Horizontal Flame
- NFPA
- According to NFPA 79-2018, chapter 12.9
Standards & Compliance
- HS Code
- 8544.49
Cross References
