igus

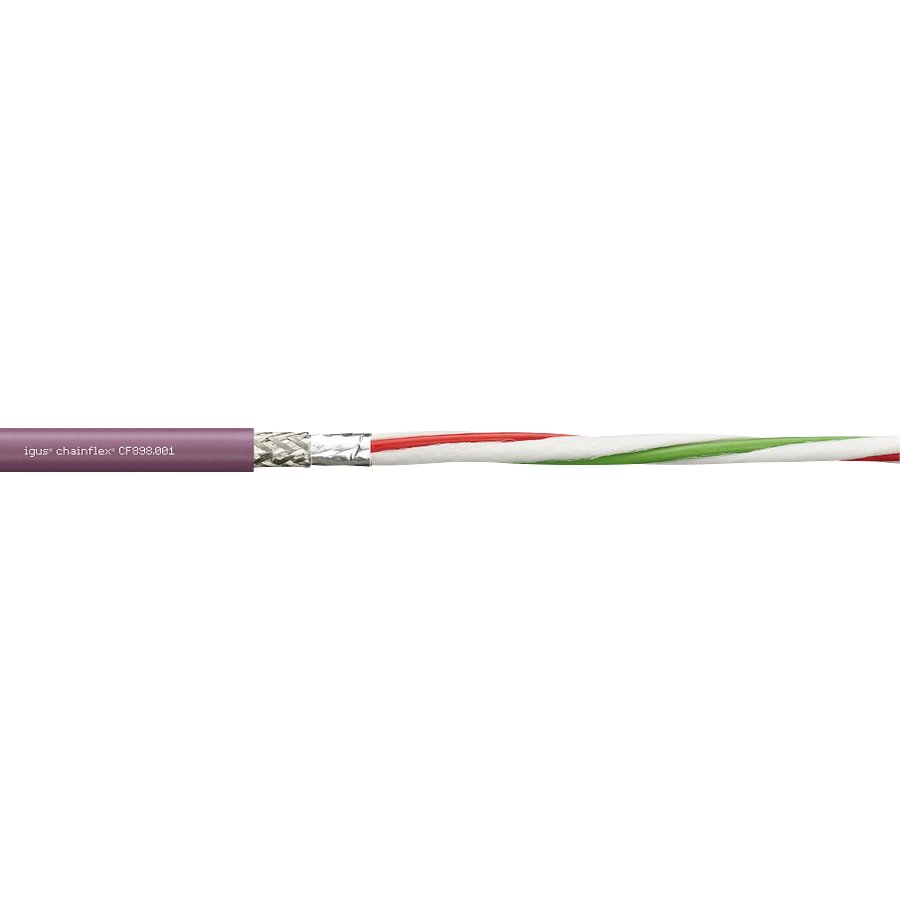

chainflex® bus cable CF898
Part numberCF898.001HS code8544.49
Safety & Detection
Tools
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Overview
igus chainflex® bus cable CF898 (part number CF898.001) is listed under Safety & Detection / Tools. Bus system: Profibus (1x2x0.64mm); Copper index kg/km: 18 kg/km; Core group 1 core structure: 2x0.25; Core group 1 colour code: red, green; Wave resistance approx.: 150 Ω; Shipping weight (kg or kg/m): 0.056.
Technical Specifications
- Manufacturer part number (MPN)
- CF898.001
- Brand
- IGUS
- Category
- Tools
- Bus system
- Profibus (1x2x0.64mm)
- Number of cores and conductor nominal cross-section
- (2x0.25)C
- Copper index kg/km
- 18 kg/km
- Core group 1 core structure
- 2x0.25
- Core group 1 colour code
- red, green
- Wave resistance approx.
- 150 Ω
- Shipping weight (kg or kg/m)
- 0.056
- Outer diameter (d) max. mm
- 8 mm
- Weight per km
- 56 kg/km
- Min. bend radius, e-chain (factor)
- 15 x d
- Min. bend radius, e-chain
- 120 mm
- Min. bend radius, flexible (factor)
- 12 x d
- Min. bend radius, flexible
- 96 mm
- Min. bend radius, fixed (factor)
- 8 x d
- Min. bend radius, fixed
- 64 mm
- Temperature e-chain®
- -20°C up to +70°C
- Temperature, flexible
- -40°C to +70°C (according to DIN EN 60811-504)
- Temperature, fixed
- -50°C to +70°C (according to DIN EN 50305)
- v max. unsupported (speed)
- 3 m/s
- a max. (acceleration)
- 20 m/s²
- travel length
- Unsupported up to 10 m
- torsion
- No Torsion
- Conductor
- Conductor consisting of bare copper wires (according to DIN EN 60228).
- Core insulation
- According to bus specification.
- Overall shield
- Braiding made of tinned copper wires. Cover approx. 60% optical.
- Outer jacket
- Low-adhesion iguPUR mixture, adapted to suit the requirements in e-chains®.
- Outer jacket colour
- Red lilac (comparable to RAL 4001)
- Nominal voltage
- 50V
- Test voltage
- 500V
- UV resistance
- Medium
- Oil resistance
- Oil-resistant (according to DIN EN 50363-10-2), Class 3
- Silicone-free
- Free from silicone which can affect paint adhesion (according to PV 3.10.7 – status 1992)
- EAC
- Certificate No. RU C-DE.ME77.B.00295/19
- REACH
- In accordance with Regulation (EC) No. 1907/2006 (REACH)
- Lead-free
- According to 2011/65/EU (RoHs-II/RoHS-III)
- CE
- According to 2014/35/EU
- UL/CSA AWM
- Style 1589 and 20236, 30 V, 80 °C
- UL verified
- Certificate no. V293650: "igus 4-year chainflex cable guarantee and service life calculator based on 2 billion test cycles per year"
- Flame-retardant
- According to IEC 60332-1-2, Cable Flame, VW-1, FT1, FT2/Horizontal Flame
- NFPA
- According to NFPA 79-2018, chapter 12.9
Standards & Compliance
- HS Code
- 8544.49
Cross References
- OEM-URL https://www.igus.com/product/CF898
