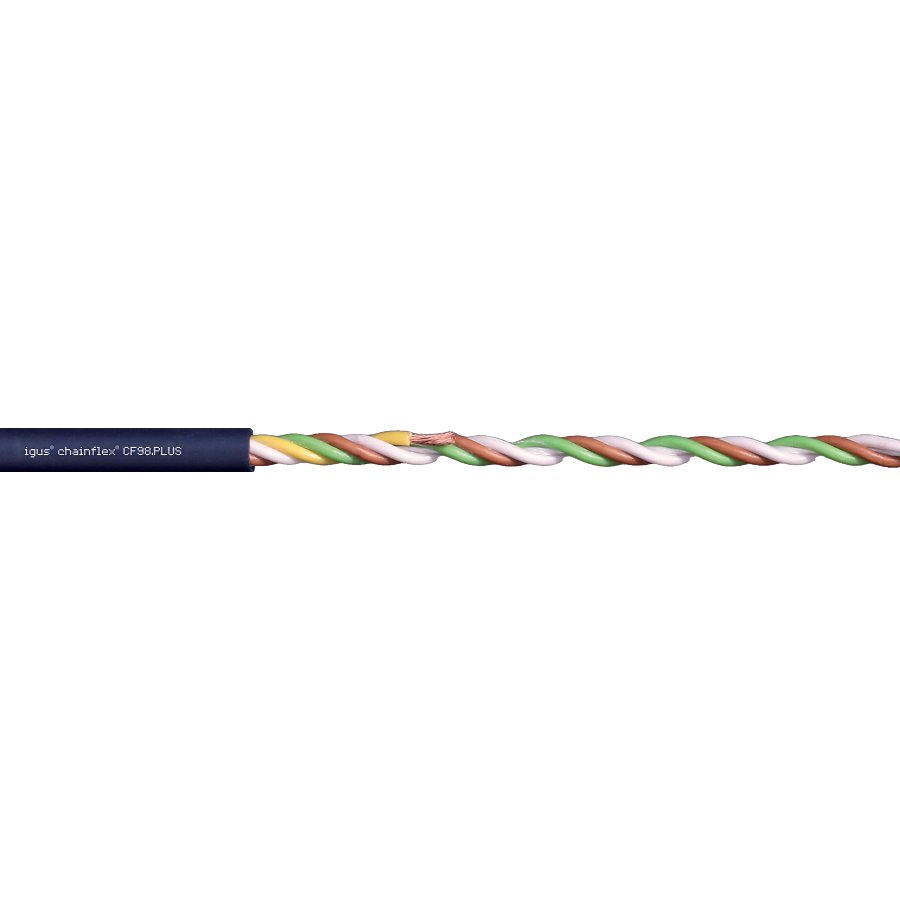

chainflex® control cable CF98.PLUS
Pricing
Request a quote
We reply within 24 hours
Overview
igus chainflex® control cable CF98.PLUS (part number CF98.PLUS.01.02) is listed under Safety & Detection / Tools. Copper index kg/km: 4 kg/km; Shipping weight (kg or kg/m): 0.018; Outer diameter (d) max. mm: 4.5 mm; Weight per km: 18 kg/km; Min. bend radius, e-chain: 13.5 mm; Temperature e-chain®: -35°C up to +90°C.
Technical Specifications
- Manufacturer part number (MPN)
- CF98.PLUS.01.02
- Brand
- IGUS
- Category
- Tools
- Number of cores and conductor nominal cross-section
- 2x0.14
- Copper index kg/km
- 4 kg/km
- Shipping weight (kg or kg/m)
- 0.018
- Outer diameter (d) max. mm
- 4.5 mm
- Weight per km
- 18 kg/km
- Min. bend radius, e-chain (factor)
- 3 x d
- Min. bend radius, e-chain
- 13.5 mm
- Temperature e-chain®
- -35°C up to +90°C
- Temperature, flexible
- -50°C to +90°C (according to DIN EN 60811-504)
- Temperature, fixed
- -55°C to +90°C (according to DIN EN 50305)
- v max. unsupported (speed)
- 10 m/s
- v max. gliding (speed)
- 6 m/s
- travel length
- Unsupported travel distances and up to 100 m for gliding applications
- torsion
- Torsion ±90°, with 1m cable length, Class 2
- Conductor
- Conductor consisting of a highly flexible special alloy.
- Core insulation
- Mechanically high-quality TPE mixture
- Core stranding
- Cores wound in a layer with especially short pitch length.
- Outer jacket
- Low-adhesion, extremely abrasion-resistant and highly flexible TPE mixture, adapted to suit the requirements in e-chains®.
- Outer jacket colour
- Steel blue (comparable to RAL 5011)
- Nominal voltage
- 300/500V (according to DIN VDE 0298-3)
- Test voltage
- 1500V
- UV resistance
- High
- Oil resistance
- Oil-resistant (according to DIN EN 60811-404), bio-oil-resistant (according to VDMA 24568 with Plantocut 8 S-MB tested by DEA), Class 4
- Silicone-free
- Free from silicone which can affect paint adhesion (according to PV 3.10.7 – status 1992)
- Halogen-free
- According to DIN EN 60754
- EAC
- Certificate No. RU C-DE.ME77.B.00300/19
- CE
- According to 2014/35/EU
- UL verified
- Certificate no. V293650: "The igus 4-year chainflex cable guarantee and service life calculator based on 2 billion test cycles per year“
Standards & Compliance
- HS Code
- 8544.49
