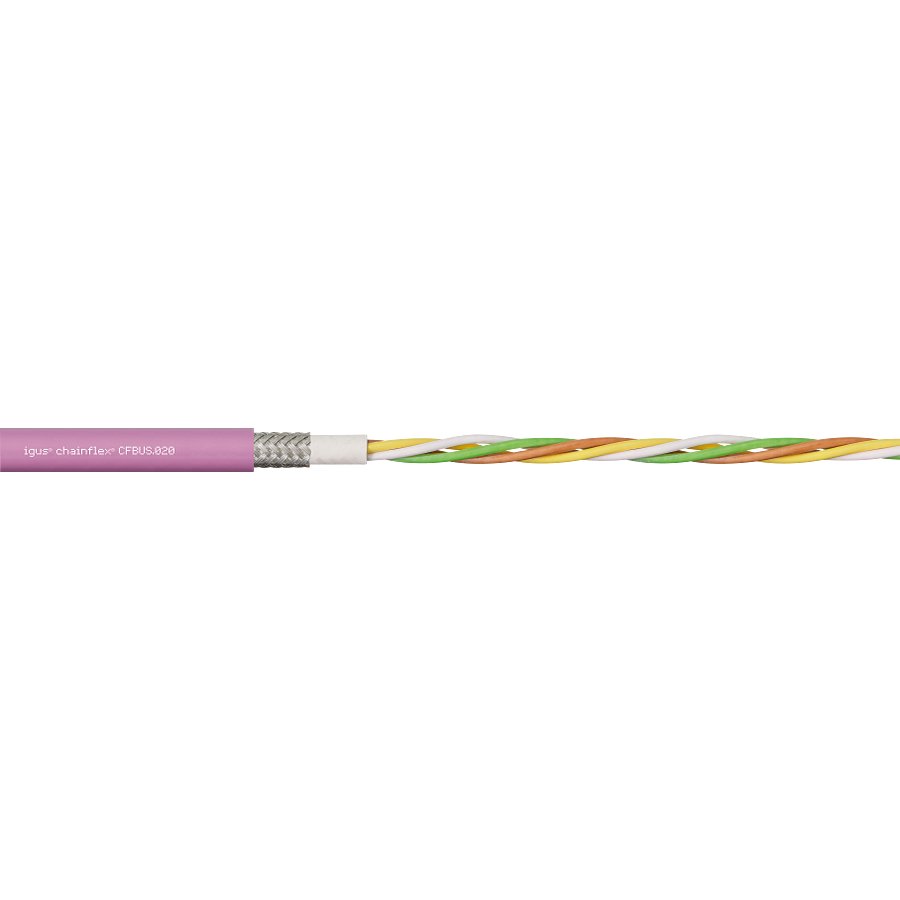

chainflex® bus cable CFBUS

igus chainflex® bus cable CFBUS (part number CFBUS.020) is listed under Safety & Detection / Tools. Bus system: CAN-Bus/Fieldbus; Copper index kg/km: 28 kg/km; Core group 1 core structure: 4x0.25; Wave resistance approx.: 120 Ω; Shipping weight (kg or kg/m): 0.058; Outer diameter (d) max. mm: 6.5 mm.

Manufacturer part number (MPN)

CFBUS.020

Brand

IGUS

Category

Tools

Bus system

CAN-Bus/Fieldbus

Number of cores and conductor nominal cross-section

(4x0.25)C

Copper index kg/km

28 kg/km

Core group 1 core structure

4x0.25

Core group 1 colour code

white, green, brown, yellow (star-quad stranding)

Wave resistance approx.

120 Ω

Shipping weight (kg or kg/m)

0.058

Outer diameter (d) max. mm

6.5 mm

Weight per km

58 kg/km

Min. bend radius, e-chain (factor)

10 x d

Min. bend radius, e-chain

65 mm

Min. bend radius, flexible (factor)

8 x d

Min. bend radius, flexible

52 mm

Min. bend radius, fixed (factor)

5 x d

Min. bend radius, fixed

32.5 mm

Temperature e-chain®

-35°C up to +70°C

Temperature, flexible

-45°C to +70°C (according to DIN EN 60811-504)

Temperature, fixed

-50°C to +70°C (according to DIN EN 50305)

v max. unsupported (speed)

10 m/s

v max. gliding (speed)

6 m/s

a max. (acceleration)

100 m/s²

travel length

Travels up to 400 m and more

torsion

No Torsion

Conductor

Stranded conductor in an especially bend-resistant version consisting of bare copper wires (according to DIN EN 60228).

Core insulation

According to bus specification.

Inner jacket

TPE mixture adapted to suit the requirements in e-chains®.

Overall shield

Extremely flexible braiding made of tinned copper wires. Coverage linear approx. 70%, optical approx. 90%

Outer jacket

Low-adhesion, extremely abrasion-resistant and highly flexible TPE mixture, adapted to suit the requirements in e-chains®.

Outer jacket colour

Red lilac (comparable to RAL 4001)

Nominal voltage

50V

Test voltage

500V (according to DIN EN 50289-1-3)

UV resistance

Medium

Oil resistance

Oil-resistant (according to DIN EN 60811-404), bio-oil-resistant (according to VDMA 24568 with Plantocut 8 S-MB tested by DEA), Class 4

Silicone-free

Free from silicone which can affect paint adhesion (according to PV 3.10.7 – status 1992)

EAC

Certificate No. RU C-DE.ME77.B.00295/19

REACH

In accordance with Regulation (EC) No. 1907/2006 (REACH)

Lead-free

According to 2011/65/EU (RoHs-II/RoHS-III)

Cleanroom

According to ISO Class 1 The outer jacket material of this series complies with CF34.UL.25.04.D - tested by IPA according to standard DIN EN ISO 14644-1

CE

According to 2014/35/EU

UL/CSA AWM

Style 1589 and 21371, 30 V, 80 °C

UL verified

Certificate no. V293650: "The igus 4-year chainflex cable guarantee and service life calculator based on 2 billion test cycles per year“

DESINA

According to VDW, DESINA standardisation

Flame-retardant

According to IEC 60332-1-2, Cable Flame, VW-1, FT1, FT2/Horizontal Flame

DNV

Type approval certificate TAE00003X5

NFPA

According to NFPA 79-2018, chapter 12.9

HS Code

8544.49
