igus

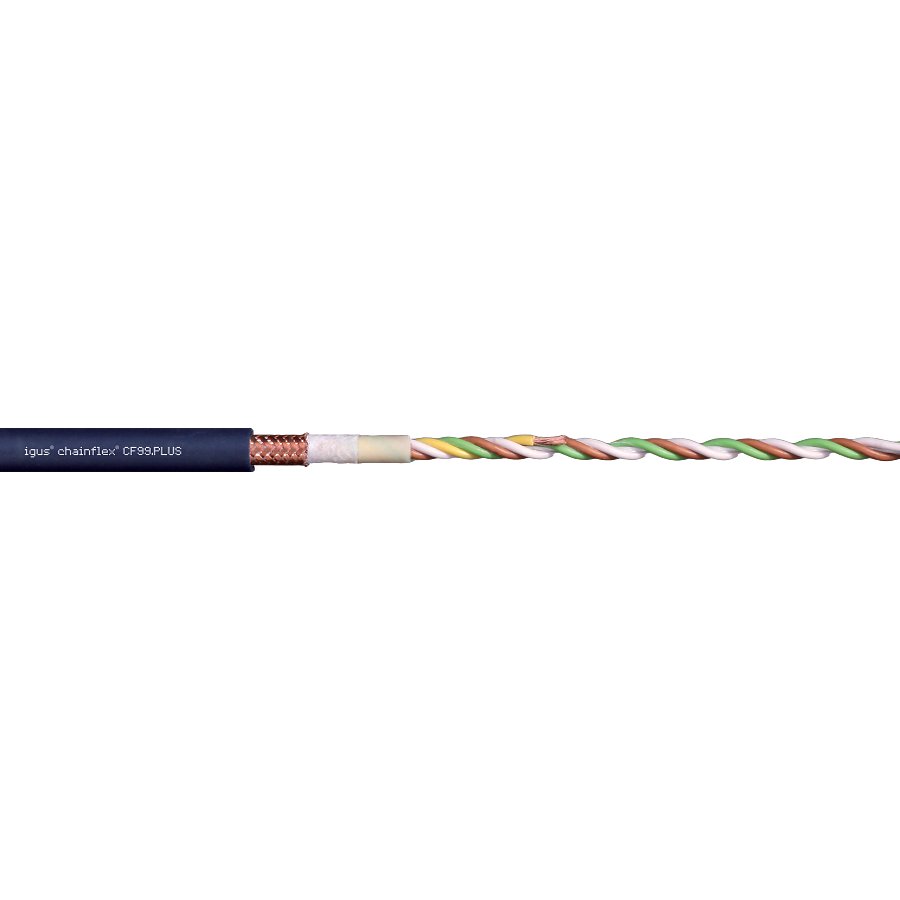

chainflex® control cable CF99.PLUS
Part numberCF99.PLUS.01.02HS code8544.49
Safety & Detection
Tools
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Overview
igus chainflex® control cable CF99.PLUS (part number CF99.PLUS.01.02) is listed under Safety & Detection / Tools. Copper index kg/km: 12 kg/km; Shipping weight (kg or kg/m): 0.039; Outer diameter (d) max. mm: 6 mm; Weight per km: 39 kg/km; Min. bend radius, e-chain: 18 mm; Temperature e-chain®: -35°C up to +90°C.
Technical Specifications
- Manufacturer part number (MPN)
- CF99.PLUS.01.02
- Brand
- IGUS
- Category
- Tools
- Number of cores and conductor nominal cross-section
- (2x0.14)C
- Copper index kg/km
- 12 kg/km
- Shipping weight (kg or kg/m)
- 0.039
- Outer diameter (d) max. mm
- 6 mm
- Weight per km
- 39 kg/km
- Min. bend radius, e-chain (factor)
- 3 x d
- Min. bend radius, e-chain
- 18 mm
- Temperature e-chain®
- -35°C up to +90°C
- Temperature, flexible
- -50°C to +90°C (according to DIN EN 60811-504)
- Temperature, fixed
- -55°C to +90°C (according to DIN EN 50305)
- v max. unsupported (speed)
- 10 m/s
- v max. gliding (speed)
- 6 m/s
- travel length
- Unsupported travel distances and up to 100 m for gliding applications
- torsion
- No Torsion
- Conductor
- Conductor consisting of a highly flexible special alloy.
- Core insulation
- Mechanically high-quality TPE mixture
- Core stranding
- Cores wound in a layer with especially short pitch length.
- Inner jacket
- TPE mixture adapted to suit the requirements in e-chains®.
- Overall shield
- Extremely bend-resistant braiding made of alloy wires. Coverage approx. 70% linear, approx. 90% optical
- Outer jacket
- Low-adhesion, extremely abrasion-resistant and highly flexible TPE mixture, adapted to suit the requirements in e-chains®.
- Outer jacket colour
- Steel blue (comparable to RAL 5011)
- Nominal voltage
- 300/300V
- Test voltage
- 1500V
- UV resistance
- High
- Oil resistance
- Oil-resistant (according to DIN EN 60811-404), bio-oil-resistant (according to VDMA 24568 with Plantocut 8 S-MB tested by DEA), Class 4
- Silicone-free
- Free from silicone which can affect paint adhesion (according to PV 3.10.7 – status 1992)
- Halogen-free
- According to DIN EN 60754
- EAC
- Certificate No. RU C-DE.ME77.B.00300/19
- REACH
- In accordance with Regulation (EC) No. 1907/2006 (REACH)
- Lead-free
- According to 2011/65/EU (RoHs-II/RoHS-III)
- Cleanroom
- According to ISO Class 1 The outer jacket material of this series complies with CF9.15.07 - tested by IPA according to standard DIN EN ISO 14644-1
- CE
- According to 2014/35/EU
- UL verified
- Certificate no. V293650: "The igus 4-year chainflex cable guarantee and service life calculator based on 2 billion test cycles per year“
Standards & Compliance
- HS Code
- 8544.49
Cross References
- OEM-URL https://www.igus.com/product/CF99_PLUS
