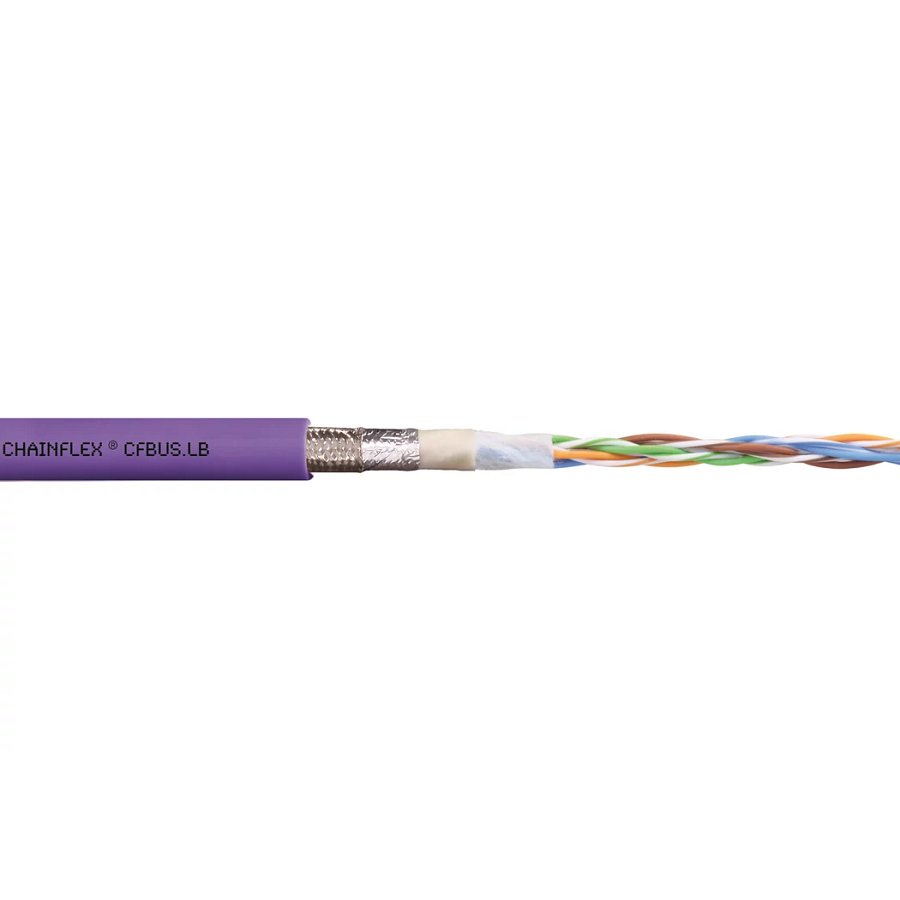

chainflex® bus cable CFBUS.LB
Part numberCFBUS-LB-004HS code8544.49
Safety & Detection
Tools
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Overview
igus chainflex® bus cable CFBUS.LB (part number CFBUS-LB-004) is listed under Safety & Detection / Tools. Bus system: Profibus (1x2x0.64mm); Copper index kg/km: 35 kg/km; Core group 1 colour code: red, yellow, brown (star quad-stranding), green; Wave resistance approx.: 150 Ω; Shipping weight (kg or kg/m): 0.08; Outer diameter (d) max. mm: 9 mm.
Technical Specifications
- Manufacturer part number (MPN)
- CFBUS-LB-004
- Brand
- IGUS
- Category
- Tools
- Bus system
- Profibus (1x2x0.64mm)
- Number of cores and conductor nominal cross-section
- (4x0.25)C
- Copper index kg/km
- 35 kg/km
- Core group 1 colour code
- red, yellow, brown (star quad-stranding), green
- Wave resistance approx.
- 150 Ω
- Shipping weight (kg or kg/m)
- 0.08
- Outer diameter (d) max. mm
- 9 mm
- Weight per km
- 80 kg/km
- Min. bend radius, e-chain (factor)
- 10 x d
- Min. bend radius, e-chain
- 90 mm
- Min. bend radius, flexible (factor)
- 6 x d
- Min. bend radius, flexible
- 54 mm
- Min. bend radius, fixed (factor)
- 4 x d
- Min. bend radius, fixed
- 36 mm
- Temperature e-chain®
- -35°C up to +70°C
- Temperature, flexible
- -50°C to +70°C (according to DIN EN 60811-504)
- Temperature, fixed
- -55°C to +70°C
- v max. unsupported (speed)
- 10 m/s
- v max. gliding (speed)
- 6 m/s
- a max. (acceleration)
- 100 m/s²
- travel length
- Travels up to 400 m and more
- torsion
- No Torsion
- Conductor
- Stranded conductor in an especially bend-resistant version consisting of bare copper wires (according to DIN EN 60228).
- Core insulation
- According to bus specification.
- Inner jacket
- TPE mixture adapted to suit the requirements in e-chains®.
- Overall shield
- Extremely flexible braiding made of tinned copper wires. Coverage linear approx. 70%, optical approx. 90%
- Outer jacket
- Low-adhesion, extremely abrasion-resistant and highly flexible TPE mixture, adapted to suit the requirements in e-chains®.
- Outer jacket colour
- Red lilac (comparable to RAL 4001)
- Nominal voltage
- 50V
- Test voltage
- 500V (according to DIN EN 50289-1-3)
- UV resistance
- Medium
- Oil resistance
- Oil-resistant (according to DIN EN 60811-404), bio-oil-resistant (according to VDMA 24568 with Plantocut 8 S-MB tested by DEA), Class 4
- Silicone-free
- Free from silicone which can affect paint adhesion (according to PV 3.10.7 – status 1992)
- Halogen-free
- According to DIN EN 60754
- REACH
- In accordance with Regulation (EC) No. 1907/2006 (REACH)
- Lead-free
- According to 2011/65/EU (RoHs-II/RoHS-III)
- Cleanroom
- According to ISO Class 1 The outer jacket material of this series complies with CF9.15.07 - tested by IPA according to standard DIN EN ISO 14644-1
- CE
- According to 2014/35/EU
- UL AWM
- Style 11807 and 22354, 600 V, 80 °C
- UL verified
- Certificate no. V293650: "The igus 4-year chainflex cable guarantee and service life calculator based on 2 billion test cycles per year“
- DESINA
- According to VDW, DESINA standardisation
