igus

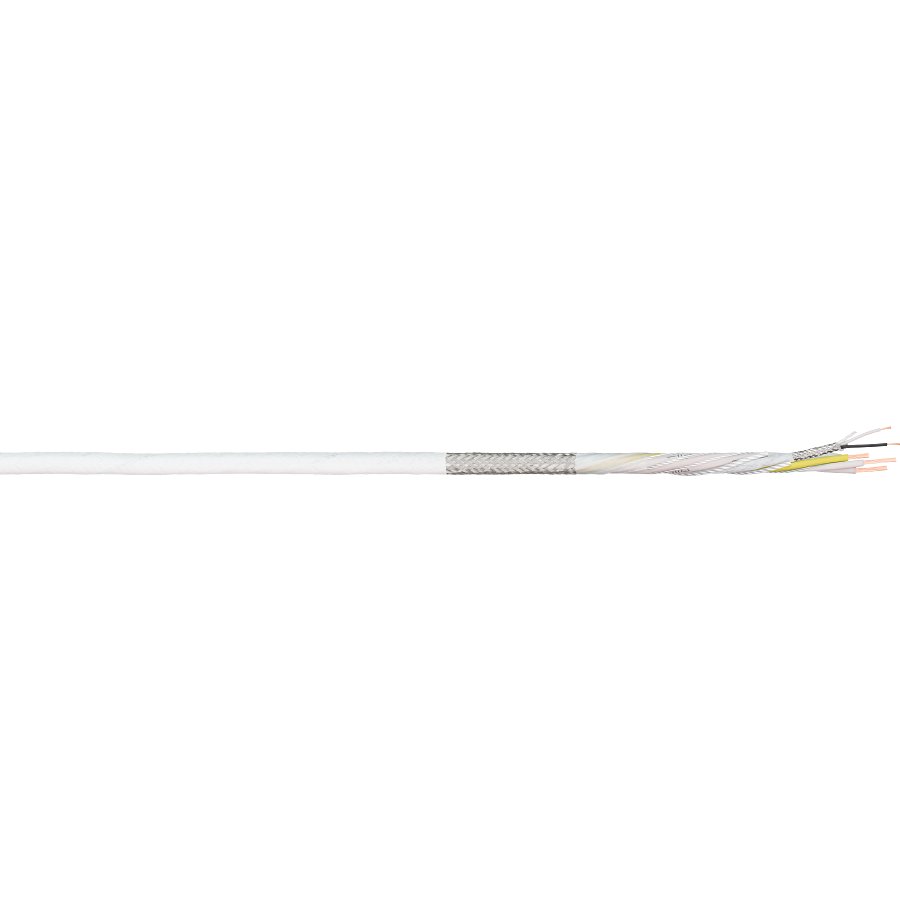

chainflex® CFCLEAN7 (CFCLEAN7.PE.25.01)
Part numberCFCLEAN7.PE.25.01HS code8544.49
Safety & Detection
Tools
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
IGUS CFCLEAN7.PE.25.01 — professional-grade tool.
Technical Specifications
- Manufacturer part number (MPN)
- CFCLEAN7.PE.25.01
- Brand
- IGUS
- Category
- Tools
- Number of cores and conductor nominal cross-section
- (1G2.5)C
- Copper index kg/km
- 41 kg/km
- Shipping weight (kg or kg/m)
- 0.073
- Outer diameter (d) max. mm
- 4.5 mm
- Weight per km
- 73 kg/km
- Min. bend radius, fixed (factor)
- 3 x d
- Min. bend radius, fixed
- 13.5 mm
- Temperature, fixed
- -25°C to +90°C (according to DIN EN 50305)
- v max. unsupported (speed)
- 2 m/s
- a max. (acceleration)
- 40 m/s²
- e-skin® flat temperature
- -10°C to +80°C
- e-skin® flat min. temperature
- -10 °C
- e-skin® flat max. temperature
- 80 °C
- Min. bend radius, e-skin® flat
- 70 mm
- e-skin® flat travel
- 3 m
- Conductor
- Very finely stranded special conductors with an especially soft and bend-resistant design, made of bare copper wires.
- Core insulation
- Mechanically high-quality FEP mixture
- Overall shield
- Bend-resistant braiding made of tinned copper wires. Coverage approx. 70% linear, approx. 90% optical
- Outer film colour
- white
- Nominal voltage
- 300/300V
- Test voltage
- 2000V (according to DIN EN 50395)
- Silicone-free
- Free from silicone which can affect paint adhesion (according to PV 3.10.7 – status 1992)
- REACH
- In accordance with Regulation (EC) No. 1907/2006 (REACH)
- Lead-free
- According to 2011/65/EU (RoHs-II/RoHS-III)
- Cleanroom
- Air Cleanliness Class 1, material/assembly tested by IPA according to ISO 14644-14, report IG 2107-1242
- CE
- According to 2014/35/EU
- UL AWM
- Style 11975, 600 V, 90 °C
- UL verified
- Certificate no. V293650: "The igus 4-year chainflex cable guarantee and service life calculator based on 2 billion test cycles per year“
Standards & Compliance
- HS Code
- 8544.49
Cross References
- OEM-URL https://www.igus.com/product/CFCLEAN7
